23823 (4045) - Toro Directional Drill with Cab (SN: 314000501 - 314999999) (2014) COOLING PACKAGE ASSEMBLY Parts Diagram

Directional Drill with Cab

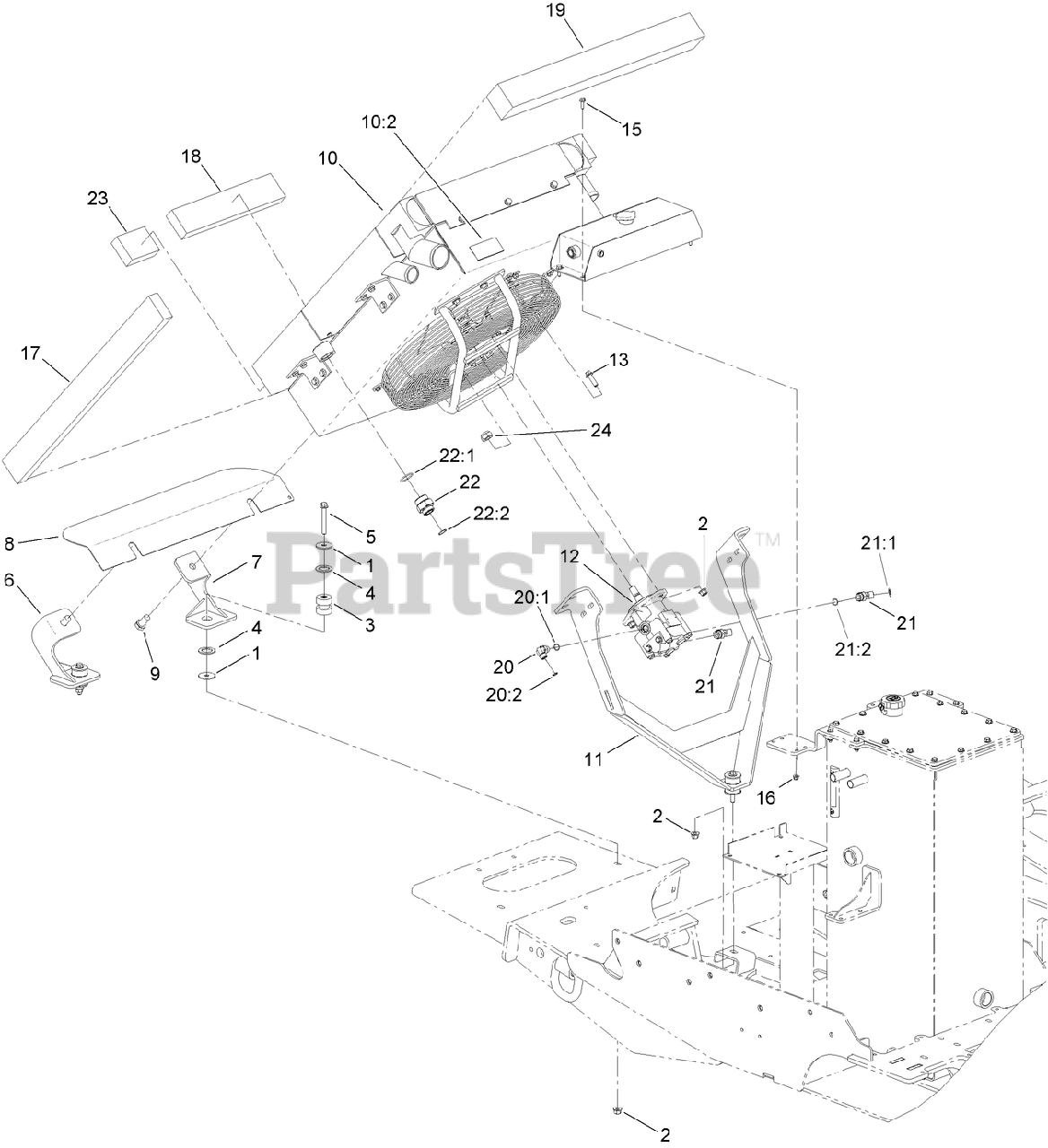

COOLING PACKAGE ASSEMBLY Parts Diagram

  • Title
1

Toro AU496-81018

WASHER-FLAT

$3.99

$

Usually ships in 3-6 days

0

2

Toro 115-1115

NUT-LOCK, HHF

$2.49

$

Usually ships in 3-6 days

0

3

Toro AU8NG28121

ISOLATOR-MOUNTING, UNIVERSAL

$

$

Currently unavailable

4

$22.99

$

Usually ships in 3-6 days

0

5

Toro 33106-090

SCREW-HHF

$4.49

$

Usually ships in 3-6 days

0

6

Toro AU130574-03

SUPPORT-ISOLATOR, LH

$

$

Currently unavailable

7

Toro AU130567-03

SUPPORT-ISOLATOR, RH

$

$

Currently unavailable

8

Toro AU130581-03

PLATE-SEAL, REAR HOOD

$

$

Currently unavailable

$

$

Not available

10

Toro 127-0943

COOLING ASM

$

$

Currently unavailable

10:2

Toro 125-6127

DECAL-ROTATING FAN HAZARD

$

$

Currently unavailable

11

Toro 125-6585-03

ISOLATOR-SUPPORT

$

$

Currently unavailable

12

Toro AU118007

HYD MOTOR ASM

$

$

Currently unavailable

13

Toro 33106-040

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

15

Toro 33104-025

SCREW-HHF

$7.49

$

In Stock, only 2 left!

0

16

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

17

Toro AU130577

FOAM-POLYURETHANE

$

$

Currently unavailable

18

Toro AU130647

FOAM-POLYURETHANE

$

$

Currently unavailable

19

Toro AU124069

FOAM-POLYURETHANE

$

$

Currently unavailable

20

Toro 340-98

FITTING-ELBOW-90 DEG

$32.99

$

In Stock, only 2 left!

0

20:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 13

0

20:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

21

Toro 340-89

FITTING-HYD, 45 DEG

$43.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

21:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 9

0

22

Toro 340-80

FITTING-STR

$73.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-101

O-RING

$3.99

$

In Stock, only 1 left!

0

22:2

Toro 340-65

O-RING

$4.99

$

In Stock, Qty 6

0

23

Toro 127-0978

FOAM-POLYURETHANE

$

$

Currently unavailable

24

Toro 3296-67

NUT-LOCK, NI

$5.49

$

In Stock, Qty 7

0
