23823 (4045) - Toro Directional Drill with Cab (SN: 314000501 - 314999999) (2014) CARRIAGE GUARD AND MOUNTING ASSEMBLY Parts Diagram

Directional Drill with Cab

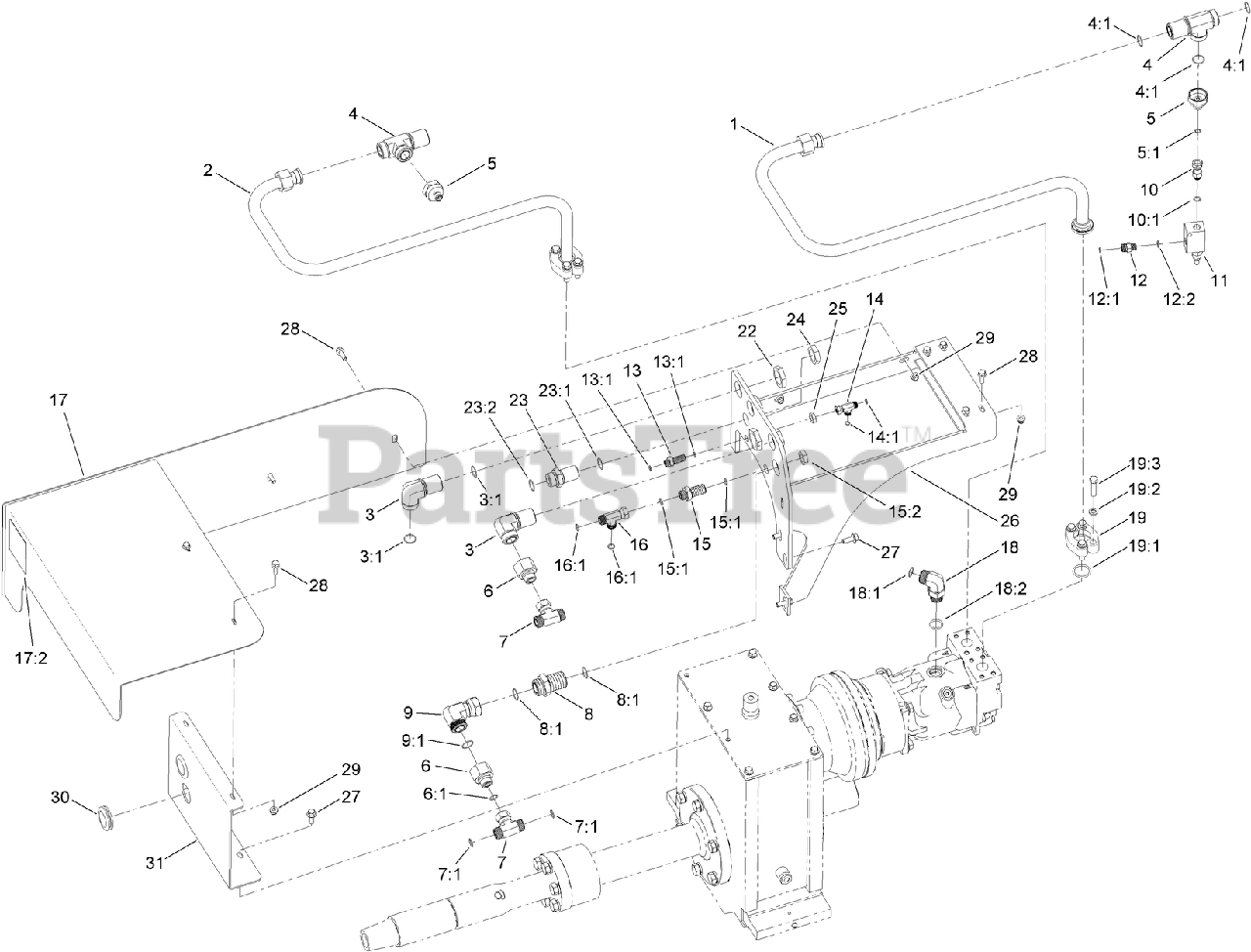

CARRIAGE GUARD AND MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro AU119407

TUBE-HYD, ROTARY B (BULKHEAD TO MOTOR)

$

$

Currently unavailable

2

Toro AU119408

TUBE-HYD, ROTARY A (BULKHEAD TO MOTOR)

$

$

Currently unavailable

3

Toro AU8OL91616

FITTING-ELBOW, 90

$

$

Not available

3:1

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

4

Toro AU8OR91616

FITTING-TEE, BULKHEAD

$

$

Currently unavailable

4:1

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

5

Toro AU8OA80616

FITTING-REDUCER

$

$

Not available

5:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

6

Toro AU8OA81016

FITTING-REDUCER

$

$

Currently unavailable

6:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 20+

0

7

Toro 340-167

FITTING-HYD, TEE

$133.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 20+

0

8

Toro 106-0060

ADAPTER-HYD

$122.99

$

Usually ships in 3-6 days

0

8:1

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

9

Toro 92-7645

FITTING-SWIVEL, 90 DEG

$58.99

$

Usually ships in 3-6 days

0

9:1

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

10

Toro 104-3779

CONNECTOR-SWIVEL, STRAIGHT

$32.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

11

Toro AU8HV61011

VALVE-RELIEF, PRESSURE

$

$

Currently unavailable

12

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

12:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

12:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

13

Toro 94-1444

UNION-BULKHEAD

$51.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

14

Toro 340-151

FITTING-HYD

$111.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-75

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 5

0

15

Toro 340-161

FITTING-BULKHEAD

$123.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

15:2

Toro 340-127

NUT-BULKHEAD

$7.49

$

Usually ships in 3-6 days

0

16

Toro 340-104

FITTING-HYD, TEE

$127.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

17

Toro 130-4501

CARRIAGE GUARD ASM

$

$

Currently unavailable

17:2

Toro 125-6107

DECAL-WARNING, CRUSHING

$

$

Currently unavailable

18

Toro 340-142

FITTING-ELBOW-90

$100.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

18:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

19

Toro AU114285A1

HYD FLANGE KIT

$83.99

$

Usually ships in 3-6 days

0

19:1

Toro 121-3904

O-RING

$7.49

$

Usually ships in 3-6 days

0

19:2

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19:3

Toro AU113-372

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

22

Toro 340-128

NUT-BULKHEAD

$8.99

$

Usually ships in 3-6 days

0

23

Toro AU8OA91212

FITTING-STRAIGHT

$

$

Currently unavailable

23:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

23:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

24

Toro 340-126

NUT-BULKHEAD

$7.99

$

Usually ships in 3-6 days

0

25

Toro 340-78

NUT-LOCK

$2.99

$

Usually ships in 3-6 days

0

26

Toro AU118010-03

MOUNT-HOSE CARRIER, ROTARY

$

$

Currently unavailable

27

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

28

Toro 33104-025

SCREW-HHF

$7.99

$

In Stock, only 2 left!

0

29

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

30

Toro 103-7706

Grommet

$5.49

$

Usually ships in 3-6 days

0

31

Toro AU119009-03

PLATE-SUPPORT, GUARD

$

$

Currently unavailable
