23823 (4045) - Toro Directional Drill with Cab (SN: 314000001 - 314000500) (2014) HYDRAULIC PUMP ASSEMBLY Parts Diagram

Directional Drill with Cab

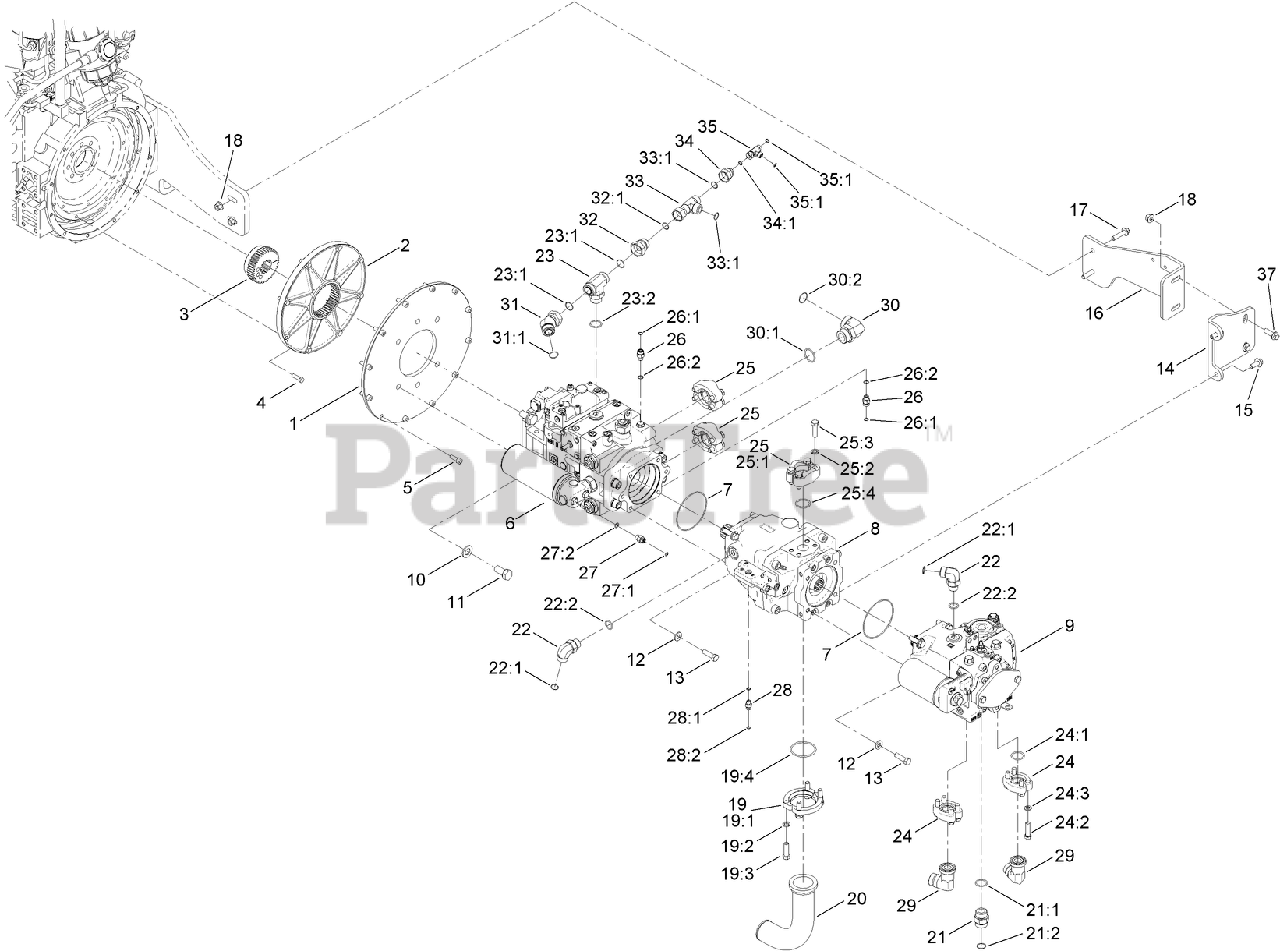

HYDRAULIC PUMP ASSEMBLY Parts Diagram

  • Title

1

Toro AU116050

PLATE-MOUNT, PUMP

$

$

Currently unavailable

2

Toro AU8PD92006

COUPLING-DRIVE, NYLON

$

$

Currently unavailable

3

Toro AU8PD92007

HUB-STEEL, 13T

$

$

Currently unavailable

4

Toro 323-44

SCREW-HH

$5.49

$

In Stock, Qty 11

0

5

Toro AU862-10030

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

6

Toro AU116307

ROTARY PUMP ASM

$

$

Not available

7

Toro AU70-9004104-158

SEAL-O RING

$

$

Currently unavailable

8

Toro AU116306

LOAD-SENSE PUMP ASM

$

$

Currently unavailable

9

Toro AU116314

HYDROSTAT PUMP ASM

$

$

Currently unavailable

10

Toro AU496-11081

WASHER

$0.99

$

Usually ships in 3-6 days

0

11

Toro AU426-1224

BOLT

$

$

Not available

12

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

13

Toro 121-1524

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

14

Toro AU116261-03

BRACKET-MOUNTING, PUMP

$

$

Currently unavailable

15

Toro 33106-030

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

16

Toro AU117689-03

BRACKET-MOUNTING, CENTER

$

$

Currently unavailable

17

Toro 33106-050

SCREW-HHF

$

$

Currently unavailable

18

Toro 115-1115

NUT-LOCK, HHF

$2.49

$

In Stock, only 2 left!

0

19

Toro AU91-FF593-40

SPLIT FLANGE KIT

$

$

Currently unavailable

19:1

Flange

Note: Not serviced separately

$

$

Not available

19:2

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

19:3

Toro 121-1524

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

19:4

Toro 127-0980

O-RING

$

$

Currently unavailable

20

Toro AU121324

TUBE-BENT

$

$

Currently unavailable

21

Toro 104-3797

FITTING-STRAIGHT

$43.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

21:2

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

22

Toro 340-142

FITTING-ELBOW-90

$95.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

22:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

23

Toro 104-7501

FITTING-HYD

$228.99

$

Usually ships in 3-6 days

0

23:1

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

23:2

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

24

Toro 121-3903

FLANGE KIT

$246.99

$

Usually ships in 3-6 days

0

24:1

Toro 121-3904

O-RING

$7.49

$

Usually ships in 3-6 days

0

24:2

Toro 33116-045

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

24:3

Toro 48-8070

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

25

Toro AU8TS46220

SPLIT FLANGE KIT

$

$

Currently unavailable

25:1

FLANGE-HALF

Note: Not serviced separately

$

$

Not available

25:2

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

25:3

Toro 325-7

SCREW-HH

$1.99

$

In Stock, Qty 5

0

25:4

Toro 115-5420

O-RING

$14.99

$

Usually ships in 3-6 days

0

26

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

26:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

26:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

27

Toro 340-1

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

27:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

27:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

28

Toro 340-92

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

0

28:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

28:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

29

Toro AU126488

ELBOW-90

$

$

Currently unavailable

30

Toro 340-52

FITTING-ELBOW 90

$122.99

$

Usually ships in 3-6 days

0

30:1

Toro 237-101

O-RING

$4.49

$

In Stock, only 1 left!

0

30:2

Toro 340-64

O-RING

$6.49

$

Usually ships in 3-6 days

0

31

Toro AU8OE81616

FITTING-ELBOW, 45

$

$

Currently unavailable

31:1

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

32

Toro AU8OA81216

FITTING-REDUCER

$

$

Currently unavailable

32:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

33

Toro AU8OR81212

FITTING-TEE

$

$

Currently unavailable

33:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

34

Toro AU8OA80612

FITTING-REDUCER

$

$

Not available

34:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

35

Toro 340-115

FITTING-TEE, SWIVEL NUT

$67.99

$

Usually ships in 3-6 days

0

35:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

37

Toro 33106-040

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0
