23823 (4045) - Toro Directional Drill with Cab (SN: 314000001 - 314000500) (2014) FRONT HOOD ASSEMBLY NO. AU115517 Parts Diagram

Directional Drill with Cab

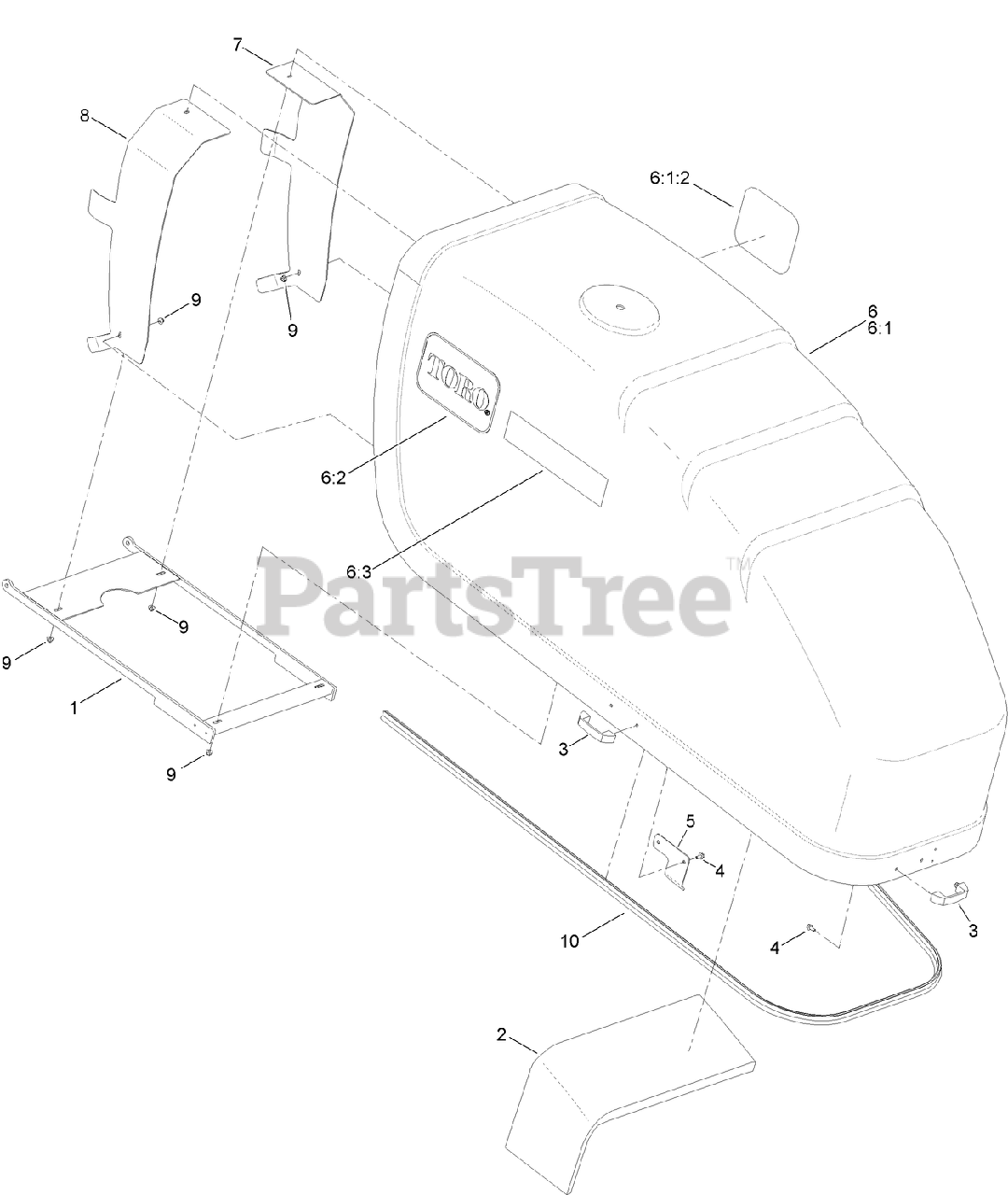

FRONT HOOD ASSEMBLY NO. AU115517 Parts Diagram

  • Title
1

Toro AU118730

HINGE-HOOD, FRONT

$

$

Currently unavailable

2

Toro 127-0955

FOAM-HOOD, REFLECTIVE

$

$

Currently unavailable

3

Toro AU104854

HANDLE-GRAB

$37.99

$

Usually ships in 3-6 days

0

4

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 3 left!

0

5

Toro AU121776

GUIDE-HOOD, FRONT

$

$

Currently unavailable

6

Toro 127-0936

FRONT HOOD AND DECAL ASM

$

$

Currently unavailable

6:1

HOOD-FRONT

Note: Not serviced separately

$

$

Not available

6:1:2

Toro 130-4496

SCREEN-HOOD, FRONT

$

$

Currently unavailable

6:2

$51.99

$

Usually ships in 3-6 days

0

6:3

$

$

Currently unavailable

7

Toro AU123306-03

PLATE-CATCH, HOOD

$

$

Currently unavailable

8

Toro AU123307-03

PLATE-CATCH, HOOD

$

$

Currently unavailable

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 127-5303

SEAL-BULB

$

$

Currently unavailable
