23823 (4045) - Toro Directional Drill with Cab (SN: 314000001 - 314000500) (2014) ELECTRICAL ASSEMBLY Parts Diagram

Directional Drill with Cab

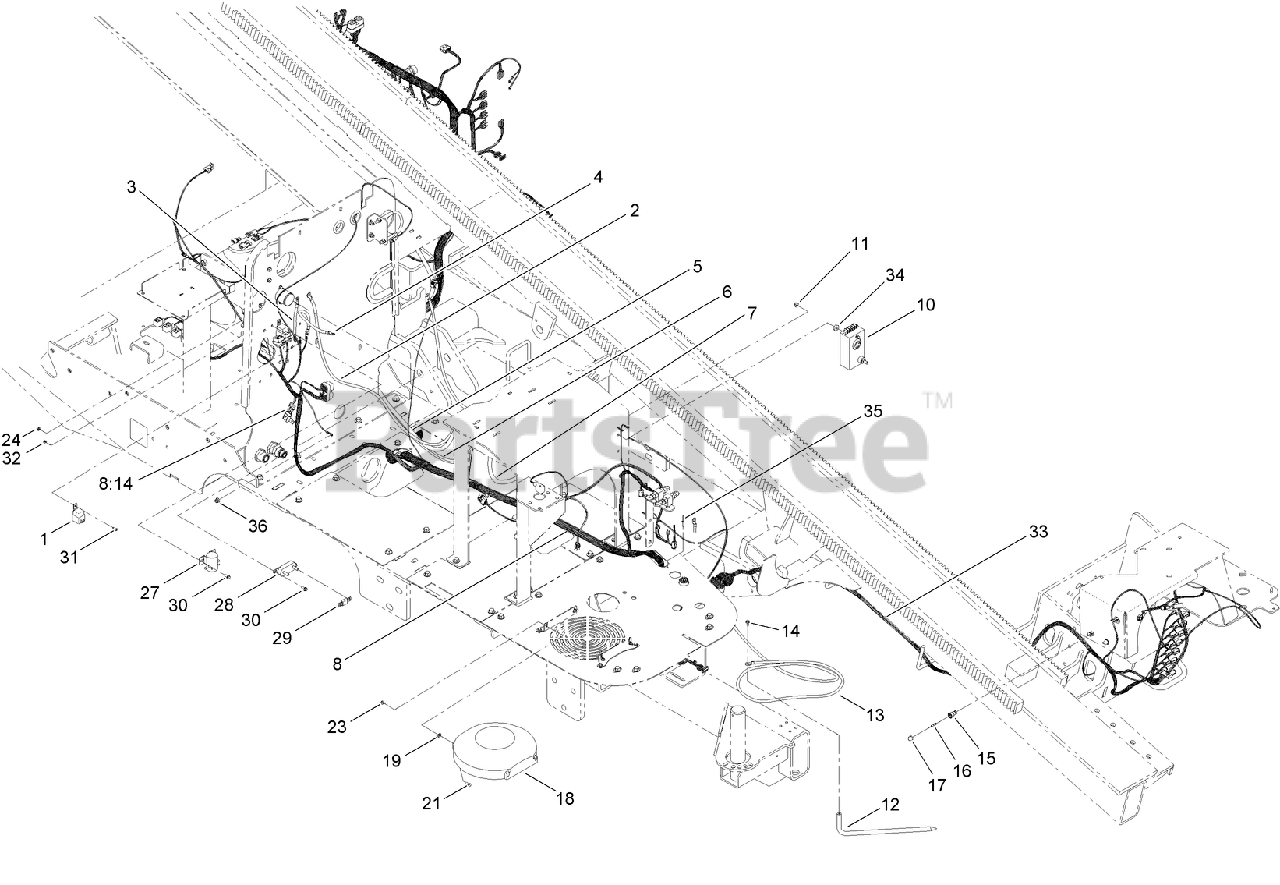

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 99-7430

RELAY

$25.99

$

In Stock, only 1 left!

0

2

Toro 122-0219

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

3

Toro 122-0103

CABLE-BATTERY, POSITIVE

$39.99

$

Usually ships in 3-6 days

0

4

Toro 122-0104

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

5

Toro 122-0093

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

6

Toro 122-0094

CABLE-BATTERY, NEGATIVE

$

$

Currently unavailable

7

Toro 122-0095

CABLE-BATTERY, NEGATIVE

$81.99

$

Usually ships in 3-6 days

0

8

Toro 122-0063

HARNESS-WIRE, MAIN

$

$

Currently unavailable

8:14

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

8:16

Toro 32180-043

RESISTOR-120 OHM

Note: Not illustrated

$28.99

$

Usually ships in 3-6 days

0

8:34

Toro 109103

FUSE-BLADE, 30 AMP

Note: Not illustrated

$6.99

$

In Stock, Qty 6

0

10

Toro AU8EE27103

RELAY

$

$

Currently unavailable

11

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro AU109224

BAR-STAKE, GROUND

$

$

Currently unavailable

13

Toro AU124406

CABLE-ALERT, STRIKE

$

$

Currently unavailable

14

Toro 114-8414

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

15

Toro AU8EO21401

TYPE T-2 SOCKET ASM

$

$

Currently unavailable

16

Toro 122-0224

LAMP-LED

$

$

Currently unavailable

17

Toro AU8EO21403

LENS-DOME, FLUTED GREEN (TYPE T2)

$

$

Currently unavailable

18

Toro 122-0210

FAN-ELECTRIC

$466.99

$

Usually ships in 3-6 days

0

19

Toro 120-9679

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

21

Toro 33113-020

SCREW-HH

$0.99

$

In Stock, Qty 10

0

23

Toro 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

24

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

27

Toro AU126234

SOLENOID-RELAY 12V, 300A

$

$

Currently unavailable

28

Toro AU126233

HOLDER-FUSE

$

$

Currently unavailable

29

Toro AU126232

FUSE-100A

$17.99

$

Usually ships in 3-6 days

0

30

Toro 33103-016

SCREW-HHF

$6.49

$

In Stock, Qty 12

0

31

Toro 119-7568

SCREW-HSBH

$2.49

$

Usually ships in 3-6 days

0

32

Toro 120-4580

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

33

Toro 122-0064

HARNESS-WIRE, THRUST FRAME

$

$

Currently unavailable

33:1

Toro 110928

FUSE-BLADE, 5 AMP

Note: Not illustrated

$8.49

$

Usually ships in 3-6 days

0

34

Toro 26-4840

SPACER-PIN, MOUNTING

$6.99

$

Usually ships in 3-6 days

0

35

Toro 3269-28

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

36

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

99

Toro AU8EE27104

TESTER-ZAPALERT

Note: Not illustrated

$

$

Currently unavailable
