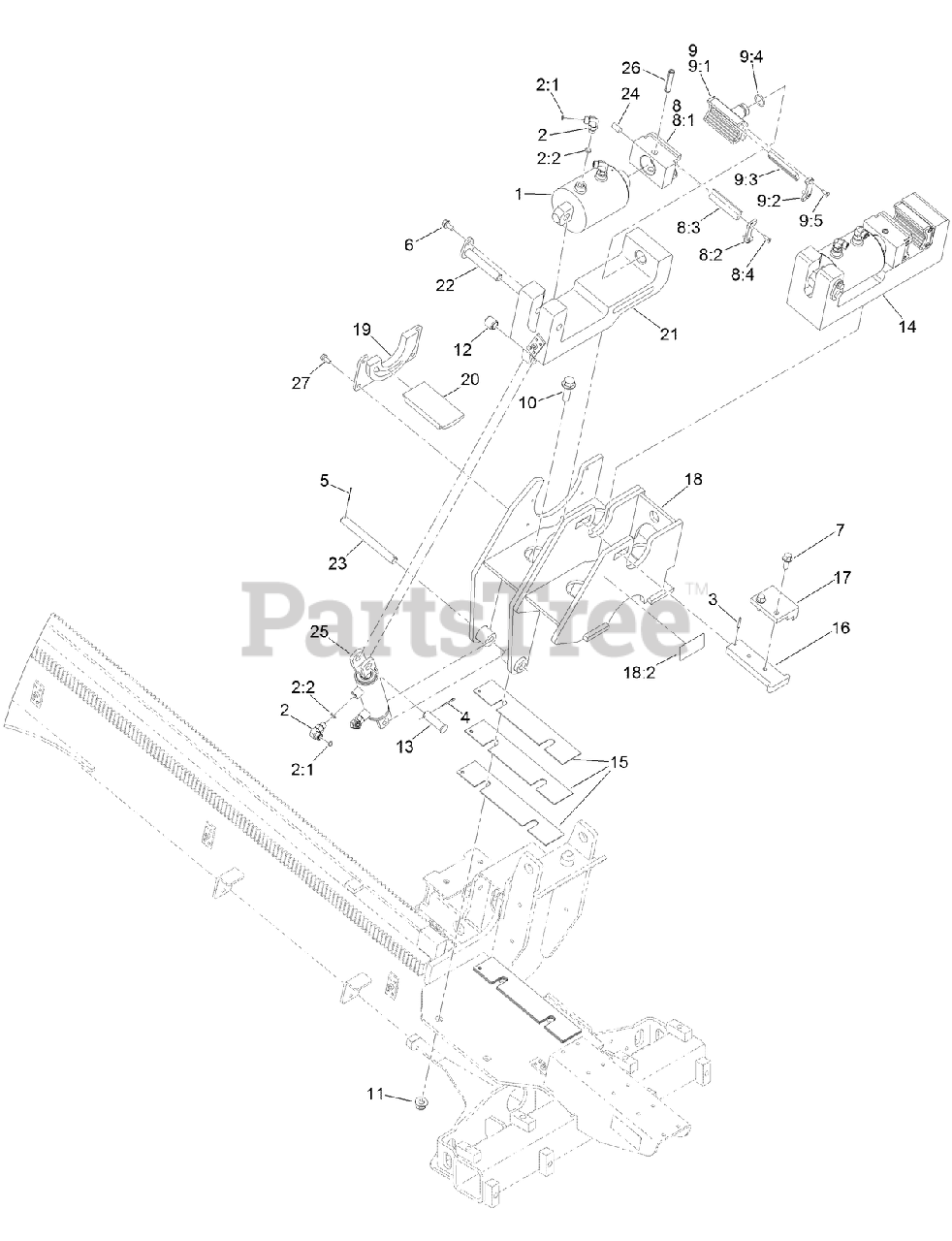

23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Wrench Assembly Parts Diagram

Directional Drill

Wrench Assembly Parts Diagram

  • Title
1

Toro 136-6918

HYD CYLINDER ASM

$

$

Currently unavailable

2

Toro 340-77

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

2:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

3

Toro 3212-16

SCREW-HH

$19.99

$

In Stock, Qty 12

0

4

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

5

Toro 3272-42

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

6

Toro 323-41

DISCONTINUED

$1.99

$

In Stock, Qty 14

0

7

Toro 3234-15

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

8

Toro AU12GB6020

MOVING DIE HOLDER ASM

$

$

Currently unavailable

8:1

Toro AU12GB6021

HOLDER-DIE, MOVING

$

$

Currently unavailable

8:2

Toro AU12GB6027

RETAINER-DIE

$

$

Currently unavailable

8:3

Toro AU12GB6036

TONG-DIE

$

$

Currently unavailable

8:4

Toro 3289-4

SCREW-FH

$4.49

$

Usually ships in 3-6 days

0

9

Toro AU12GB6025

FIXED DIE HOLDER ASM

$

$

Not available

9:1

Toro AU12GB6026

HOLDER-DIE, FIXED

$

$

Not available

9:2

Toro AU12GB6027

RETAINER-DIE

$

$

Currently unavailable

9:3

Toro AU12GB6036

TONG-DIE

$

$

Currently unavailable

9:4

Toro AU8HS51214

SEAL, O-RING

$

$

Currently unavailable

9:5

Toro 3289-4

SCREW-FH

$4.49

$

Usually ships in 3-6 days

0

10

$17.99

$

Usually ships in 3-6 days

0

11

Toro 133-9681

NUT-HF

$4.99

$

Usually ships in 3-6 days

0

12

Toro AU109676

BUSHING-SPRING

$

$

Currently unavailable

13

Toro AU109885

PIN-CLEVIS

$

$

Currently unavailable

14

Toro 133-9661-03

BASE-FIXED CLAMP

$

$

Currently unavailable

15

Toro AU112270-03

PLATE-SHIM

$

$

Not available

16

Toro 133-9664-03

PIN-RETAINING

$

$

Currently unavailable

17

Toro 133-9660-03

BLOCK-STOP, CYLINDER

$

$

Currently unavailable

18

Toro 138-1264

WRENCH ASM

$

$

Currently unavailable

18:2

Toro 125-6119

DECAL-DANGER

$15.99

$

Usually ships in 3-6 days

0

19

Toro AU12GB6010-03

RETAINER-PIVOT KEY, WRENCH

$

$

Not available

20

Toro AU12GB6014

KEY-PIVOT, WRENCH

$

$

Currently unavailable

21

Toro 133-9663-03

BASE-WRENCH

$

$

Currently unavailable

22

Toro 133-9669

PIN-FLAG

$

$

Currently unavailable

23

Toro AU12GB6057

PIN-CYLINDER

$

$

Currently unavailable

24

Toro AU8CT61601

PIN-DOWEL

$

$

Currently unavailable

25

Toro 132-5740

CYLINDER-HYDRAULIC

$

$

Currently unavailable

26

Toro AU12GB6056

PIN-SPRING

$

$

Currently unavailable

27

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0
