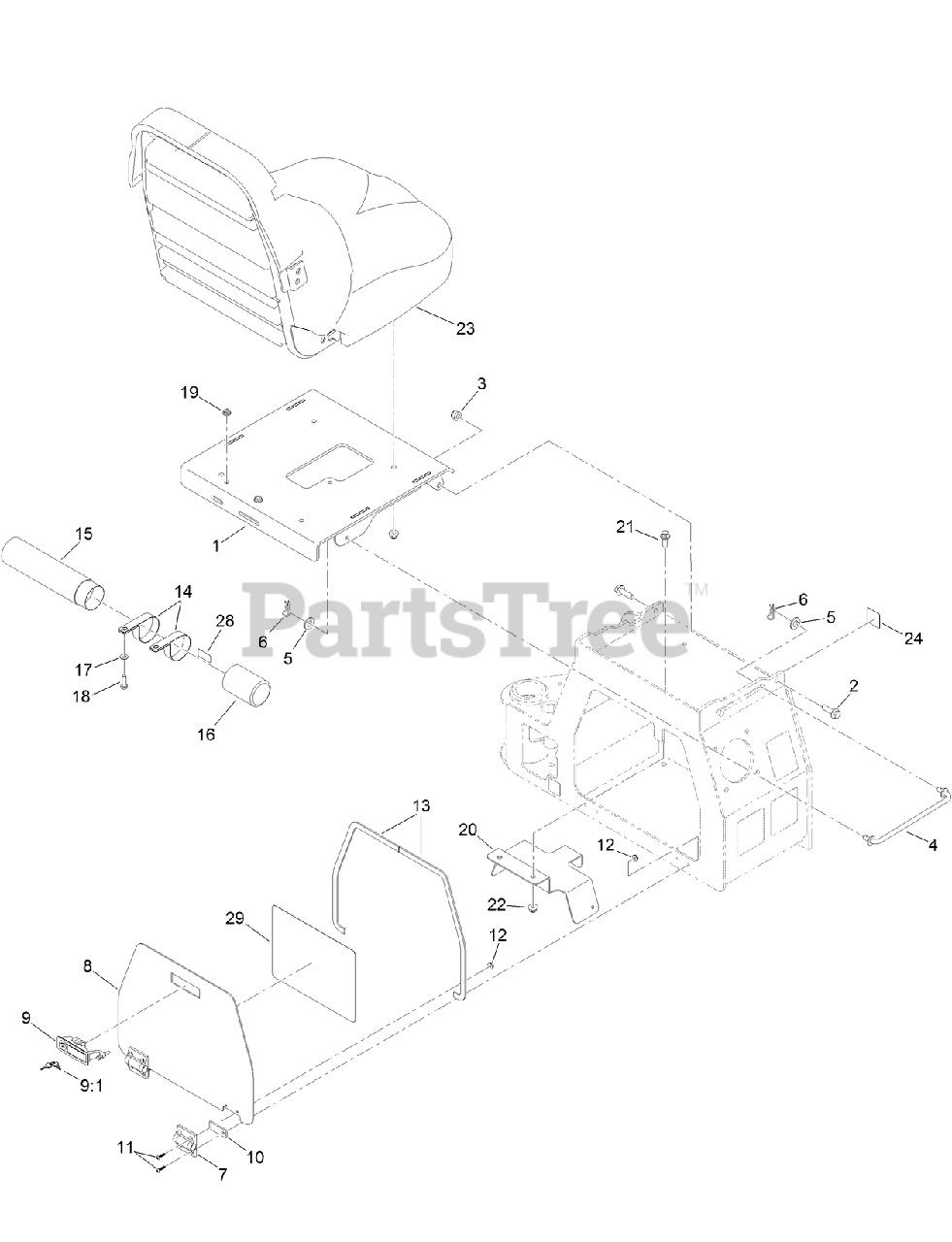

23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Seat Assembly Parts Diagram

Directional Drill

Seat Assembly Parts Diagram

  • Title

1

Toro 137-5221-03

BASE-SEAT

$

$

Currently unavailable

2

Toro 33105-035

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

3

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

4

Toro AU109357

ROD-PROP, SEAT

$

$

Currently unavailable

5

Toro 108-1438

WASHER-HARDENED

$2.99

$

Usually ships in 3-6 days

0

6

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 5

0

7

Toro AU123695

HINGE

$

$

Currently unavailable

8

Toro 136-8859-01

DOOR-STORAGE, CONSOLE

$

$

Currently unavailable

9

Toro AU50GB2302

LATCH-TRIGGER, RAISED (W/LOCK)

$

$

Not available

9:1

Toro 131-0148

KEY-REPLACEMENT

Note: Not illustrated

$

$

Currently unavailable

10

Toro 137-5224

SPACER-HINGE

$

$

Currently unavailable

11

Toro 360-0137

SCREW-PRH

$0.99

$

Usually ships in 3-6 days

0

12

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

13

Toro 131-2289

FOAM-RADIATOR

$13.99

$

Usually ships in 3-6 days

0

14

Toro 2412-133

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

15

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

16

Toro 104-7048

CAP-HOUSING

$5.99

$

Usually ships in 3-6 days

0

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 122-0883-01

BRACKET-MOUNTING, HARNESS

$

$

Currently unavailable

21

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

22

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 137-1806

SEAT

$

$

Currently unavailable

24

Toro 125-6152

DECAL-SEAT SLIDE

$

$

Currently unavailable

28

Toro 119-2156

PRODUCTION YEAR DECAL PHANTOM

$

$

Currently unavailable

29

Toro 137-7183

DECAL-SERVICE

$

$

Currently unavailable
