23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Rear Hood Assembly No. 133-9540 Parts Diagram

Directional Drill

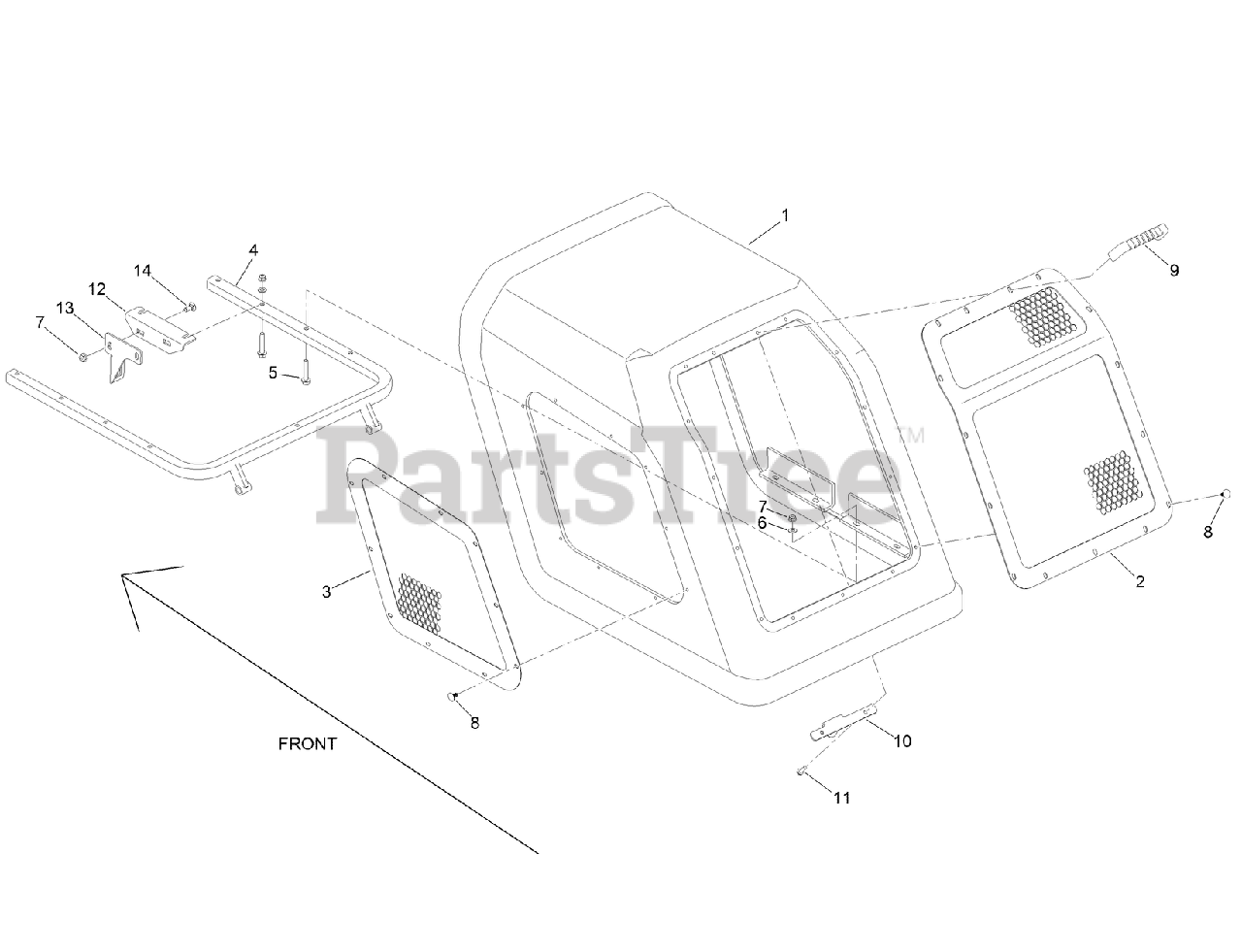

Rear Hood Assembly No. 133-9540 Parts Diagram

  • Title
1

Toro 137-1794

HOOD-REAR

$

$

Currently unavailable

2

Toro 133-9549-03

SCREEN-REAR

$

$

Currently unavailable

3

Toro 133-9570-03

SCREEN-SIDE

$

$

Currently unavailable

4

Toro 138-1346-03

FRAME-HOOD, REAR

$

$

Currently unavailable

5

Toro 94-5780

SCREW-HWH

$8.49

$

In Stock, only 2 left!

0

6

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 8

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 117-2382

PLUG-PLASTIC

$0.99

$

In Stock, Qty 20+

0

9

Toro 65-5100

HANDLE-DOOR

$9.99

$

In Stock, only 2 left!

0

10

Toro 137-1804-03

PLATE-HANDLE, REAR HOOD

$

$

Currently unavailable

11

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

12

Toro 138-1324-03

BRACKET-MOUNT, REAR CATCH

$

$

Currently unavailable

13

Toro 138-1325

BRACKET-CATCH, REAR

$

$

Currently unavailable

14

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0
