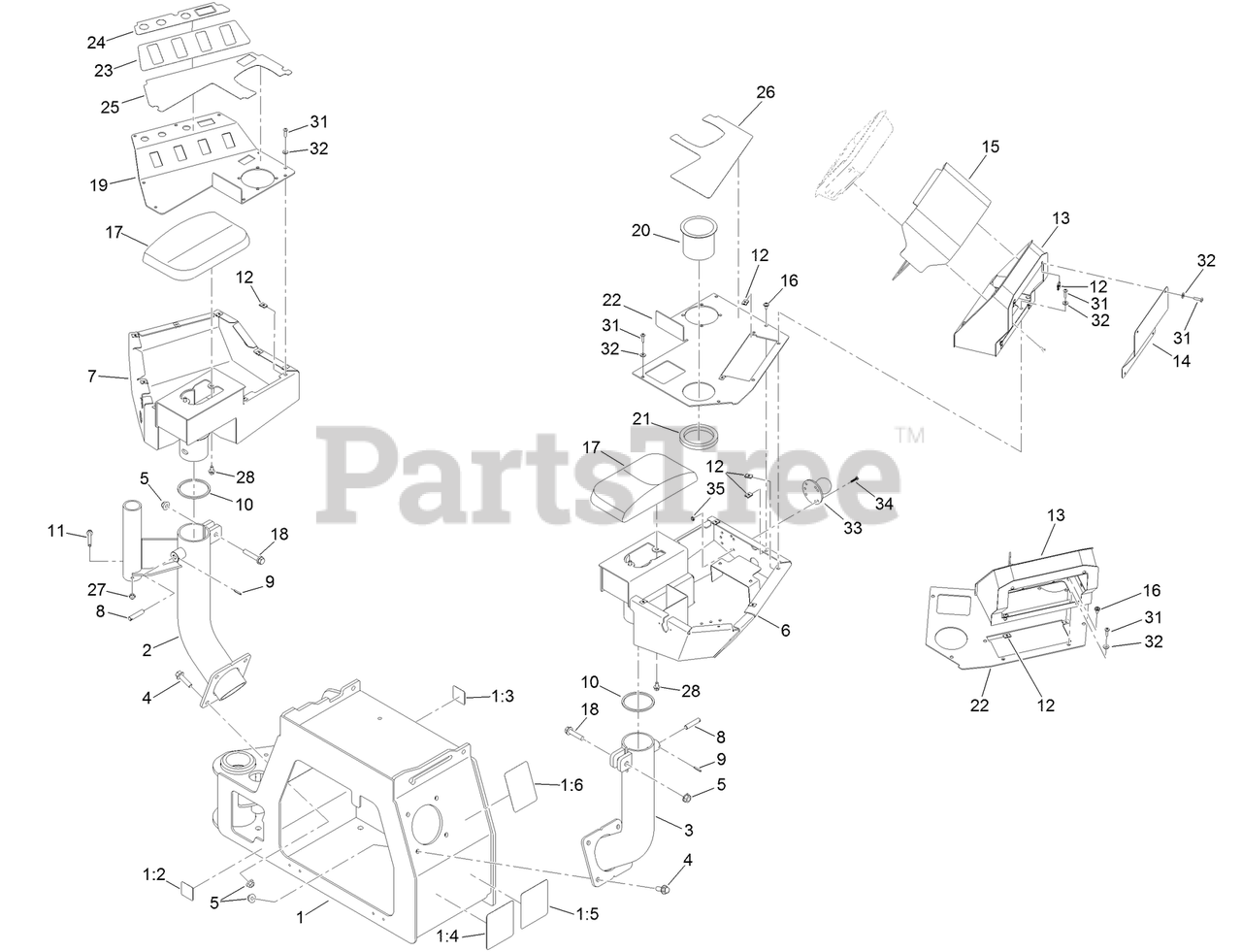

23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Operator Platform Assembly Parts Diagram

Directional Drill

Operator Platform Assembly Parts Diagram

  • Title

1

Toro 138-1265

OPERATOR CONSOLE ASM

$

$

Currently unavailable

1:2

Toro 125-6140

DECAL-SEAT ADJUST

$

$

Currently unavailable

1:3

Toro 137-7175

DECAL-SEAT ADJUST

$

$

Currently unavailable

1:4

Toro 137-7168

DECAL-DANGER, SHOCK

$

$

Currently unavailable

1:5

Toro 137-7171

DECAL-DANGER, NO RIDERS (FRONT)

$

$

Currently unavailable

1:6

Toro 137-7172

DECAL-DANGER, BACK UP

$

$

Currently unavailable

2

Toro 136-8869-01

ARM-CONSOLE, LH

$

$

Currently unavailable

3

Toro 136-8866-01

ARM-CONSOLE, RH

$

$

Currently unavailable

4

Toro 119-4061

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 136-8888-03

CONSOLE-RH

$

$

Not available

7

Toro 136-8889-03

CONSOLE-LH

$

$

Not available

8

Toro 136-8933

PIN-W/CROSS HOLE

$

$

Currently unavailable

9

Toro 3212-18

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

10

Toro 136-8890

RING-WEAR, CONSOLE ARM

$

$

Currently unavailable

11

Toro 3234-34

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

12

Toro 107-1013

NUT-SPEED

$3.49

$

In Stock, only 2 left!

0

13

Toro 137-1700-03

COVER-DISPLAY

$

$

Currently unavailable

14

Toro 136-8894-03

PLATE-BOTTOM ARM, RH

$

$

Currently unavailable

15

Toro 137-8387-03

VISOR-DISPLAY

$

$

Currently unavailable

16

Toro 109-2661

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

17

Toro 137-5207

PAD-ARM

$

$

Currently unavailable

18

Toro 108-3742

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

19

Toro 136-8910-03

PLATE-CONSOLE TOP, LH

$

$

Currently unavailable

20

Toro 94-1410

HOLDER-CAN, BEVERAGE

$7.49

$

Usually ships in 3-6 days

0

21

Toro 104-1476

RING-RUBBER

$22.99

$

Usually ships in 3-6 days

0

22

Toro 137-1701-03

PLATE-CONSOLE SIDE, RH

$

$

Currently unavailable

23

Toro 125-6193

DECAL-CONTROL SWITCHES

$

$

Currently unavailable

24

Toro 125-6194

DECAL-CONTROL INDICATORS

$

$

Currently unavailable

25

Toro 137-7176

DECAL-LEFT JOYSTICK

$

$

Currently unavailable

26

Toro 137-7177

DECAL-RIGHT JOYSTICK

$

$

Currently unavailable

27

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

31

Toro 3250-13

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

32

Toro 3256-77

WASHER-FLAT

$2.49

$

In Stock, only 2 left!

0

33

Toro 138-1267

MOUNT-RAM (2-1/2 DIA BASE W/1.5)

$

$

Currently unavailable

34

Toro 363-6530

SCREW-PHPH SST

$

$

Currently unavailable

35

Toro 3296-54

NUT-LOCK

$5.49

$

Usually ships in 3-6 days

0

99

Toro 138-1254

COVER-CONSOLE, RH

Note: Not illustrated

$

$

Currently unavailable

99

Toro 138-1255

COVER-CONSOLE, LH

Note: Not illustrated

$

$

Currently unavailable
