23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Lubrication and Oil System Assembly Parts Diagram

Directional Drill

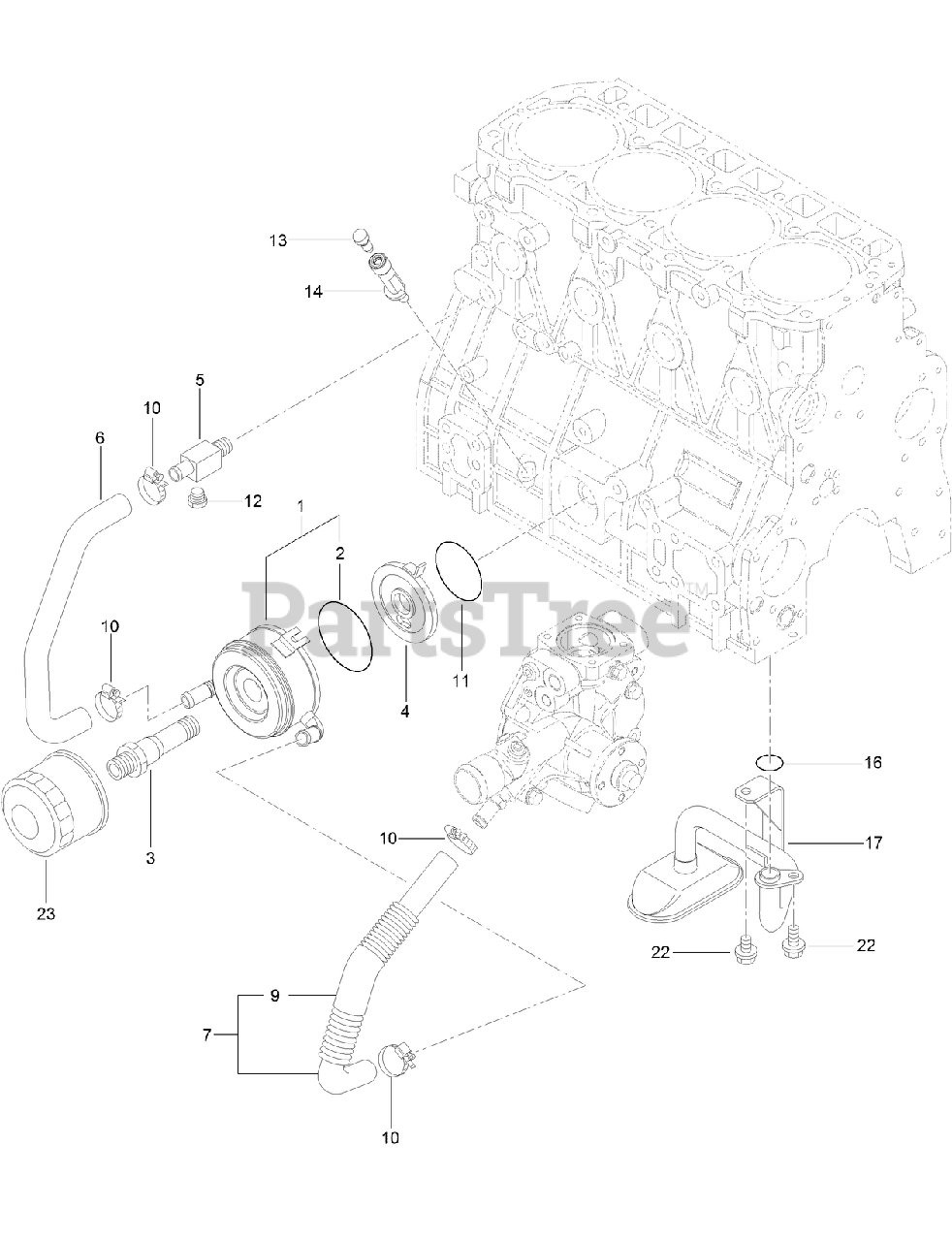

Lubrication and Oil System Assembly Parts Diagram

  • Title
1

Toro 127-3014

COOLER ASM

$1937.99

$

Usually ships in 3-6 days

0

2

Toro 127-2985

O-RING

$10.99

$

Usually ships in 3-6 days

0

3

Toro 133-6622

BOLT-COOLER

$385.99

$

Usually ships in 3-6 days

0

4

Toro 127-3015

BRACKET-COOLER

$

$

Currently unavailable

5

$67.99

$

Usually ships in 3-6 days

0

6

Toro 133-6667

PIPE-WATER

$67.99

$

Usually ships in 3-6 days

0

7

Toro 133-6620

PIPE-WATER

$67.99

$

Usually ships in 3-6 days

0

9

Toro 133-6621

TUBE-CORRUGATED

$29.99

$

Usually ships in 3-6 days

0

10

Toro 125-7188

CLAMP-HOSE

$3.99

$

Usually ships in 3-6 days

0

11

Toro 127-3176

O-RING

$4.49

$

Usually ships in 3-6 days

0

12

Toro 125-7171

PLUG-DRAIN

$23.99

$

Usually ships in 3-6 days

0

13

Toro 137-5132

PLUG-DIPSTICK

$11.99

$

Usually ships in 3-6 days

0

14

Toro 137-5161

GUIDE-DIPSTICK

$188.99

$

Usually ships in 3-6 days

0

16

Toro 133-6653

O-RING

$3.99

$

Usually ships in 3-6 days

0

17

Toro 137-5162

OIL PICKUP TUBE ASM

$382.99

$

Usually ships in 3-6 days

0

22

$3.49

$

Usually ships in 3-6 days

0

23

Toro 125-7025

FILTER-ENGINE

$14.99

$

In Stock, Qty 20+

0
