23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Hydraulic Cylinder Assembly No. 132-5741 Parts Diagram

Directional Drill

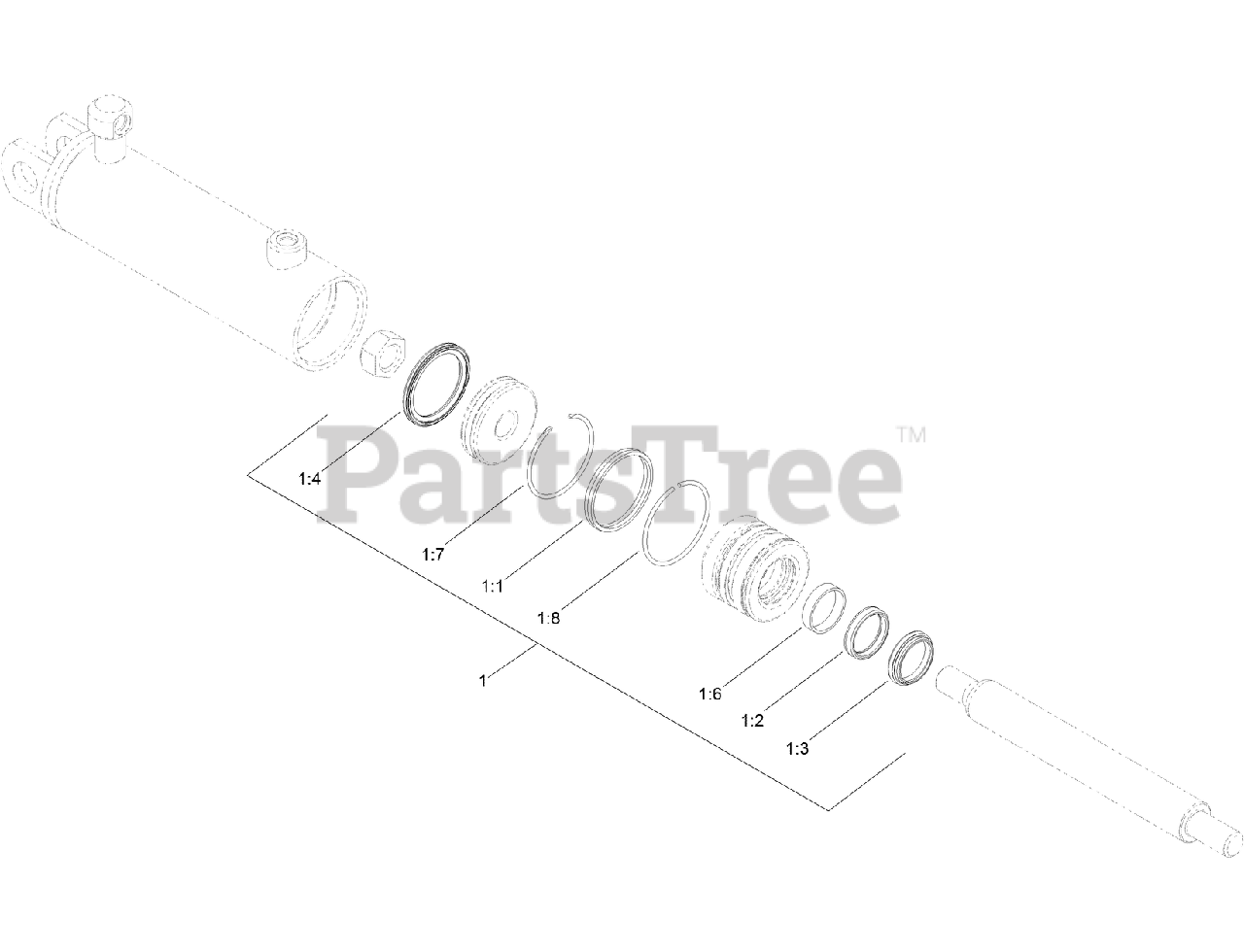

Hydraulic Cylinder Assembly No. 132-5741 Parts Diagram

  • Title

1

Toro 137-1813

SEAL REPAIR KIT

$149.99

$

Usually ships in 3-6 days

0

1:1

SEAL-DUAL

Note: Not serviced separately

$

$

Not available

1:2

Deck ASM

Note: Not serviced separately

$

$

Not available

1:3

Deck ASM

Note: Not serviced separately

$

$

Not available

1:4

Deck ASM

Note: Not serviced separately

$

$

Not available

1:6

RING-WEAR, ROD

Note: Not serviced separately

$

$

Not available

1:7

RING-RETAINING, INTERNAL

Note: Not serviced separately

$

$

Not available

1:8

RING-RETAINING, EXTERNAL

Note: Not serviced separately

$

$

Not available
