23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Fuse Block and Power Disconnect Assembly Parts Diagram

Directional Drill

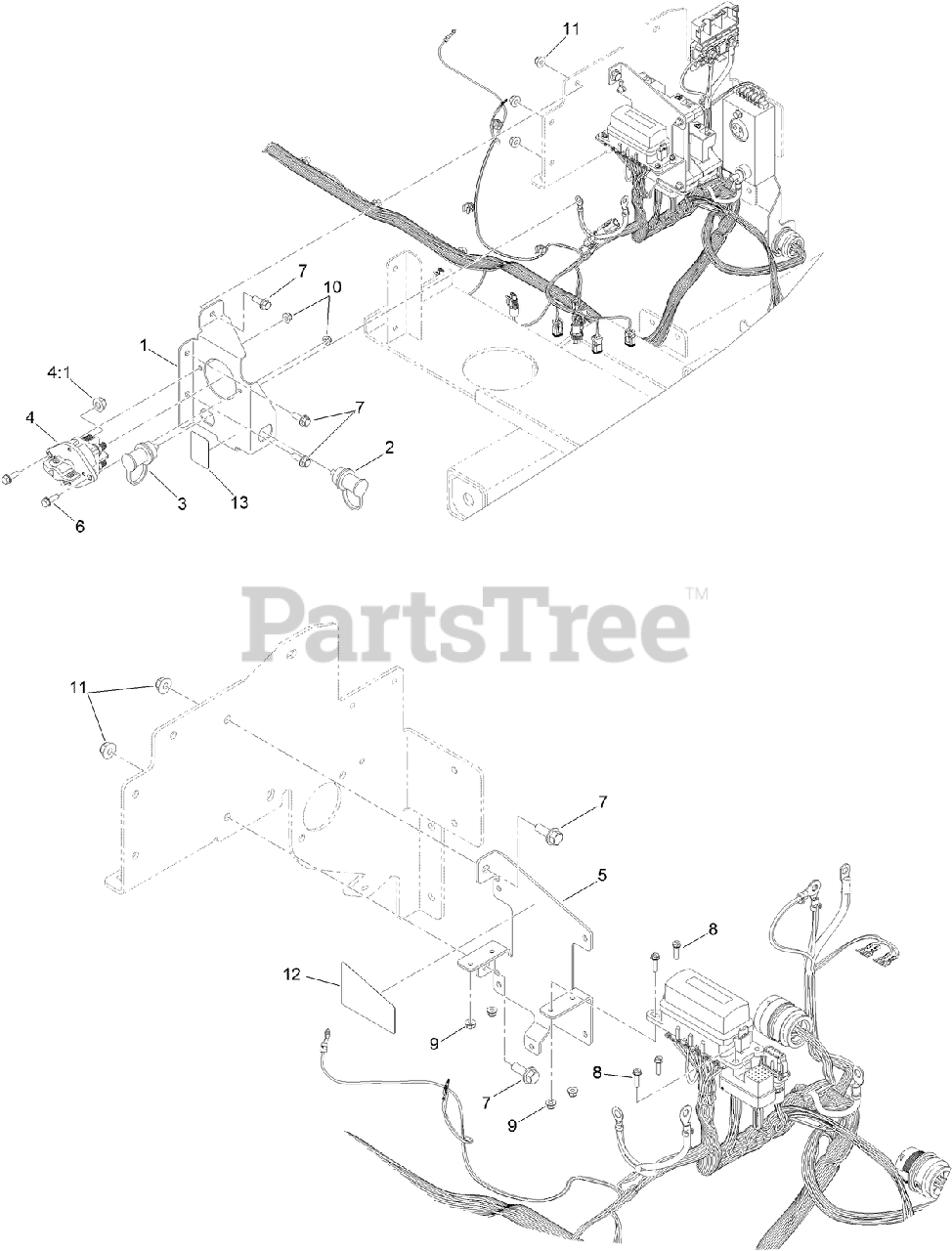

Fuse Block and Power Disconnect Assembly Parts Diagram

  • Title

1

Toro 122-1018-03

BRACKET-ELECTRICAL

$

$

Currently unavailable

2

Toro 132-1364

STUD-JUMPER, POSITIVE

$66.99

$

Usually ships in 3-6 days

0

3

Toro 132-1365

STUD-JUMPER, NEGATIVE

$66.99

$

Usually ships in 3-6 days

0

4

Toro 122-0603

SWITCH-DISCONNECT

$274.99

$

Usually ships in 3-6 days

0

4:1

Toro 33006-00

NUT-HF

$1.99

$

Usually ships in 3-6 days

0

5

Toro 122-1020-03

BRACKET-ELECTRICAL

$

$

Currently unavailable

6

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

7

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

8

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

9

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

10

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 137-7174

DECAL-FUSES

$

$

Currently unavailable

13

Toro 137-7164

DECAL-BATTERY POWER

$19.99

$

Usually ships in 3-6 days

0
