23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Fuel Pipe Assembly Parts Diagram

Directional Drill

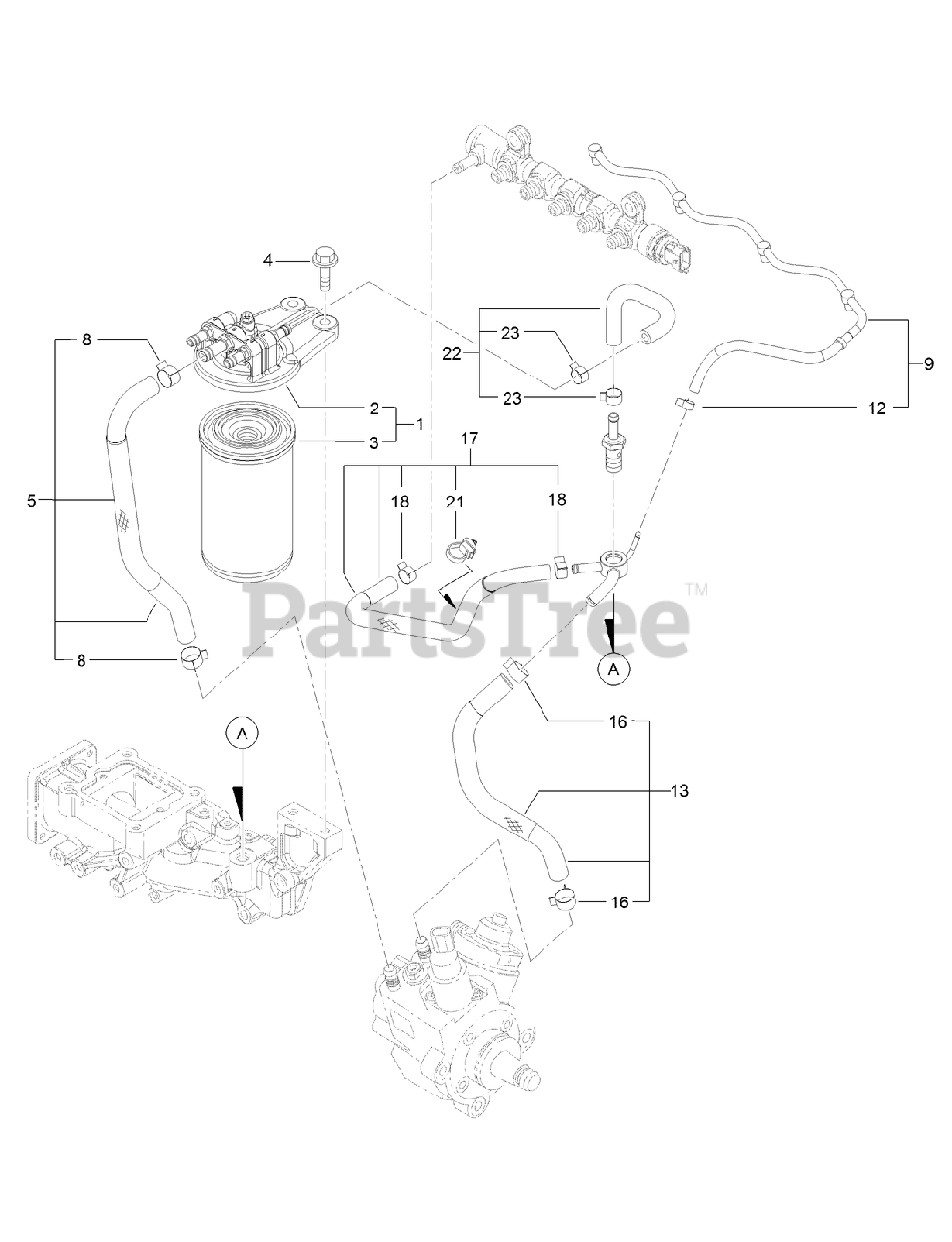

Fuel Pipe Assembly Parts Diagram

  • Title

1

Toro 127-3075

FUEL/OIL FILTER ASM

$275.99

$

Usually ships in 3-6 days

0

2

Toro 127-3076

FUEL/OIL FILTER BRACKET ASM

$119.99

$

Usually ships in 3-6 days

0

3

Toro 125-8752

FILTER-FUEL/OIL

$103.99

$

In Stock, Qty 6

0

4

Toro 125-7216

BOLT

$4.49

$

Usually ships in 3-6 days

0

5

Toro 137-5181

FUEL HOSE ASM

$153.99

$

Usually ships in 3-6 days

0

8

Toro 125-7191

CLAMP-HOSE

$18.99

$

Usually ships in 3-6 days

0

9

Toro 137-5189

FUEL RETURN PIPE ASM

$349.99

$

Usually ships in 3-6 days

0

12

Toro 127-3172

CLAMP-HOSE

$6.99

$

Usually ships in 3-6 days

0

13

Toro 133-6741

FUEL/OIL RETURN HOSE ASM

$87.99

$

Usually ships in 3-6 days

0

16

Toro 125-7191

CLAMP-HOSE

$18.99

$

Usually ships in 3-6 days

0

17

Toro 133-6742

FUEL/OIL RETURN HOSE ASM

$102.99

$

Usually ships in 3-6 days

0

18

Toro 127-2950

CLIP-HOSE

$7.49

$

Usually ships in 3-6 days

0

21

Toro 127-3087

BAND-CLIP

$2.99

$

Usually ships in 3-6 days

0

22

Toro 137-5182

FUEL RETURN HOSE ASM

$67.99

$

Usually ships in 3-6 days

0

23

Toro 127-2950

CLIP-HOSE

$7.49

$

Usually ships in 3-6 days

0
