23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Fuel Injection Valve Assembly Parts Diagram

Directional Drill

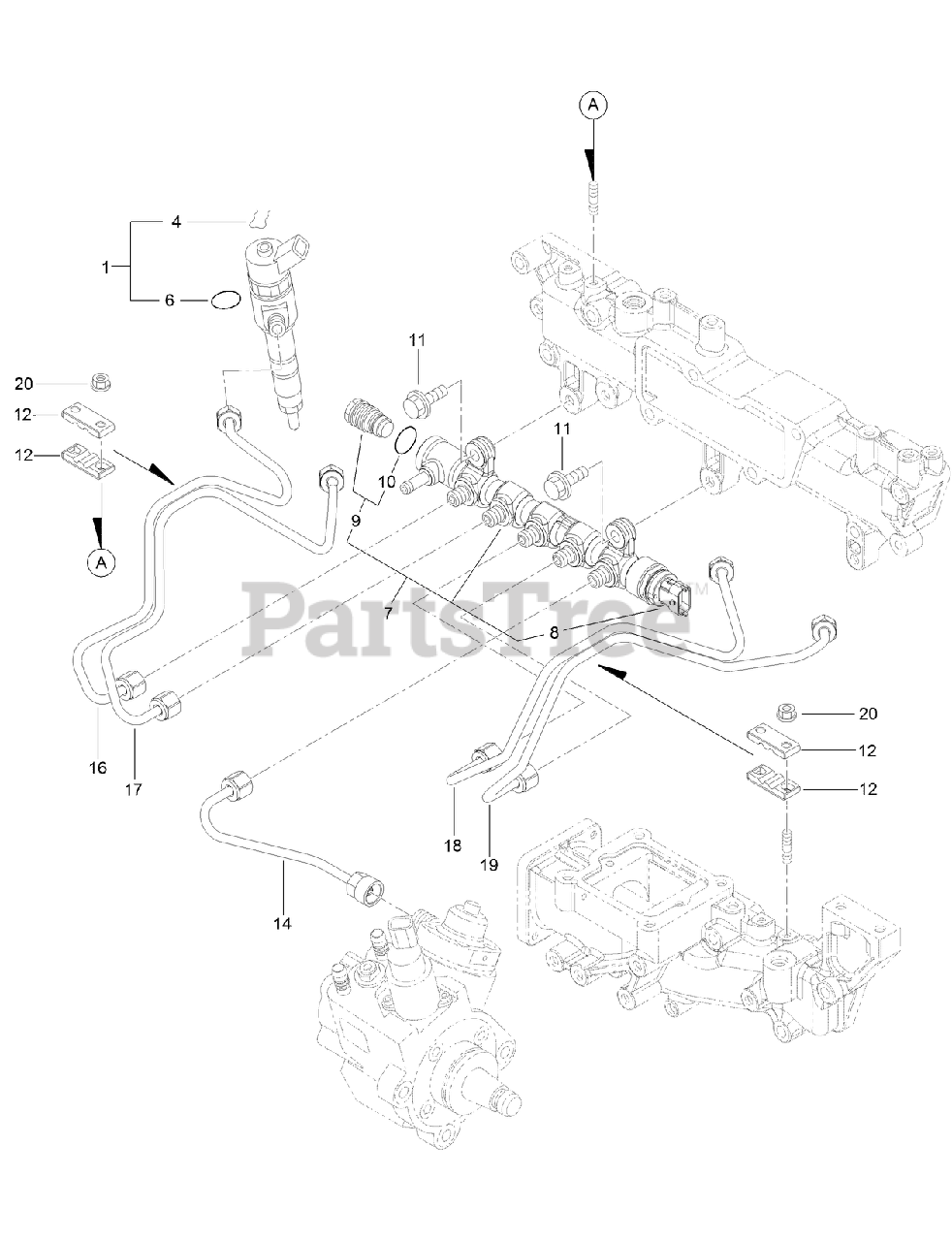

Fuel Injection Valve Assembly Parts Diagram

  • Title

1

Toro 133-6770

INJECTOR-C R

$2941.99

$

Usually ships in 3-6 days

0

4

Toro 130-7430

RING-RETAINING

$27.99

$

Usually ships in 3-6 days

0

6

Toro 137-5173

O-RING

$22.99

$

Usually ships in 3-6 days

0

7

Toro 127-3118

RAIL ASM

$3718.99

$

Usually ships in 3-6 days

0

8

Toro 130-7431

SENSOR-PRESSURE, RAIL
(Superseded to 131-2709)

$423.99

$

Usually ships in 3-6 days

0

9

Toro 130-7432

VALVE ASM
(Superseded to 131-2710)

$353.99

$

Usually ships in 3-6 days

0

10

Toro 130-7433

O-RING

$23.99

$

Usually ships in 3-6 days

0

11

Toro 125-7215

BOLT

$4.49

$

Usually ships in 3-6 days

0

12

Toro 127-2982

RETAINER

$38.99

$

Usually ships in 3-6 days

0

14

Toro 133-6745

RAIL INJECTOR PIPE ASM

$63.99

$

Usually ships in 3-6 days

0

16

Toro 133-6746

INJECTOR NO 1 PIPE ASM

$106.99

$

Usually ships in 3-6 days

0

17

Toro 133-6747

INJECTOR NO 2 PIPE ASM

$104.99

$

Usually ships in 3-6 days

0

18

Toro 133-6748

INJECTOR NO 3 PIPE ASM

$106.99

$

Usually ships in 3-6 days

0

19

Toro 133-6749

INJECTOR NO 4 PIPE ASM

$106.99

$

Usually ships in 3-6 days

0

20

Toro 125-7231

NUT

$4.99

$

Usually ships in 3-6 days

0
