23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Front Hood Support Assembly No. 133-9530 Parts Diagram

Directional Drill

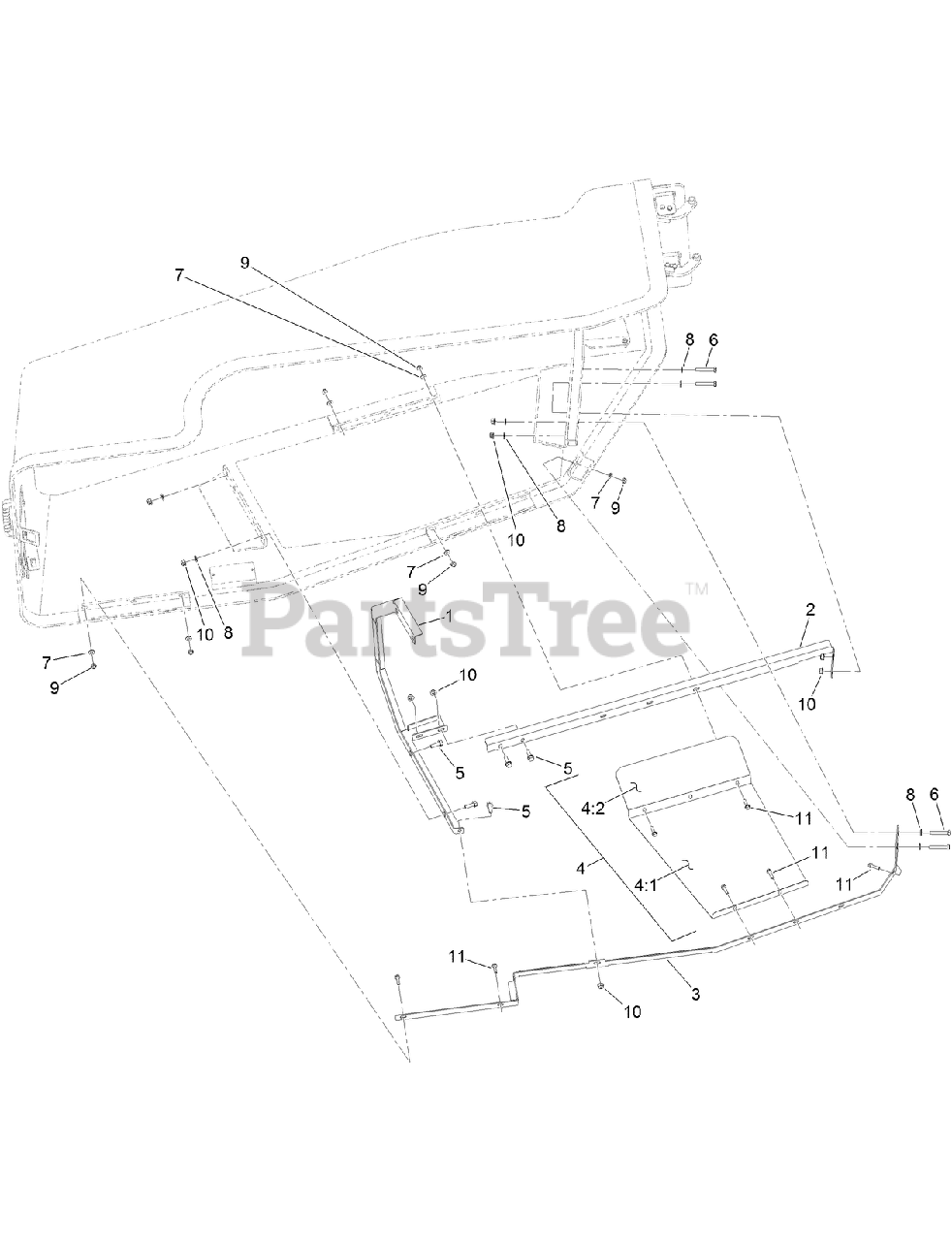

Front Hood Support Assembly No. 133-9530 Parts Diagram

  • Title

1

Toro 138-1291-03

CHANNEL-SUPPORT

$

$

Currently unavailable

2

Toro 138-1301-03

SUPPORT-HOOD, UPPER

$

$

Currently unavailable

3

Toro 138-1302-03

SUPPORT-EDGE, FRONT

$

$

Currently unavailable

4

Toro 138-4771

FRONT HOOD HEAT GUARD ASM

$

$

Currently unavailable

4:1

Toro 138-4766

SHIELDING-HEAT, LOWER GUARD

$

$

Currently unavailable

4:2

Toro 138-4767

SHIELDING-HEAT, UPPER GUARD

$

$

Currently unavailable

5

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

6

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 120-4654

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0
