23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Cylinder Block Assembly Parts Diagram

Directional Drill

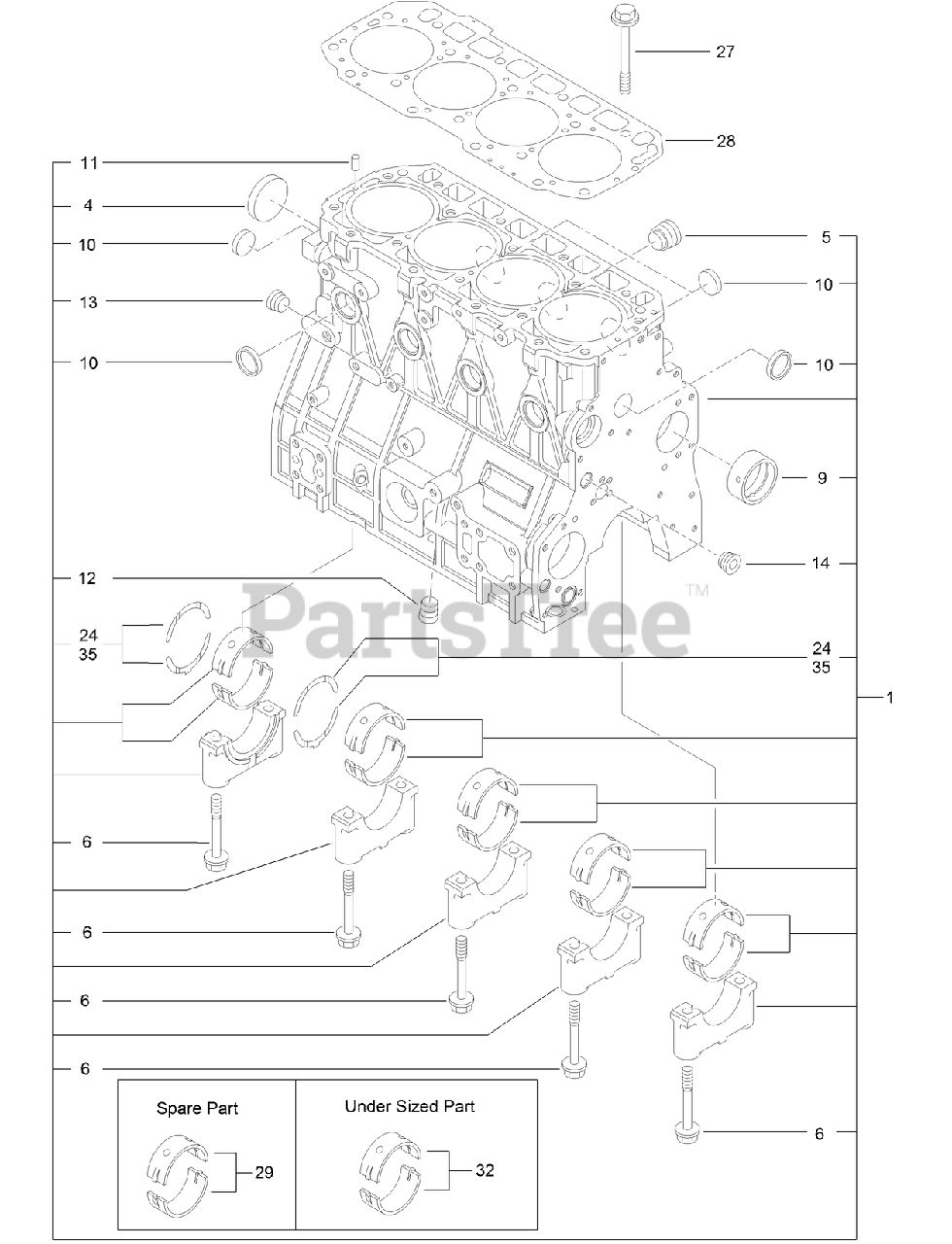

Cylinder Block Assembly Parts Diagram

  • Title

1

Toro 133-6785

CYLINDER BLOCK ASM

$

$

Currently unavailable

4

Toro 133-6627

PLUG

$8.49

$

Usually ships in 3-6 days

0

5

Toro 125-7170

PLUG

$15.99

$

Usually ships in 3-6 days

0

6

Toro 133-6628

BOLT

$15.99

$

Usually ships in 3-6 days

0

9

Toro 133-6630

BUSHING-CAMSHAFT

$59.99

$

Usually ships in 3-6 days

0

10

Toro 133-2507

PLUG

$17.99

$

Usually ships in 3-6 days

0

11

Toro 125-7184

PIN-SPRING

$4.49

$

Usually ships in 3-6 days

0

12

Toro 133-6798

PLUG

$6.49

$

Usually ships in 3-6 days

0

13

Toro 133-6798

PLUG

$6.49

$

Usually ships in 3-6 days

0

14

Toro 133-6798

PLUG

$6.49

$

Usually ships in 3-6 days

0

24

Toro 133-6631

BEARING-THRUST

$35.99

$

Usually ships in 3-6 days

0

27

Toro 133-6626

BOLT-HEAD

$37.99

$

Usually ships in 3-6 days

0

28

Toro 133-6700

GASKET-HEAD, CYLINDER

$249.99

$

Usually ships in 3-6 days

0

29

Toro 133-2508

BEARING-MAIN

$51.99

$

Usually ships in 3-6 days

0

32

Toro 133-6629

BEARING

$113.99

$

Usually ships in 3-6 days

0

35

Toro 133-6632

BEARING-THRUST

$38.99

$

Usually ships in 3-6 days

0
