23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Cooling Package Assembly Parts Diagram

Directional Drill

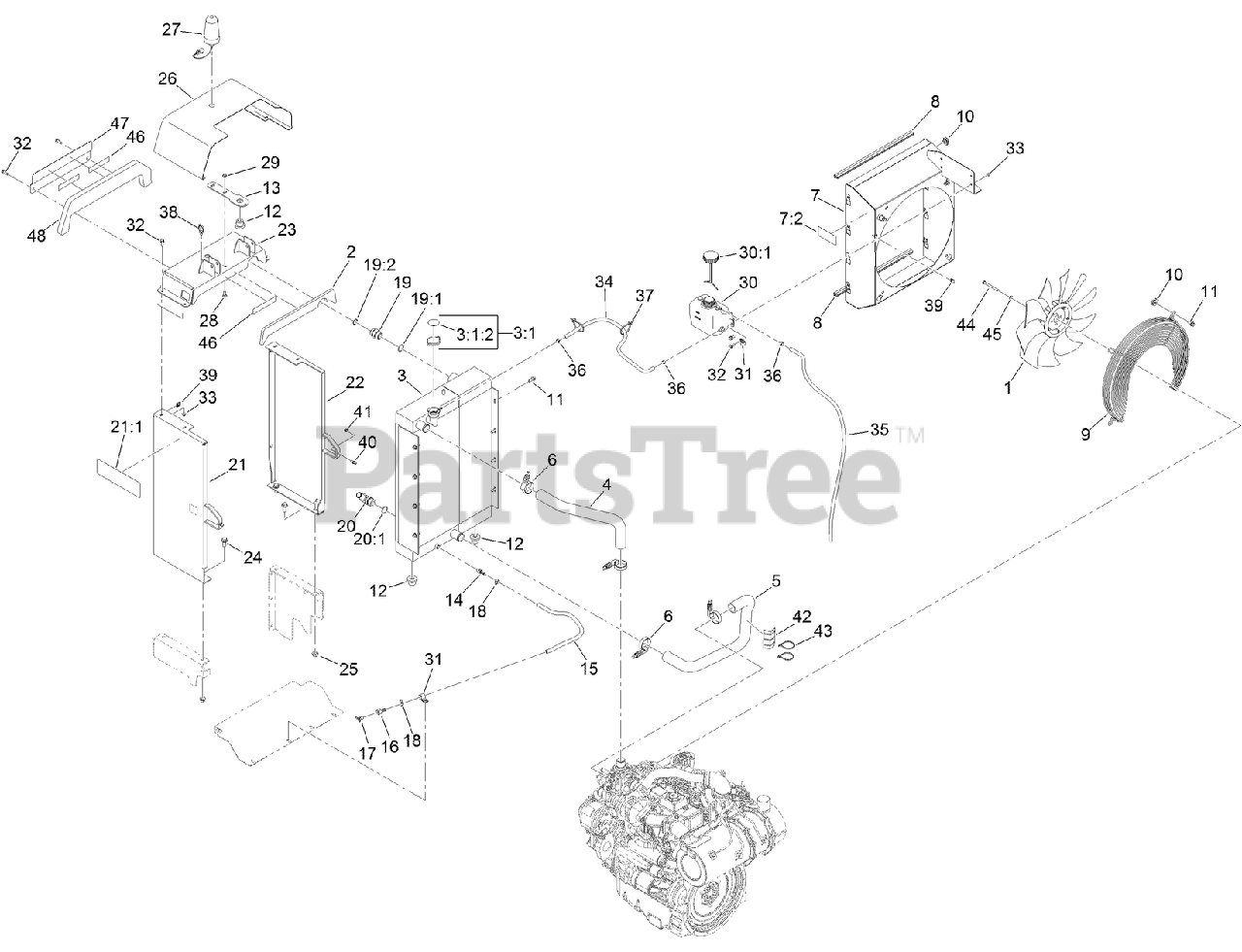

Cooling Package Assembly Parts Diagram

  • Title

1

Toro 131-8865

FAN

$

$

Currently unavailable

2

Toro 137-5217

FOAM-RADIATOR

$

$

Currently unavailable

3

Toro 131-8863

COOLER ASM

$

$

Currently unavailable

3:1

Toro 119-1430

RADIATOR CAP ASM

$45.99

$

Usually ships in 3-6 days

0

3:1:2

Toro 117-3276

DECAL-DANGER

$11.99

$

Usually ships in 3-6 days

0

4

Toro 131-0002

HOSE-RADIATOR, UPPER

$

$

Currently unavailable

5

Toro 131-0003

HOSE-RADIATOR, LOWER

$

$

Currently unavailable

6

Toro 121-7536

CLAMP-TORQUE, CONSTANT

$25.99

$

Usually ships in 3-6 days

0

7

Toro 137-5294

FAN SHROUD ASM

$

$

Currently unavailable

7:2

Toro 125-6127

DECAL-ROTATING FAN HAZARD

$

$

Currently unavailable

8

Toro 115-0424

SEAL-BULB

$33.99

$

Usually ships in 3-6 days

0

9

Toro AU8HX30005-2

GUARD-Fan

$

$

Currently unavailable

10

Toro 105-4886

NUT-TINNERMAN

$3.49

$

Usually ships in 3-6 days

0

11

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

12

Toro 119-1422

MOUNT-ISOLATOR

$20.99

$

Usually ships in 3-6 days

0

13

Toro 131-8879-03

PLATE-SUPPORT, RADIATOR

$

$

Currently unavailable

14

Toro 108-0342

FITTING-STRAIGHT

$9.99

$

Usually ships in 3-6 days

0

15

Toro 132-1331

HOSE-OVERFLOW, RADIATOR

$17.99

$

Usually ships in 3-6 days

0

16

Toro 354-94

FITTING-FEMALE, BARBED

$13.99

$

Usually ships in 3-6 days

0

17

Toro 93-5528

FITTING-COCK, DRAIN

$27.99

$

Usually ships in 3-6 days

0

18

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

19

Toro 104-3797

FITTING-STRAIGHT

$43.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

19:2

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

20

Toro 23-8910

STEM-BARB-90

$220.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

21

Toro 137-8350

SUPPORT ASM-RADIATOR, RH

$

$

Currently unavailable

21:1

Toro 137-7169

DECAL-SAFETY

$

$

Currently unavailable

22

Toro 137-1821-03

BRACKET-RADIATOR SUPPORT, LH

$

$

Not available

23

Toro 131-8871-03

SUPPORT-RADIATOR

$

$

Currently unavailable

24

Toro 3234-38

SCREW-HHF

$5.99

$

In Stock, only 3 left!

0

25

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

26

Toro 131-8893-03

COVER-RADIATOR

$

$

Currently unavailable

27

Toro 125-4528

LIGHT-STROBE

$

$

Not available

28

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 12

0

29

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

30

Toro 120-5573

COOLANT RESERVOIR ASM

$195.99

$

Usually ships in 3-6 days

0

30:1

Toro 87-7050

CAP-RESERVOIR

$23.99

$

In Stock, only 1 left!

0

31

Toro 2412-41

CLAMP-R

$6.99

$

Usually ships in 3-6 days

0

32

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

33

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

34

Toro 136-1551

HOSE-TANK, EXPANSION

$

$

Currently unavailable

35

Toro 136-1552

HOSE-OVERFLOW

$

$

Currently unavailable

36

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

37

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

38

Toro 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0

39

Toro 609900

NUT-SPEED

$9.49

$

Usually ships in 3-6 days

0

40

Toro 103-5752

STUD-BALL

$7.99

$

Usually ships in 3-6 days

0

41

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 10

0

42

Toro AU112950

PROTECTOR-HOSE

$29.99

$

Usually ships in 3-6 days

0

43

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

44

Toro 33114-090

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

45

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

46

Toro 130-6112

TAPE-DOUBLE STICK

$13.99

$

Usually ships in 3-6 days

0

47

Toro 138-1288-03

PLATE-BLOCKING

$

$

Currently unavailable

48

Toro 138-1287

FOAM-BLOCKING

$

$

Currently unavailable
