23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Carriage and Rotary Assembly Parts Diagram

Directional Drill

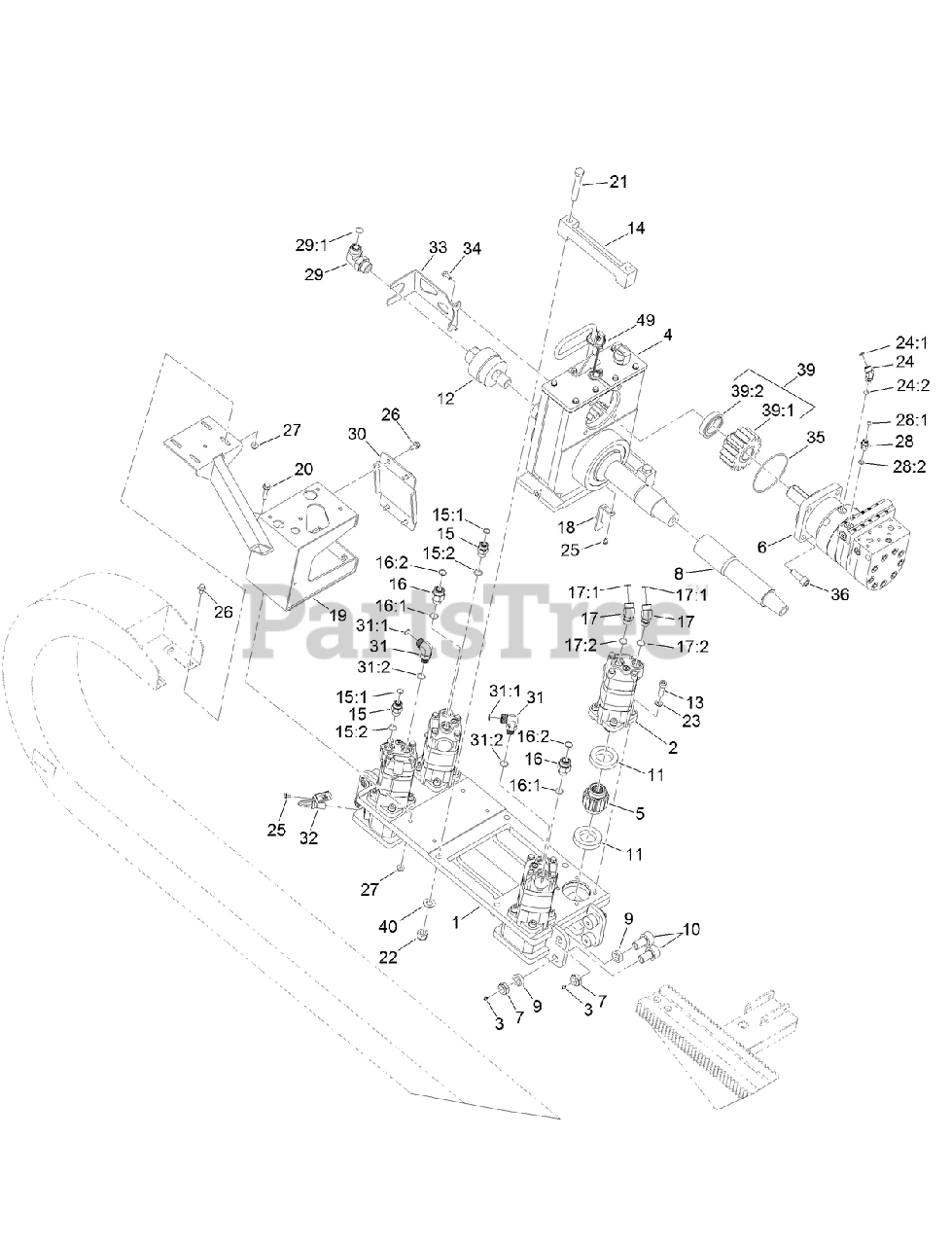

Carriage and Rotary Assembly Parts Diagram

  • Title

1

Toro 132-5735-03

See Supercession: 138-5145-03

$

$

Not available

2

Toro 133-6206

MOTOR-THRUST

$

$

Currently unavailable

3

Toro 302-63

FITTING-GREASE, ZERK

$2.99

$

In Stock, Qty 19

0

4

Toro 137-5287

ROTARY GEARBOX ASM

$

$

Currently unavailable

5

Toro 133-9485

PINION-GEAR, THRUST

$

$

Currently unavailable

6

Toro 131-8946

MOTOR ASM

$

$

Currently unavailable

7

Toro 32-9660

See Supercession: 302-5
(Superseded to 302-5)

$3.49

$

In Stock, Qty 20+

0

8

Toro 131-7385

SUBSAVER

$

$

Not available

9

Toro AU12GB4025

SPACER-FOLLOWER, CAM

$

$

Currently unavailable

10

Toro AU8CF30025

BEARING-ROLLER, CAM

$

$

Currently unavailable

11

Toro AU8CF40008

BEARING-BALL, DOUBLE SEALED

$

$

Currently unavailable

12

Toro AU32GB4210

SWIVEL-MUD

$

$

Currently unavailable

13

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 10

0

14

Toro 133-6247

PLATE-CLAMP

$

$

Currently unavailable

15

Toro 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

15:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

15:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

16

Toro 340-66

FITTING-STRAIGHT

$31.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

16:2

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

17

Toro 340-14

FITTING-HYD, 45 DEG

$51.99

$

Usually ships in 3-6 days

0

17:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

17:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

18

Toro 133-9494-03

PLATE-FLAG

$

$

Not available

19

Toro 136-8838-03

MOUNT-THRUST

$

$

Currently unavailable

20

Toro 3234-19

SCREW-HHF

$3.49

$

In Stock, Qty 12

0

21

Toro 104-5877

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

22

Toro 120-0924

NUT-HEX

$1.99

$

Usually ships in 3-6 days

0

23

Toro 100-7336

WASHER

$5.49

$

Usually ships in 3-6 days

0

24

Toro 340-96

ADAPTER

$43.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

24:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

25

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

26

Toro 323-41

DISCONTINUED

$1.99

$

In Stock, Qty 14

0

27

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

28:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

28:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

29

Toro 137-8374

See Supercession: 137-8313

$

$

Not available

29:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

30

Toro 136-8841-03

PLATE-FRONT, THRUST MANIFOLD

$

$

Currently unavailable

31

Toro 340-17

FITTING-ELBOW, 90 DEG

$61.99

$

Usually ships in 3-6 days

0

31:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

31:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

32

Toro 120-4800

SENSOR-GEARTOOTH

$221.99

$

Usually ships in 3-6 days

0

33

Toro 137-5281-03

BRACKET-SWIVEL, MUD

$

$

Currently unavailable

34

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

35

Toro 104-1920

O-RING

$13.99

$

Usually ships in 3-6 days

0

36

Toro 133-6245

SCREW-HSH

$

$

Currently unavailable

39

DRIVE MOTOR GEAR ASM

Note: Not serviced separately

$

$

Not available

39:1

Toro 133-6240

GEAR-PINION

$

$

Currently unavailable

39:2

Toro 76-7280

BEARING

$148.99

$

Usually ships in 3-6 days

0

40

Toro 119-1868

WASHER

$3.49

$

Usually ships in 3-6 days

0

49

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0
