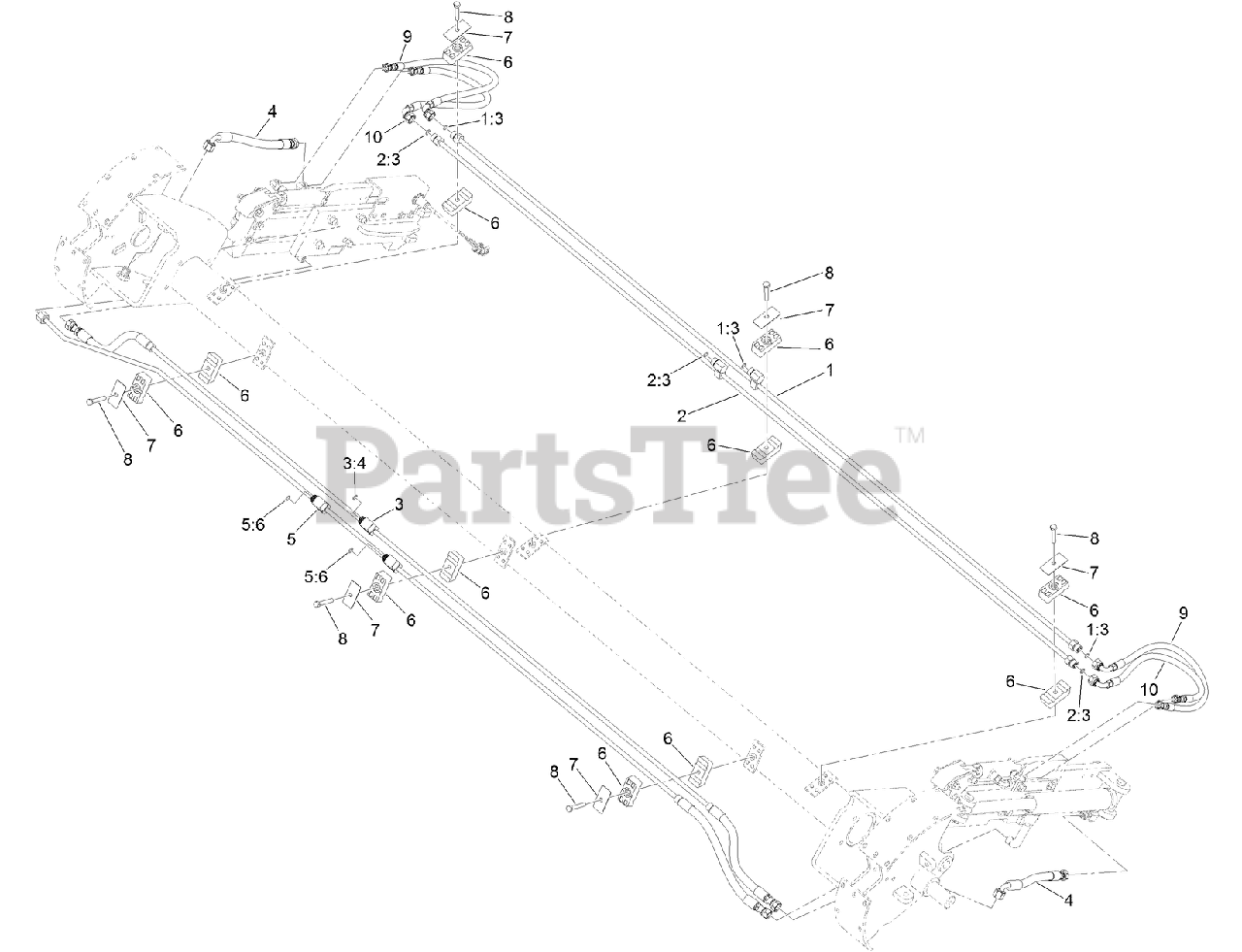

23803 (2226) - Toro Directional Drill (SN: 400000000 - 404299999) Arm Extension and Grippers Hydraulic Hose and Tube Assembly Parts Diagram

Directional Drill

Arm Extension and Grippers Hydraulic Hose and Tube Assembly Parts Diagram

  • Title

1

Toro 137-4497

TUBE ASM-HYD

$

$

Currently unavailable

1:3

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

2

Toro 137-4496

TUBE ASM-HYD

$

$

Currently unavailable

2:3

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

3

Toro 133-6072

HYD TUBE-HOSE ASM

$

$

Currently unavailable

3:4

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

4

Toro 133-6052

HOSE ASM-HYD

$

$

Currently unavailable

5

Toro 133-6047

HYD TUBE - HOSE ASM

$

$

Currently unavailable

5:6

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

6

Toro 120-3200

CLAMP-TUBE

$15.99

$

Usually ships in 3-6 days

0

7

Toro 69-9761

PLATE-COVER

$10.99

$

Usually ships in 3-6 days

0

8

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

9

Toro 137-4498

HOSE ASM-HYD

$

$

Currently unavailable

10

Toro 137-4499

HOSE ASM-HYD

$

$

Currently unavailable
