23800 TE (2024) - Toro Directional Drill (SN: 314000501 - 314999999) (2014) REAR CONTROL BOX AND COOLANT TANK ASSEMBLY Parts Diagram

Directional Drill

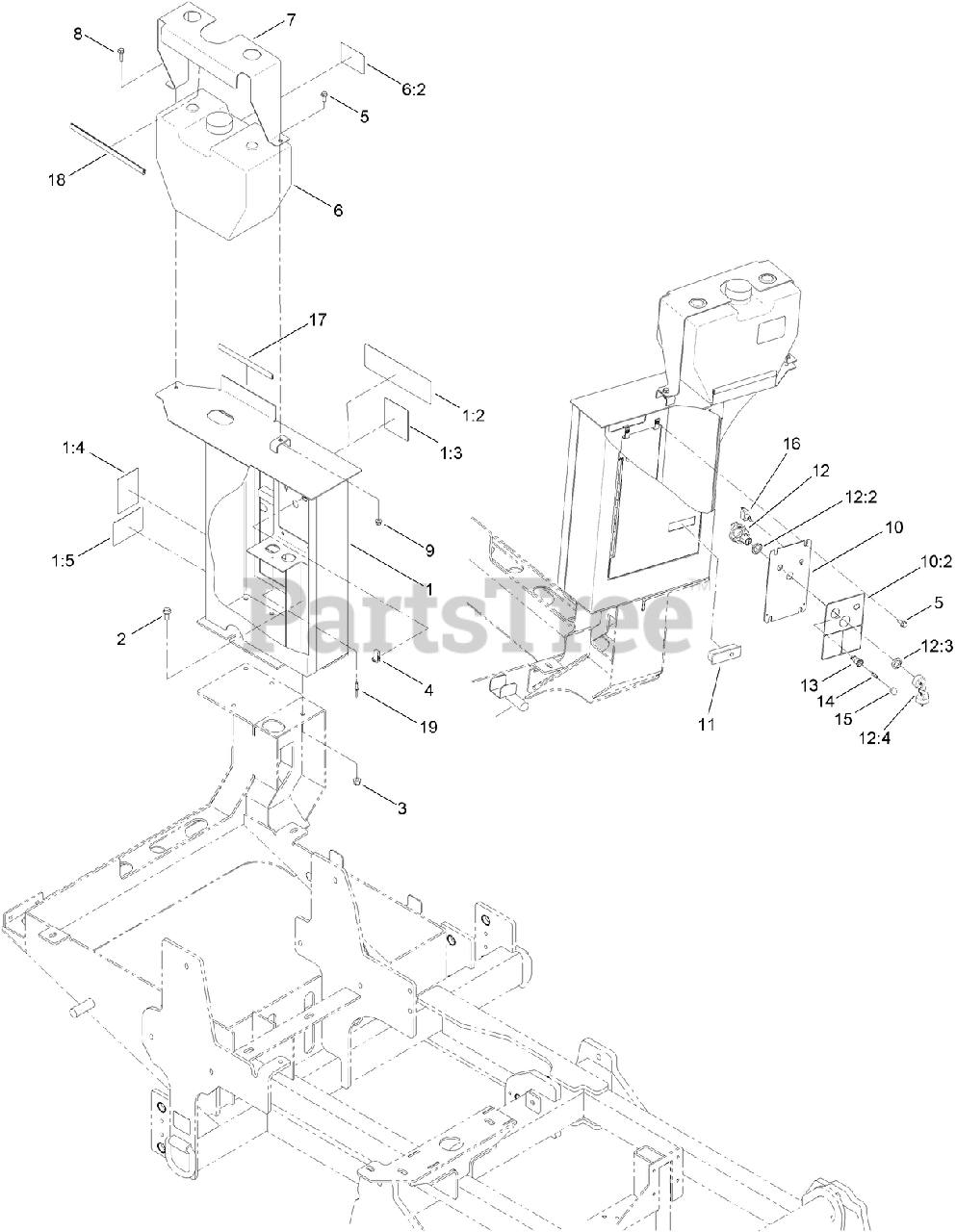

REAR CONTROL BOX AND COOLANT TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 127-0903

REAR CONTROL BOX ASM

$

$

Currently unavailable

1:2

Toro 125-6113

DECAL-SAFETY

$

$

Currently unavailable

1:3

Toro 125-6117

DECAL-DANGER, NO RIDERS (REAR)

$

$

Currently unavailable

1:4

Toro 125-6118

DECAL-DANGER, BACK UP

$

$

Currently unavailable

1:5

Toro 125-6120

DECAL-RAISE AND LOWER

$

$

Currently unavailable

2

Toro 33105-025

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

3

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

4

$4.99

$

Usually ships in 3-6 days

0

5

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 3 left!

0

6

Toro 127-0905

TANK COOLANT ASM

$

$

Not available

6:2

Toro 125-6137

DECAL-ANTIFREEZE

$

$

Currently unavailable

7

Toro AU113714-03

BRACKET-BOTTLE, ANTI-FREEZE

$

$

Not available

8

Toro 33104-030

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

9

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

10

Toro 127-0906

REAR CONTROL PANEL ASM

$

$

Not available

10:2

Toro 125-6121

DECAL-REAR CONTROL

$

$

Currently unavailable

11

Toro AU50GB2302

LATCH-TRIGGER, RAISED (W/LOCK)

$

$

Not available

12

Toro 121-5159

IGNITION SWITCH ASM

$122.99

$

In Stock, only 2 left!

0

12:2

Toro 121-5160

NUT-HEX

$114.99

$

Usually ships in 3-6 days

0

12:3

Toro 121-5161

NUT-FACE

$4.49

$

In Stock, only 1 left!

0

12:4

Toro 121-5162

IGNITION KEY SET

$35.99

$

In Stock, only 2 left!

0

13

Toro AU8EO21401

TYPE T-2 SOCKET ASM

$

$

Currently unavailable

14

Toro 122-0224

LAMP-LED

$

$

Currently unavailable

15

Toro AU8EO21406

LENS-DOME, FLUTED AMBER (TYPE T2)

$

$

Currently unavailable

16

Toro AU8EO72001

SWITCH-TOOGLE, SPST, ON-OFF (SEALED)

$

$

Currently unavailable

17

Toro 127-5315

TRIM-TANK

$

$

Currently unavailable

18

Toro 127-5316

TRIM-TANK

$

$

Currently unavailable

19

Toro 3269-28

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0
