23800 TE (2024) - Toro Directional Drill (SN: 314000501 - 314999999) (2014) ENGINE AND BATTERY ASSEMBLY Parts Diagram

Directional Drill

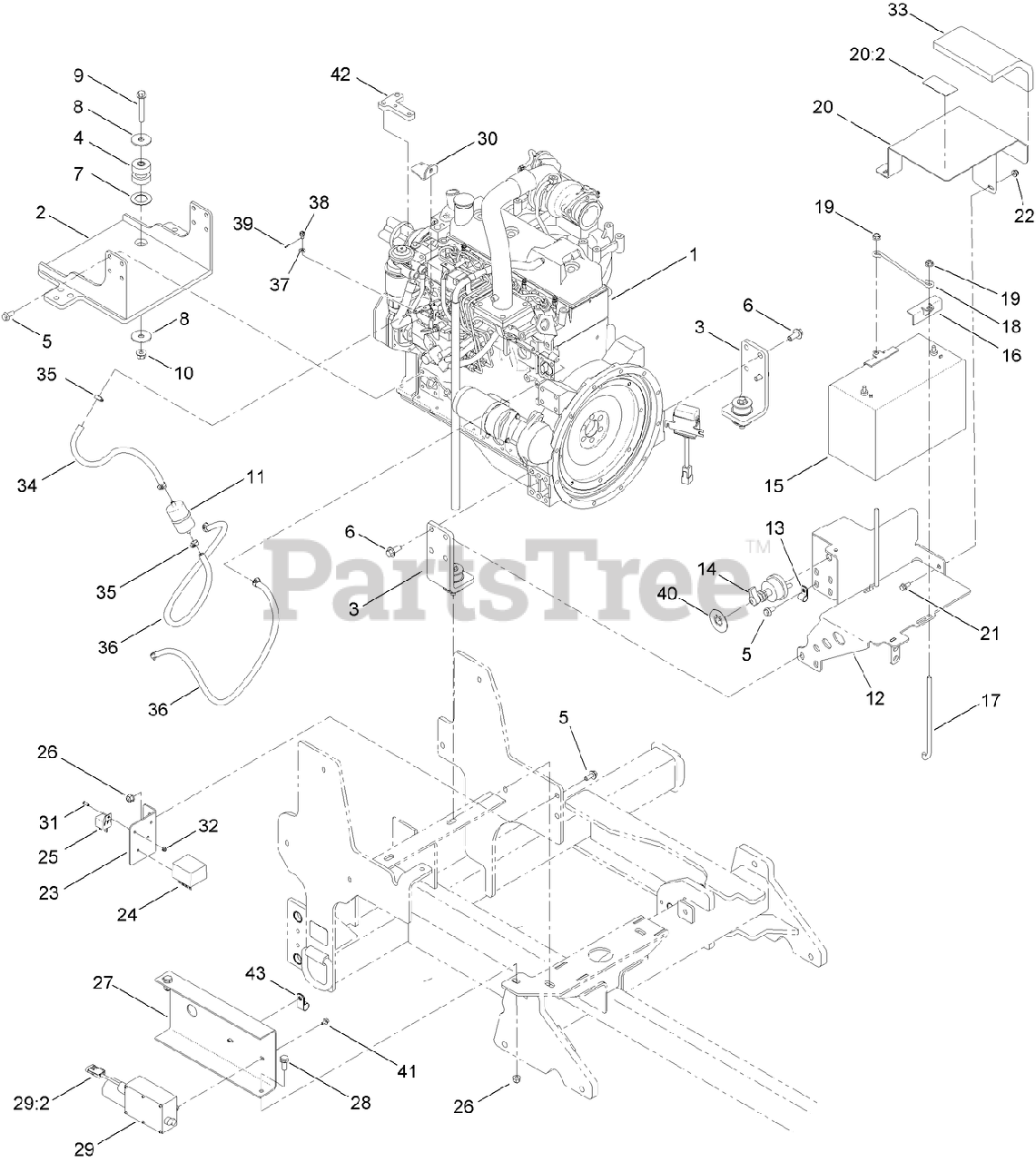

ENGINE AND BATTERY ASSEMBLY Parts Diagram

  • Title

1

ENGINE ASM

Note: Not serviced separately

$

$

Not available

2

Toro AU114801-03

MOUNT-ENGINE AND RADIATOR

$

$

Not available

3

Toro AU12GB3114-03

BRACKET-MOUNT, ENGINE

$

$

Not available

4

Toro AU8NG28121

ISOLATOR-MOUNTING, UNIVERSAL

$

$

Currently unavailable

5

Toro 33105-025

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

6

Toro 33106-030

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

7

Toro AU113262

SPACER-ISOLATOR

$

$

Currently unavailable

8

Toro AU496-81018

WASHER-FLAT

$3.99

$

Usually ships in 3-6 days

0

9

Toro 33106-080

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

10

Toro 115-1115

NUT-LOCK, HHF

$2.49

$

In Stock, only 2 left!

0

11

Toro AU8NG10019-24

FILTER-INLINE FUEL

$

$

Currently unavailable

12

Toro AU119455-03

BRACKET-MOUNT, BATTERY

$

$

Not available

13

Toro 2412-138

R-CLAMP

$1.99

$

Usually ships in 3-6 days

0

14

Toro AU8EP02901

SWITCH-BATTERY (1000 AMP)

$

$

Currently unavailable

15

BATTERY (1000CCA, WET)

Note: Not serviced separately

$

$

Not available

16

Toro AUD125079

ANGLE-HOLDDOWN, BATTERY

$32.99

$

Usually ships in 3-6 days

0

17

Toro AUH436311

BOLT-HOLDDOWN, BATTERY

$41.99

$

Usually ships in 3-6 days

0

18

Toro AUD135073

BRACKET-HOLDDOWN, BATTERY

$60.99

$

Usually ships in 3-6 days

0

19

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro 127-0910

BATTERY SHIELD ASM

$

$

Currently unavailable

20:2

Toro 125-8473

DECAL-WARNING, BATTERY

$

$

Currently unavailable

21

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 3 left!

0

22

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

23

Toro AU12GB3052-03

BRACKET-MOUNTING, RELAY

$

$

Not available

24

Toro AU8NG10019-35

RELAY-CONTROL, ENGINE

$

$

Currently unavailable

25

Toro 99-7435

RELAY-POWER

$47.99

$

In Stock, only 2 left!

0

26

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

27

Toro AU114513-03

BRACKET-THROTTLE

$

$

Not available

28

Toro 33105-030

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

29

Toro AU6EE30101

ACTUATOR-THROTTLE

$

$

Currently unavailable

29:2

Toro AU6EC12114

CONNECTOR

$

$

Currently unavailable

30

Toro AU12GB3042-03

BRACKET-THROTTLE

$

$

Not available

31

Toro 119-7568

SCREW-HSBH

$2.49

$

Usually ships in 3-6 days

0

32

Toro 120-4580

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

33

Toro AU122242

SHIELD-HEAT

$

$

Currently unavailable

34

Toro 125-4529

HOSE-FUEL

$

$

Currently unavailable

35

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

36

Toro 125-4530

HOSE-FUEL

$

$

Currently unavailable

37

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Toro 125-4534

PIVOT-THROTTLE

$

$

Not available

39

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

40

Toro AU8EP02902

FACEPLATE-BATTERY, ON/OFF

$

$

Currently unavailable

41

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

42

Toro 127-0951-03

PLATE-MOUNT, FILTER

$

$

Currently unavailable

43

Toro 2412-81

CLAMP-R

$4.49

$

Usually ships in 3-6 days

0
