23800 TE (2024) - Toro Directional Drill (SN: 314000001 - 314000500) (2014) THRUST FRAME AND STAKEDOWN ASSEMBLY Parts Diagram

Directional Drill

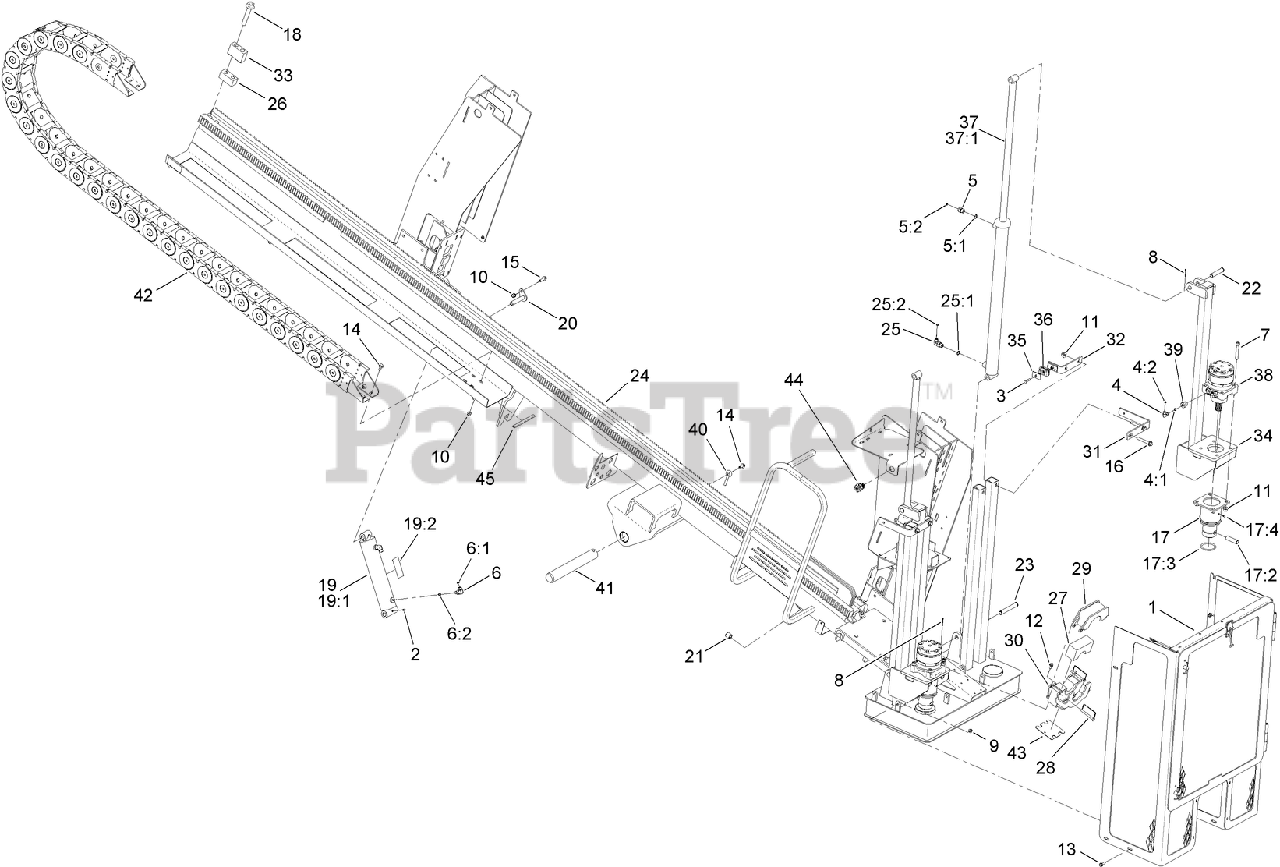

THRUST FRAME AND STAKEDOWN ASSEMBLY Parts Diagram

  • Title
1

Toro 127-0992

STAKEDOWN CAGE ASM

$

$

Not available

2

Toro 302-57

FITTING-GREASE

$1.99

$

Usually ships in 3-6 days

0

3

Toro 322-47

SCREW-HH
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

4

Toro 340-132

FITTING-90 DEG

$26.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

4:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

5

Toro 340-133

FITTING-STR

$47.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

5:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

6

Toro 340-77

FITTING-ELBOW, 90 DEG

$26.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

6:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

7

Toro AU864-12080

SCREW-HSH

$

$

Currently unavailable

8

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

9

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

10

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

11

Toro 115-1115

NUT-LOCK, HHF

$2.49

$

In Stock, only 2 left!

0

12

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 3 left!

0

13

Toro 33104-030

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

14

Toro 33105-025

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

15

Toro 33105-035

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

16

Toro 33106-080

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

17

Toro AU12GB7507

STAKEDOWN COUPLER ASM

$

$

Not available

17:2

Toro AU12GB7514

PIN-COUPLING, STAKE

$

$

Currently unavailable

17:3

Toro AU8HS51334

O-RING
(Superseded to 131-0034)

$

$

Not available

17:4

Toro 302-57

FITTING-GREASE

$1.99

$

Usually ships in 3-6 days

0

18

Toro AU100378

SCREW-HHF

$

$

Currently unavailable

19

Toro 127-0913

LIFT CYLINDER ASM

$

$

Currently unavailable

19:1

Cylinder-Hydraulic

Note: Not serviced separately

$

$

Not available

19:2

Toro 125-6115

DECAL-CAUTION, CYLINDER LOCK

$

$

Currently unavailable

20

Toro AU109483

PIN-FLAG

$

$

Currently unavailable

21

Toro AU109676

BUSHING-SPRING

$

$

Currently unavailable

22

Toro AUS10839

PIN-CLEVIS

$

$

Not available

23

Toro AU110282

PIN-CLEVIS

$

$

Currently unavailable

24

Toro 127-0898

THRUST FRAME ASM

$

$

Currently unavailable

25

Toro 108-5687

FITTING-ELBOW 90

$104.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

25:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

26

Toro AU112132-03

BLOCK-TAPPED

$

$

Currently unavailable

27

Toro AU113442

GUIDE-ROD, BUSHING

$

$

Not available

28

Toro AU113514

PIN-SELF LOCKING

$

$

Currently unavailable

29

Toro AU113516-03

GUIDE-ROD BUSHING, TOP

$

$

Not available

30

Toro AU113517-03

GUIDE-ROD BUSHING, BOTTOM

$

$

Not available

31

Toro AU113696-03

TIE-POST, STAKEDOWN

$

$

Not available

32

Toro AU12GB2011-03

TIE-POST, HOSE BRACKET

$

$

Not available

33

Toro AU12GB2030-03

STOP-CARRIAGE

$

$

Currently unavailable

34

Toro AU12GB7508-03

STAKEDOWN

$

$

Currently unavailable

35

Toro AU8CL21201

PLATE-COVER, TWIN

$

$

Currently unavailable

36

Toro AU8CL21704

CLAMP-HALF (SET OF 2)

$

$

Currently unavailable

37

Toro AU8HC20030

HYD CYLINDER ASM

$

$

Currently unavailable

37:1

$

$

Currently unavailable

38

Toro AU8HM24055

HYD MOTOR ASM

$

$

Currently unavailable

39

Toro AU8SA31004

REDUCER-STRAIGHT, THREADED

$

$

Currently unavailable

40

Toro AUH313981

PIN-RETAINER

$64.99

$

Usually ships in 3-6 days

0

41

Toro 125-4525

PIN-PIVOT, THRUST FRAME

$

$

Currently unavailable

42

Toro AU110373

CARRIER-HOSE

$

$

Not available

43

Toro 125-4468-03

SHIM-ROD GUIDE, BOTTOM

$

$

Currently unavailable

44

Toro 109-9376

RECEPTACLE-12V

$47.99

$

Usually ships in 3-6 days

0

45

Toro 127-0976

TRIM-CARRIER, HOSE

$

$

Currently unavailable
