23800 TE (2024) - Toro Directional Drill (SN: 314000001 - 314000500) (2014) OPERATOR CONTROL ASSEMBLY Parts Diagram

Directional Drill

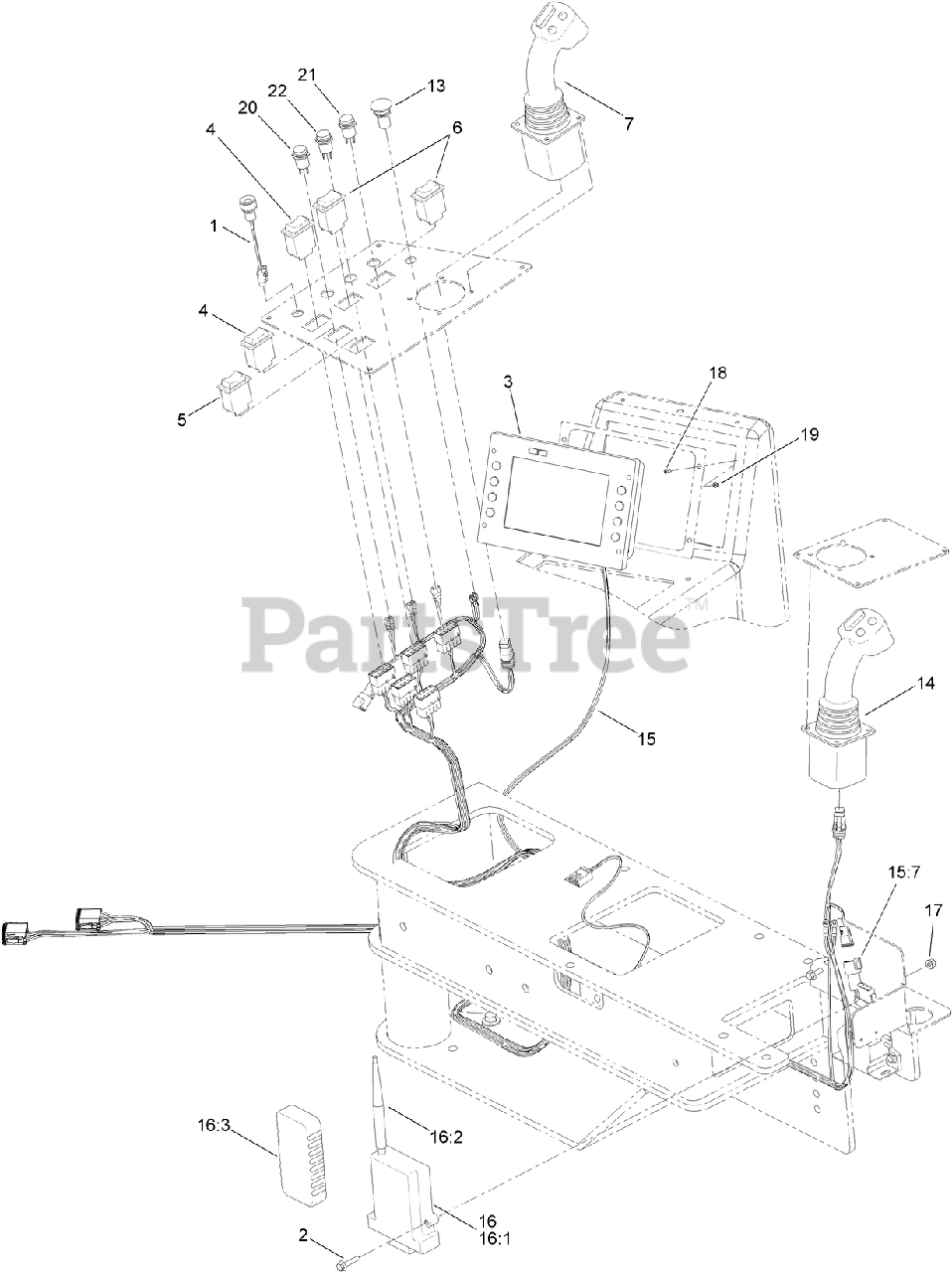

OPERATOR CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 121-6592

SWITCH-START, GREEN BUTTON

$

$

Currently unavailable

2

Toro 33103-030

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

3

Toro AU103384

DISPLAY-DP600, UNPROGRAMMED
(Superseded to 132-4181)

$11183.99

$

Usually ships in 3-6 days

0

4

Toro AU113662

SWITCH-ROCKER, 2 POLE (ON/OFF)

$

$

Currently unavailable

5

Toro AU113664

SWITCH-ROCKER, 2 POLE

$38.99

$

In Stock, only 1 left!

0

6

Toro AU113665

SWITCH-ROCKER, 1 POLE (ON)OFF/ON(OFF)

$

$

Currently unavailable

7

Toro AU117962

JOYSTICK-MODIFIED (LEFT HAND)

$

$

Currently unavailable

13

Toro AU8EP46103

BUTTON-PUSH, RED MUSHROOM

$

$

Currently unavailable

14

Toro AU8EP47613

JOYSTICK-CARRIAGE

$

$

Currently unavailable

15

Toro 121-6585

HARNESS-WIRE, OPERATOR

$

$

Currently unavailable

15:7

Toro 32180-043

RESISTOR-120 OHM

$28.99

$

Usually ships in 3-6 days

0

16

Toro 130-4457

STANDARD EXIT SIDE LOCKOUT

$

$

Not available

16:1

Toro 130-4459

BASE UNIT-LOCKOUT

$

$

Currently unavailable

16:2

Toro 130-4462

ANTENNA-LOCKOUT

$

$

Currently unavailable

16:3

Toro 130-4458

HANDHELD-LOCKOUT

$

$

Not available

17

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

18

Toro 130-4539

SCREW-PH

$

$

Currently unavailable

19

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

20

Toro 131-0038

LAMP-INDICATOR, LED

$

$

Currently unavailable

21

Toro 131-0039

LAMP-INDICATOR, LED

$

$

Not available

22

Toro 131-0040

LAMP-INDICATOR, LED

$

$

Not available
