23800 TE (2024) - Toro Directional Drill (SN: 313000001 - 313999999) (2013) ROD CAM ASSEMBLY Parts Diagram

Directional Drill

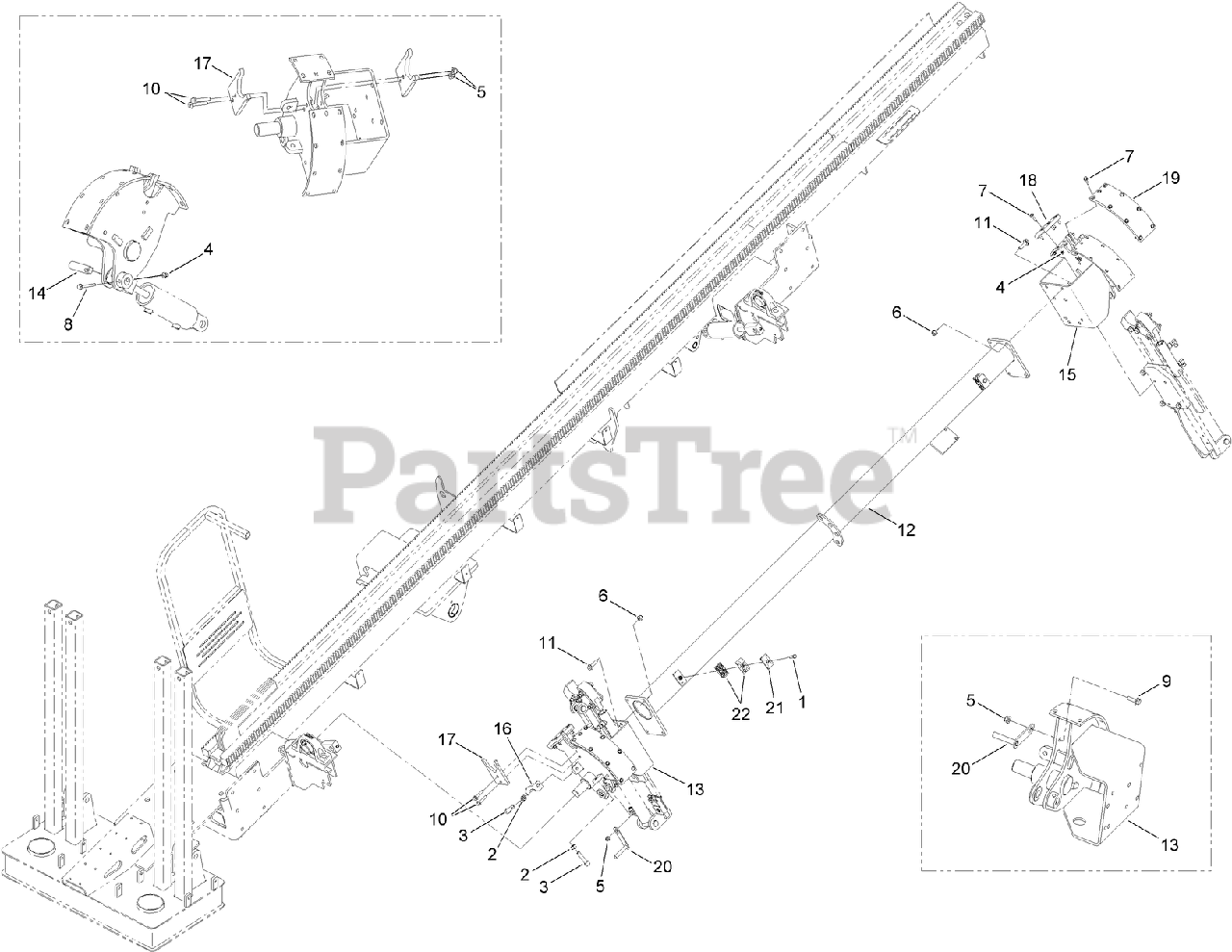

ROD CAM ASSEMBLY Parts Diagram

  • Title
1

Toro 322-47

SCREW-HH
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

$

$

Not available

3

Toro AU864-12050

SCREW-HSFH

$

$

Currently unavailable

4

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

5

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

6

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

7

Toro 33103-025

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

8

Toro 33103-050

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

9

Toro 33104-025

SCREW-HHF

$7.99

$

In Stock, only 2 left!

0

10

Toro 33104-040

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

11

Toro 33105-035

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

12

Toro AU109516-03

SPINE-LOADER, ROD

$

$

Not available

$

$

Not available

14

Toro AU109680

PIN-STRAIGHT

$

$

Currently unavailable

15

Toro AU110318-03

CAM
(Superseded to 132-4167-03)

$

$

Not available

16

Toro AU111660

PLATE-POINTER

$

$

Currently unavailable

17

Toro AU111864-03

PLATE-GUIDE, PIPE
(Superseded to AU111864)

$

$

Not available

18

Toro AU114756

PAD-WEAR, ROD LOADER

$

$

Currently unavailable

19

Toro AU114757

PAD-WEAR, ROD LOADER

$

$

Currently unavailable

20

Toro AU12GB7339

FLAG-SENSOR

$

$

Currently unavailable

21

Toro AU8CL21201

PLATE-COVER, TWIN

$

$

Currently unavailable

22

Toro AU8CL21704

CLAMP-HALF (SET OF 2)

$

$

Currently unavailable
