23800 TE (2024) - Toro Directional Drill (SN: 313000001 - 313999999) (2013) HYDRAULIC MOTOR ASSEMBLY NO. AU8HM24035 Parts Diagram

Directional Drill

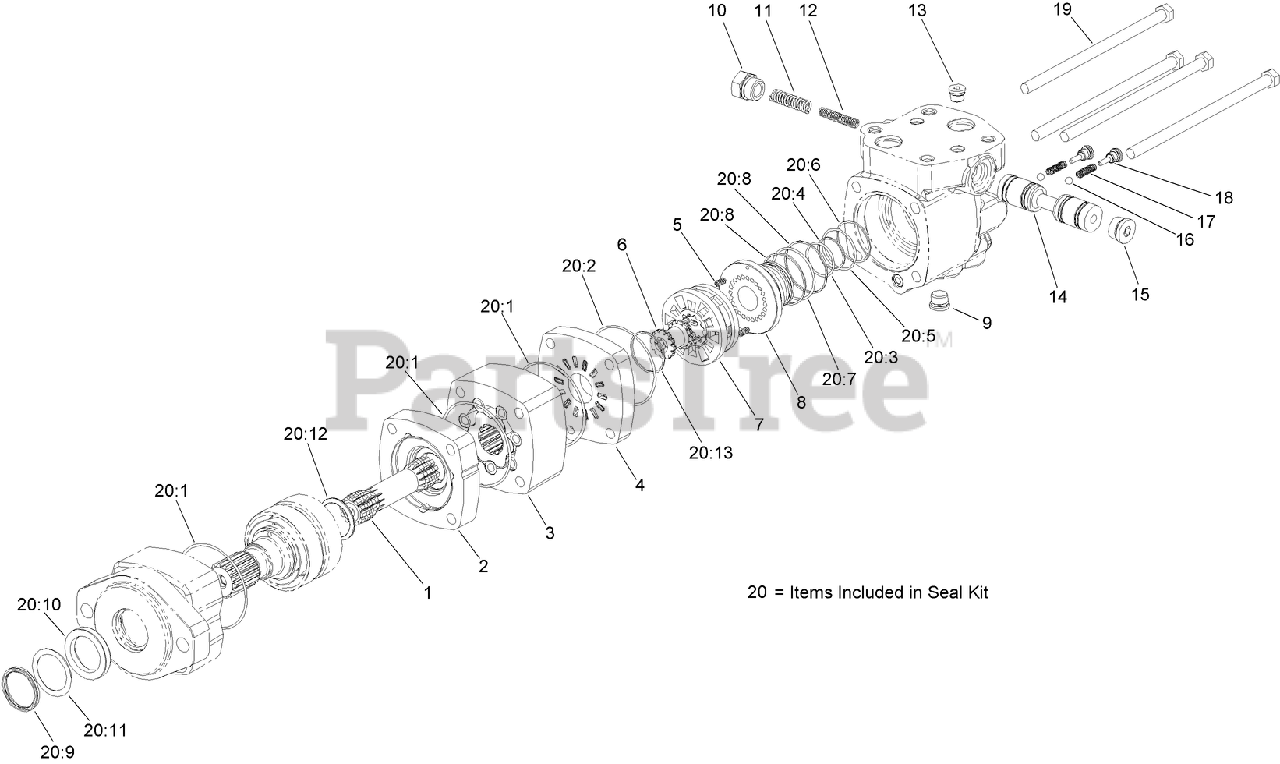

HYDRAULIC MOTOR ASSEMBLY NO. AU8HM24035 Parts Diagram

  • Title
1

SHAFT-DRIVE

Note: Not serviced separately

$

$

Not available

2

Toro 127-6210

PLATE-WEAR

$

$

Currently unavailable

3

Toro 127-6209

GEROLER ASM

$

$

Currently unavailable

4

Toro 127-6208

PLATE-VALVE

$

$

Currently unavailable

5

Toro 33-3410

SPRING

$13.99

$

Usually ships in 3-6 days

0

6

Toro 36-6260

DRIVE-VALVE

$397.99

$

Usually ships in 3-6 days

0

7

$

$

Currently unavailable

8

Toro 127-6206

BALANCING RING ASM

$

$

Currently unavailable

9

Toro 127-6205

PLUG ASM

$

$

Currently unavailable

10

Toro 127-6204

PLUG ASM

$

$

Currently unavailable

11

Toro 127-6203

SPRING-COMPRESSION

$

$

Currently unavailable

12

Toro 127-6202

SPRING-COMPRESSION

$

$

Currently unavailable

13

Toro 33-3580

PLUG ASM

$30.99

$

Usually ships in 3-6 days

0

14

Toro 127-6201

SPOOL-CONTROL

$

$

Currently unavailable

15

Toro 127-6200

PLUG ASM

$

$

Currently unavailable

16

Toro 127-6199

BALL-STEEL

$

$

Currently unavailable

17

Toro 127-6198

SPRING-COMPRESSION

$

$

Currently unavailable

18

Toro 33-3380

PLUG ASM

$

$

Not available

19

Toro 127-6197

SCREW-CAP

$

$

Currently unavailable

20

Toro 127-6212

SEAL KIT

$

$

Currently unavailable

20:1

O-RING

Note: Not serviced separately

$

$

Not available

20:2

O-RING

Note: Not serviced separately

$

$

Not available

20:3

O-RING

Note: Not serviced separately

$

$

Not available

20:4

RING-BACKUP

Note: Not serviced separately

$

$

Not available

20:5

O-RING

Note: Not serviced separately

$

$

Not available

20:6

RING-BACKUP

Note: Not serviced separately

$

$

Not available

20:7

O-RING

Note: Not serviced separately

$

$

Not available

20:8

RING-BACKUP

Note: Not serviced separately

$

$

Not available

20:9

SEAL

Note: Not serviced separately

$

$

Not available

20:10

SEAL

Note: Not serviced separately

$

$

Not available

20:11

Washer-Backup

Note: Not serviced separately

$

$

Not available

20:12

Seal-Shaft Face

Note: Not serviced separately

$

$

Not available

20:13

SEAL

Note: Not serviced separately

$

$

Not available
