23800 TE (2024) - Toro Directional Drill (SN: 313000001 - 313999999) (2013) ENGINE INTAKE AND EXHAUST ASSEMBLY Parts Diagram

Directional Drill

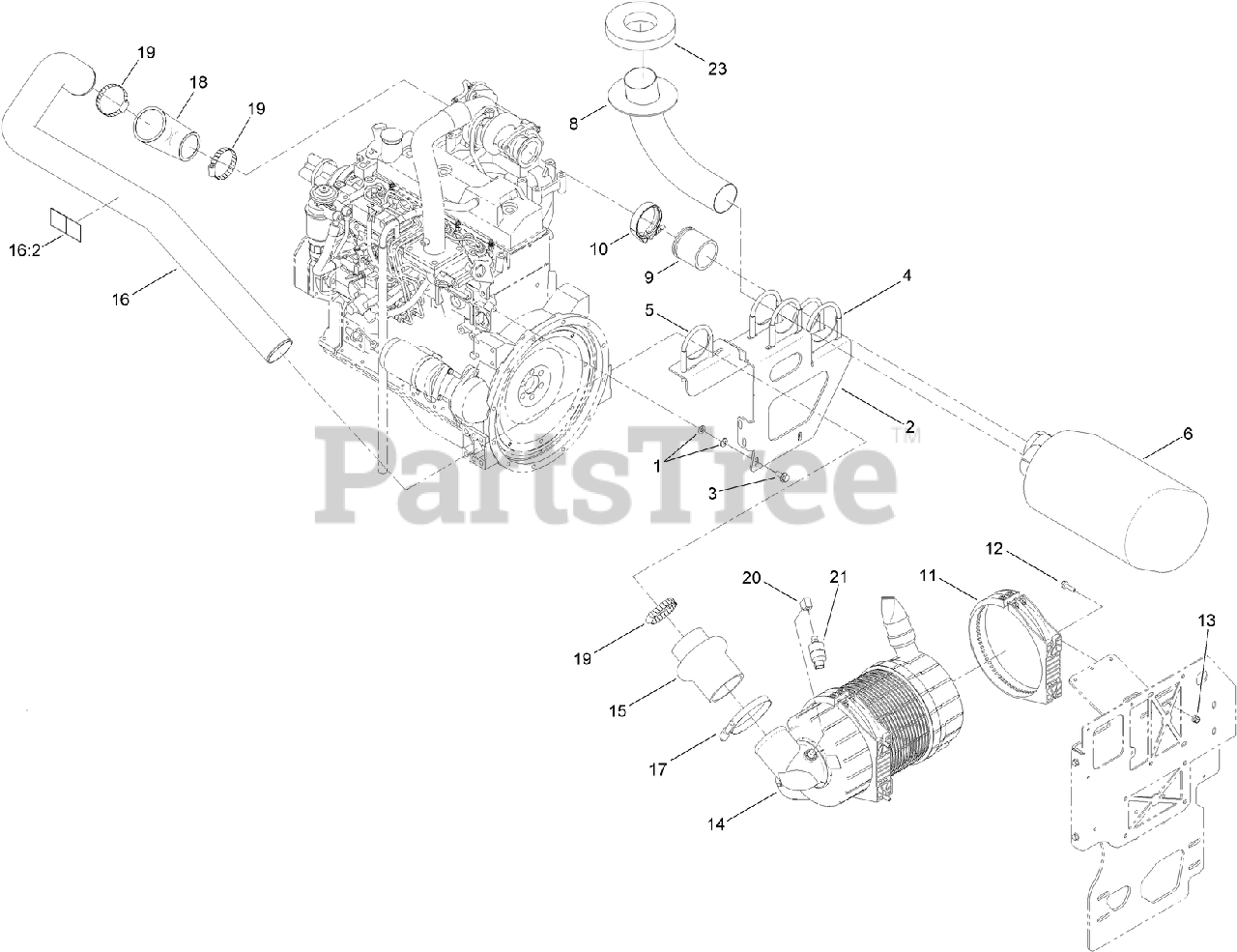

ENGINE INTAKE AND EXHAUST ASSEMBLY Parts Diagram

  • Title
1

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

2

Toro AU118530-03

BRACKET-MOUNT, MUFFLER

$

$

Not available

3

Toro 33105-025

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

4

Toro AU8NG28119

CLAMP-GUILLOTINE

$

$

Not available

5

Toro AU8NG28118

CLAMP-GUILLOTINE

$

$

Currently unavailable

6

Toro 125-4535

MUFFLER

$

$

Not available

8

Toro AU121439

TUBE-EXHAUST (W/ SEAL PLATE)

$

$

Currently unavailable

9

Toro AU112878

FLANGE-ADAPTER, TURBO

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Toro 112-7340

BAND-MOUNTING, AIR CLEANER

$109.99

$

Usually ships in 3-6 days

0

12

Toro 33104-030

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

13

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

14

Toro 112-7329

AIR CLEANER ASM

$539.99

$

Usually ships in 3-6 days

0

15

Toro AU8NG10019-09

REDUCER-HOSE

$

$

Currently unavailable

16

Toro 127-0922

AIR INTAKE ASM

$

$

Currently unavailable

16:2

Toro 125-6129

DECAL-WARNING, HOT SURFACE

$

$

Currently unavailable

17

Toro AU102427

CLAMP-TORQUE, CONSTANT

$15.99

$

Usually ships in 3-6 days

0

18

Toro 125-4532

ELBOW-90 DEG

$

$

Currently unavailable

19

Toro 2412-128

CLAMP-HOSE

$7.99

$

Usually ships in 3-6 days

0

20

Toro AU217-1050

FITTING-ELBOW, 90

$

$

Currently unavailable

21

Toro AU293797A1

SWITCH ASM

$37.99

$

Usually ships in 3-6 days

0

23

Toro AU121440

INSULATION

$

$

Currently unavailable
