23800 C (2024) - Toro Directional Drill (SN: 315000001 - 315999999) (2015) ENGINE COOLING ASSEMBLY Parts Diagram

Directional Drill

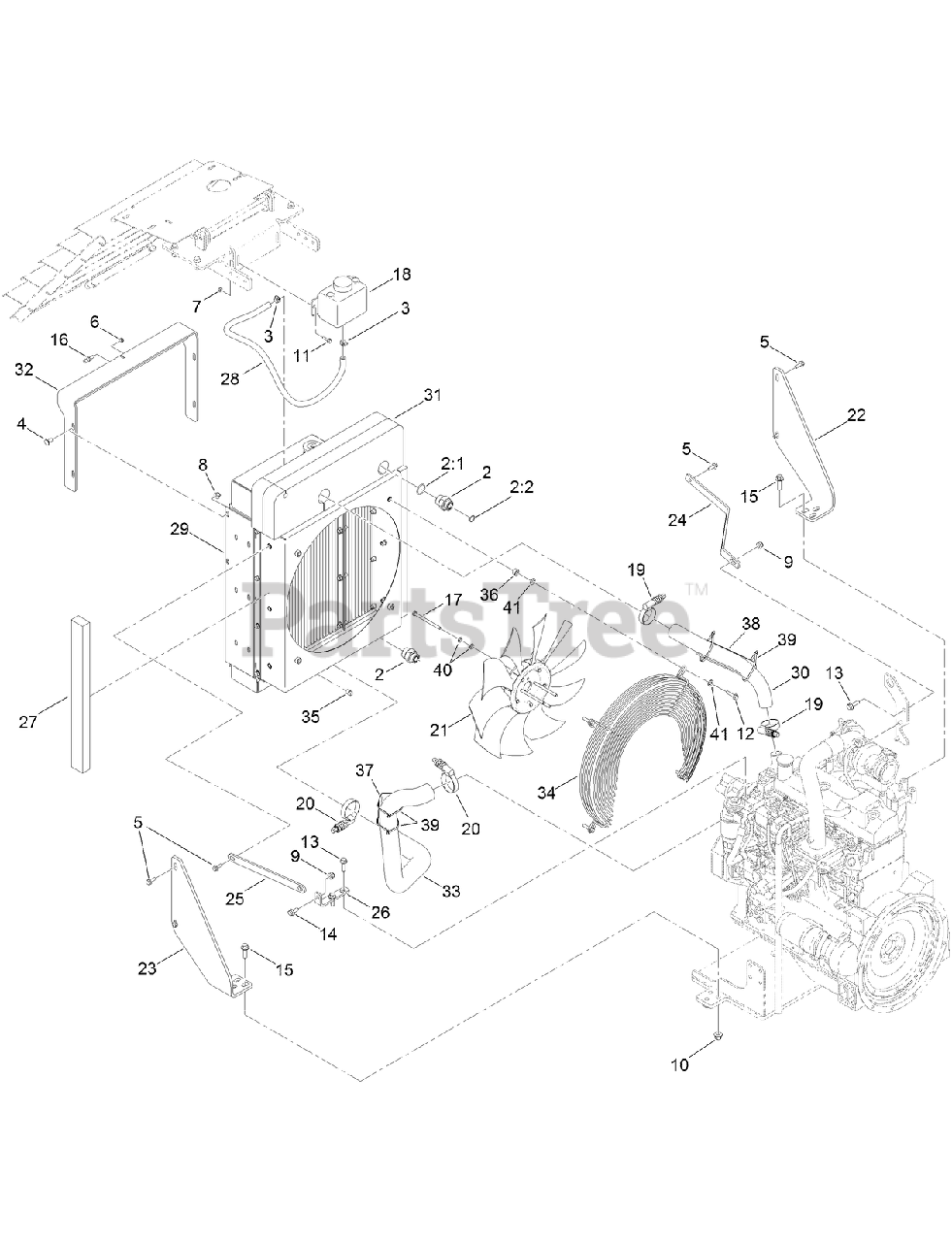

ENGINE COOLING ASSEMBLY Parts Diagram

  • Title
2

Toro 340-91

FITTING-STR

$59.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

2:2

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

3

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

4

Toro 3231-12

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

5

Toro 33104-025

SCREW-HHF

$7.99

$

In Stock, only 2 left!

0

6

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

7

Toro 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

10

Toro 115-1115

NUT-LOCK, HHF

$2.49

$

Usually ships in 3-6 days

0

11

Toro 33103-025

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

12

Toro 33104-035

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

13

Toro 33105-035

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

14

Toro 33105-025

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

15

Toro 33106-040

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

16

Toro AU8HH96100

STUD-BALL

$

$

Currently unavailable

17

Toro 33114-110

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

18

Toro AU109352

TANK-Overflow

$

$

Currently unavailable

19

Toro 121-7536

CLAMP-TORQUE, CONSTANT

$25.99

$

Usually ships in 3-6 days

0

20

Toro AU110569

CLAMP-TORQUE, CONSTANT

$28.99

$

Usually ships in 3-6 days

0

21

Toro AU114234

FAN-19 INCH (10-BLADE)

$

$

Currently unavailable

22

Toro AU114260-03

BRACKET-MOUNT, RADIATOR

$

$

Not available

23

Toro AU114261-03

BRACKET-MOUNT, RADIATOR

$

$

Not available

24

Toro AU114262-03

STRAP-RADIATOR

$

$

Not available

25

Toro AU114263-03

STRAP-RADIATOR

$

$

Not available

26

Toro AU114350-03

PLATE-MOUNT, STRAP

$

$

Not available

27

Toro AU114671

SEAL-FOAM

$

$

Currently unavailable

28

Toro 127-0762

HOSE-COOLANT, OVERFLOW

$19.99

$

Usually ships in 3-6 days

0

29

Toro AU129486

COOLER ASM

$

$

Currently unavailable

30

Toro AU130011

HOSE-UPPER, RADIATOR

$

$

Currently unavailable

31

Toro 130-4473

FOAM-RADIATOR, UPPER

$

$

Currently unavailable

32

Toro AU130029-03

SHOCK MOUNT ASM

$

$

Currently unavailable

33

Toro AU130482

HOSE-LOWER, RADIATOR

$

$

Currently unavailable

34

Toro AU8HX30005-2

GUARD-Fan

$

$

Currently unavailable

35

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

36

Toro 103-3648

SPACER-NOMINAL, 10.5mm

$9.49

$

Usually ships in 3-6 days

0

37

Toro AU112950

PROTECTOR-HOSE

$29.99

$

Usually ships in 3-6 days

0

38

Toro AU112951

PROTECTOR-HOSE, 8 INCH

$

$

Currently unavailable

39

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

40

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

41

Toro 104-2946

WASHER-PLAIN

$

$

Currently unavailable
