23800 C (2024) - Toro Directional Drill (SN: 315000001 - 315999999) (2015) ENGINE BELL HOUSING AND HYDRAULIC PUMP ASSEMBLY Parts Diagram

Directional Drill

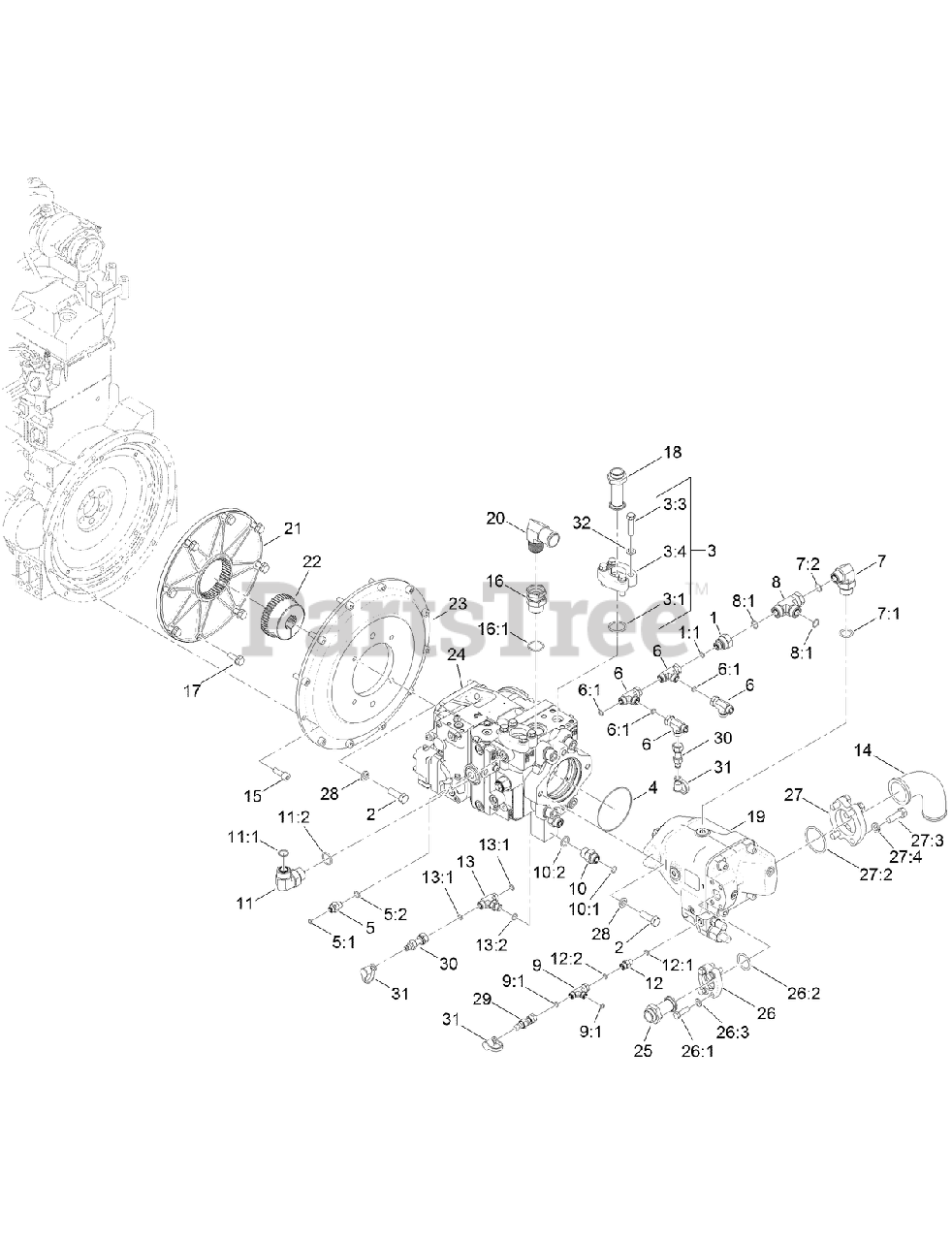

ENGINE BELL HOUSING AND HYDRAULIC PUMP ASSEMBLY Parts Diagram

  • Title
1

Toro 98-7067

FITTING-HYD

$51.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

2

Toro 115-8487

SCREW-HH

$

$

Not available

3

Toro AU114285A1

HYD FLANGE KIT

$79.99

$

Usually ships in 3-6 days

0

3:1

Toro 121-3904

O-RING

$7.49

$

Usually ships in 3-6 days

0

3:3

Toro AU113-372

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

3:4

FLANGE-HALF, CODE 62

Note: Not serviced separately

$

$

Not available

4

Toro 115-3009

O-RING

$4.49

$

Usually ships in 3-6 days

0

5

Toro 340-1

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

5:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

6

Toro 340-115

FITTING-TEE, SWIVEL NUT

$67.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

7

Toro 340-139

FITTING-ELBOW 90

$170.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

7:2

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

8

Toro 340-147

FITTING-HYD, TEE

$132.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

9

Toro 340-151

FITTING-HYD

$106.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-75

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 10

0

10

Toro 340-6

FITTING-STRAIGHT

$20.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

10:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

11

Toro 340-142

FITTING-ELBOW-90

$95.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

11:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

12

Toro 340-92

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

12:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

13

Toro 340-94

ADAPTER

$49.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

13:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

14

Toro 125-4537

END-HOSE

$180.99

$

Usually ships in 3-6 days

0

15

Toro AU862-10030

SCREW-HSH

$1.49

$

Usually ships in 3-6 days

0

16

Toro AU91-2066-16-16S

FITTING-STRAIGHT

$

$

Currently unavailable

16:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

17

Toro 33105-030

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

18

Toro AU8OS51616

ADAPTER-FLANGE, STRAIGHT

$

$

Currently unavailable

19

Toro AU119079

HYD LOAD SENSE PISTON PUMP ASM

$

$

Currently unavailable

20

Toro AU217-166

FITTING-ELBOW, 90

$28.99

$

Usually ships in 3-6 days

0

21

Toro AU8PD92012

COUPLING-DRIVE

$

$

Currently unavailable

22

Toro AU8PD92013

HUB-STEEL

$

$

Currently unavailable

23

Toro AU8PD92014-03

COVER-FLYWHEEL, PUMP MOUNT

$

$

Not available

24

Toro 132-4243

HYD HYDROSTAT PUMP ASM
(Superseded to AU8PH60051)

$

$

Not available

25

Toro AU8OS11616

ADAPTER-FLANGE, STRAIGHT

$

$

Currently unavailable

26

Toro AU8TS46116

SPLIT FLANGE KIT

$

$

Currently unavailable

26:1

Toro 323-44

SCREW-HH

$5.49

$

In Stock, Qty 11

0

26:2

Toro 121-3904

O-RING

$7.49

$

Usually ships in 3-6 days

0

26:3

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

27

Toro 125-4538

FLANGE KIT

$

$

Currently unavailable

27:2

Toro 125-6148

O-RING

$

$

Currently unavailable

27:3

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

27:4

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

28

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

29

Toro 115-8886

NIPPLE-TEST

$81.99

$

Usually ships in 3-6 days

0

30

Toro 86-5480

NIPPLE-TEST

$79.99

$

Usually ships in 3-6 days

0

31

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0

32

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
