23800 C (2024) - Toro Directional Drill (SN: 314000001 - 314999999) (2014) ROTARY HYDRAULIC ASSEMBLY NO. 133-6207-03 Parts Diagram

Directional Drill

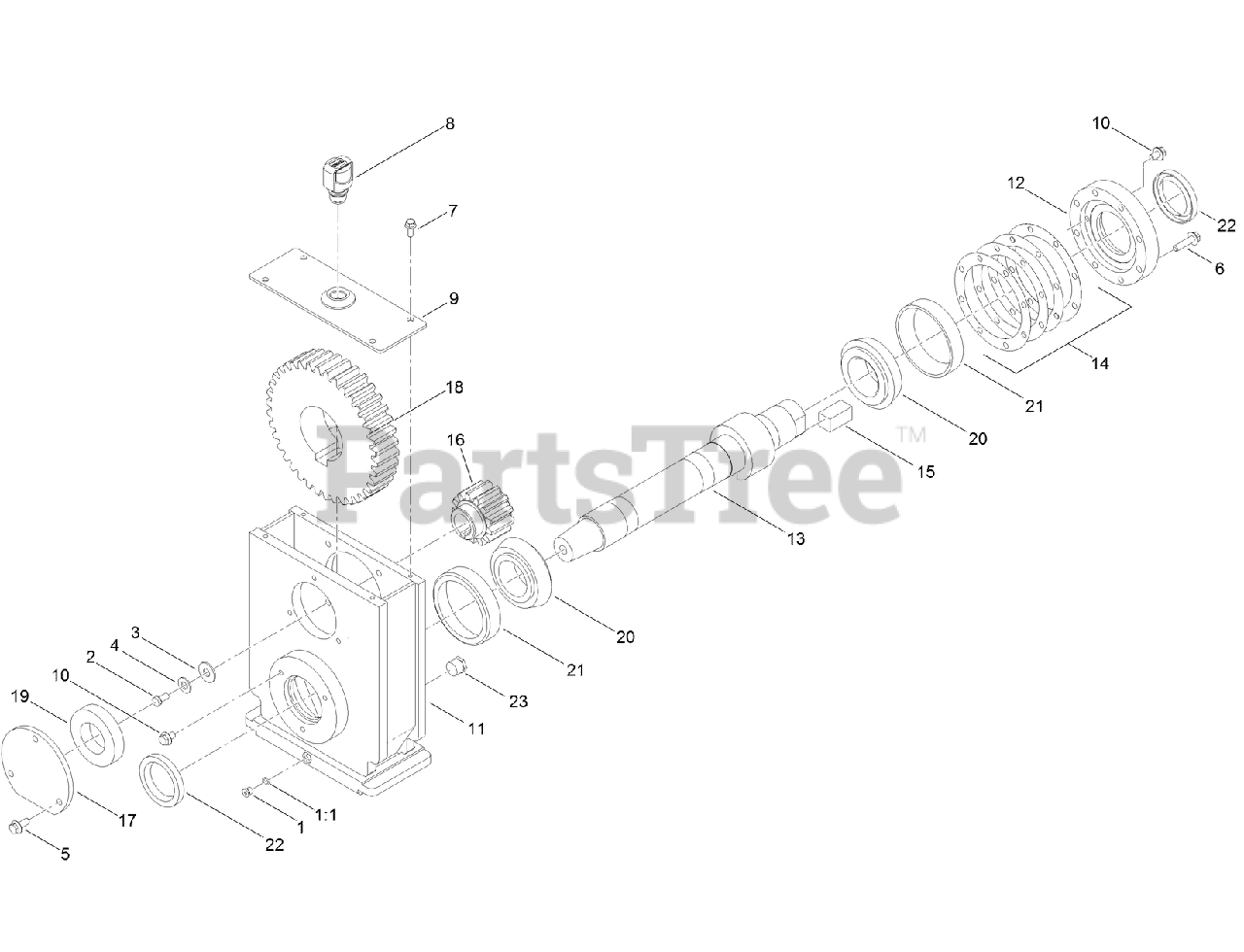

ROTARY HYDRAULIC ASSEMBLY NO. 133-6207-03 Parts Diagram

  • Title

1

Toro 353-990

PLUG ASM

$12.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

2

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

3

Toro AU495-81163

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

5

Toro 33105-025

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

6

Toro 33105-040

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

7

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 3 left!

0

8

Toro 115-9793

BREATHER

$77.99

$

Usually ships in 3-6 days

0

9

Toro 130-4508

ROTARY BOX COVER

$

$

Currently unavailable

10

Toro 33105-016

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

11

Toro AU12GB4403

BOX-ROTARY

$

$

Currently unavailable

12

Toro AU12GB4412

PLATE-BEARING CAP

$

$

Currently unavailable

13

Toro AU12GB4420

SPINDLE-ROTARY

$

$

Currently unavailable

14

Toro AU12GB4425-010

SHIM-ROTARY BEARING (.010 THICK)

$

$

Currently unavailable

15

Toro AU12GB4455

KEY-ROTARY BOX

$

$

Currently unavailable

16

Toro AU12GB4460

GEAR-PINION, ROTARY BOX (13T)

$

$

Currently unavailable

17

Toro AU12GB4461

PLATE-RETAINING, ROTARY BOX

$

$

Currently unavailable

18

Toro AU12GB4465

GEAR-RING, ROTARY BOX (38T)

$

$

Currently unavailable

19

Toro AU8CF40011

BEARING-RADIAL BALL

$

$

Currently unavailable

20

Toro AU8CF63016

CONE-BEARING

$

$

Currently unavailable

21

Toro AU8CF63017

CUP-BEARING

$

$

Currently unavailable

22

Toro AU8HS11033

SEAL-SHAFT

$

$

Currently unavailable

23

Toro AU8PP70008

PLUG-SITE, GLASS

$

$

Currently unavailable
