23800 C (2024) - Toro Directional Drill (SN: 314000001 - 314999999) (2014) ROD LOADER ASSEMBLY Parts Diagram

Directional Drill

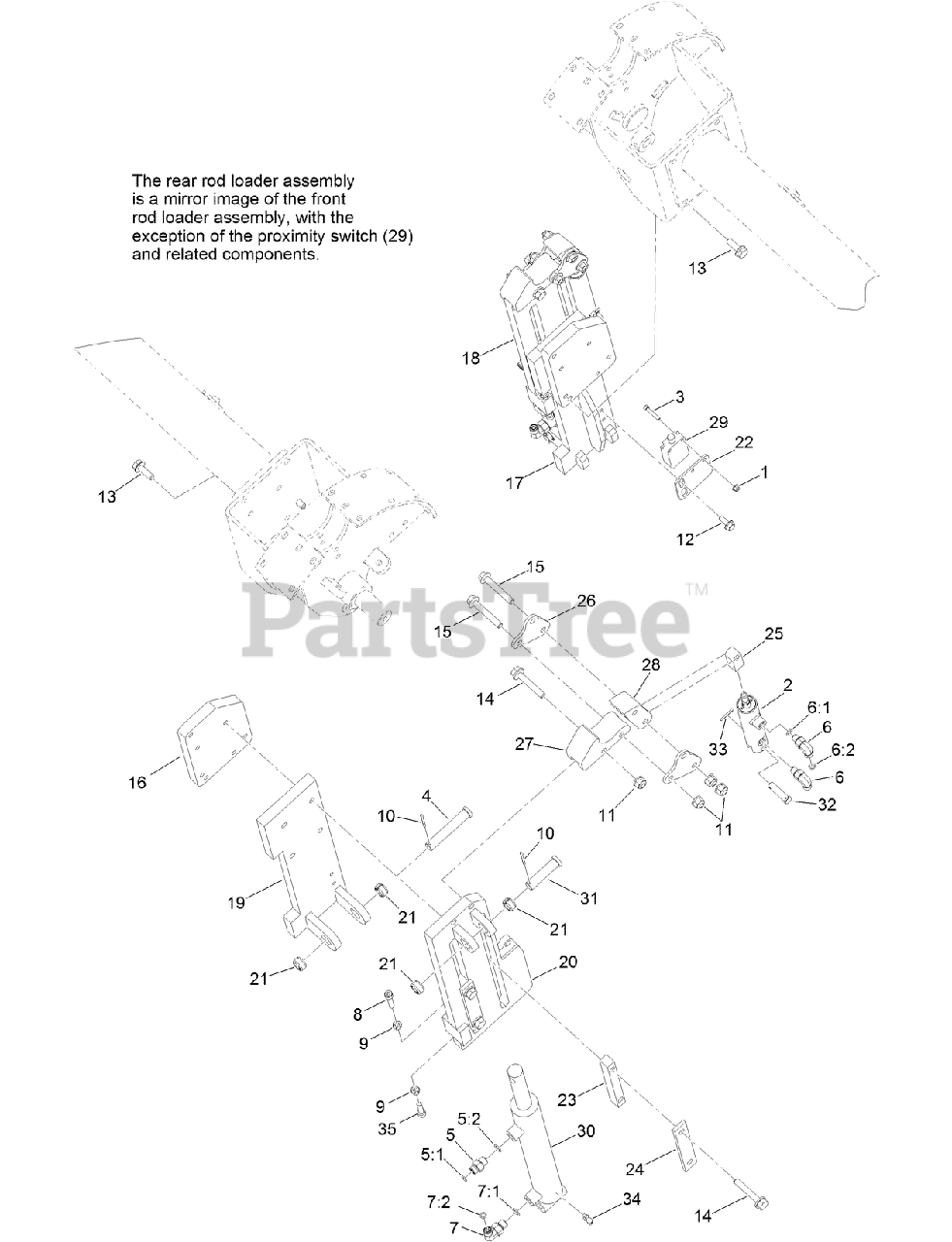

ROD LOADER ASSEMBLY Parts Diagram

  • Title

1

Toro 120-4580

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

2

Toro 125-4463

HYD CYLINDER ASM

$

$

Currently unavailable

3

Toro 127-0952

SCREW-HSH

$

$

Currently unavailable

4

Toro 283-78

PIN-CLEVIS

$10.99

$

Usually ships in 3-6 days

0

5

Toro 340-1

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

5:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

6

Toro 340-132

FITTING-90 DEG

$26.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

6:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

7

Toro 340-82

FITTING-ELBOW 90

$24.99

$

In Stock, only 1 left!

0

7:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

7:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

8

Toro 131-0197

SCREW-HSH

$3.99

$

Usually ships in 3-6 days

0

9

Toro 33014-00

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

10

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

11

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

12

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 3 left!

0

13

Toro 33105-030

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

14

Toro 33105-060

SCREW-HHF

$5.99

$

Usually ships in 3-6 days

0

15

Toro AU100336

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

16

Toro AU109578-03

PLATE-SPACER

$

$

Currently unavailable

17

Toro AU109581-03

ARM-EXTENSION

$

$

Not available

18

Toro 130-4499-03

EXTENSION-SLIDER, REAR

$

$

Currently unavailable

19

Toro AU109731-03

ARM-EXTENSION

$

$

Currently unavailable

20

Toro 130-4498-03

EXTENSION-SLIDER, FRONT

$

$

Currently unavailable

21

Toro AU109762

BUSHING-SPRING

$

$

Currently unavailable

22

Toro AU12GB7334

BRACKET-SENSOR, EXTENSION ARM

$

$

Currently unavailable

23

Toro AU12GB7342-03

GUIDE-EXTENSION ARM

$

$

Currently unavailable

24

Toro AU12GB7343-03

CAP-GUIDE, EXTENSION ARM

$

$

Currently unavailable

25

Toro AU12GB7347

ROD-EYE, CYLINDER

$

$

Currently unavailable

26

Toro AU12GB7379

PLATE-GRIPPER, ROTATE

$

$

Currently unavailable

27

Toro AU20GB7358

INSERT-GRIPPER, FIXED

$

$

Currently unavailable

28

Toro AU20GB7359

INSERT-GRIPPER, ROTATE

$

$

Currently unavailable

29

Toro AU8EP65159

SWITCH-PROXIMITY

$

$

Currently unavailable

30

Toro 132-5748

HYD CYLINDER ASM

$

$

Currently unavailable

31

Toro AUH32920

PIN-CLEVIS

$10.99

$

Usually ships in 3-6 days

0

32

Toro 127-0889

PIN-CLEVIS

$

$

Currently unavailable

33

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

34

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

35

Toro 94-3559

SCREW-HSH

$8.99

$

Usually ships in 3-6 days

0
