23800 C (2024) - Toro Directional Drill (SN: 314000001 - 314999999) (2014) HYDRAULIC CYLINDER ASSEMBLY NO. AU109341 Parts Diagram

Directional Drill

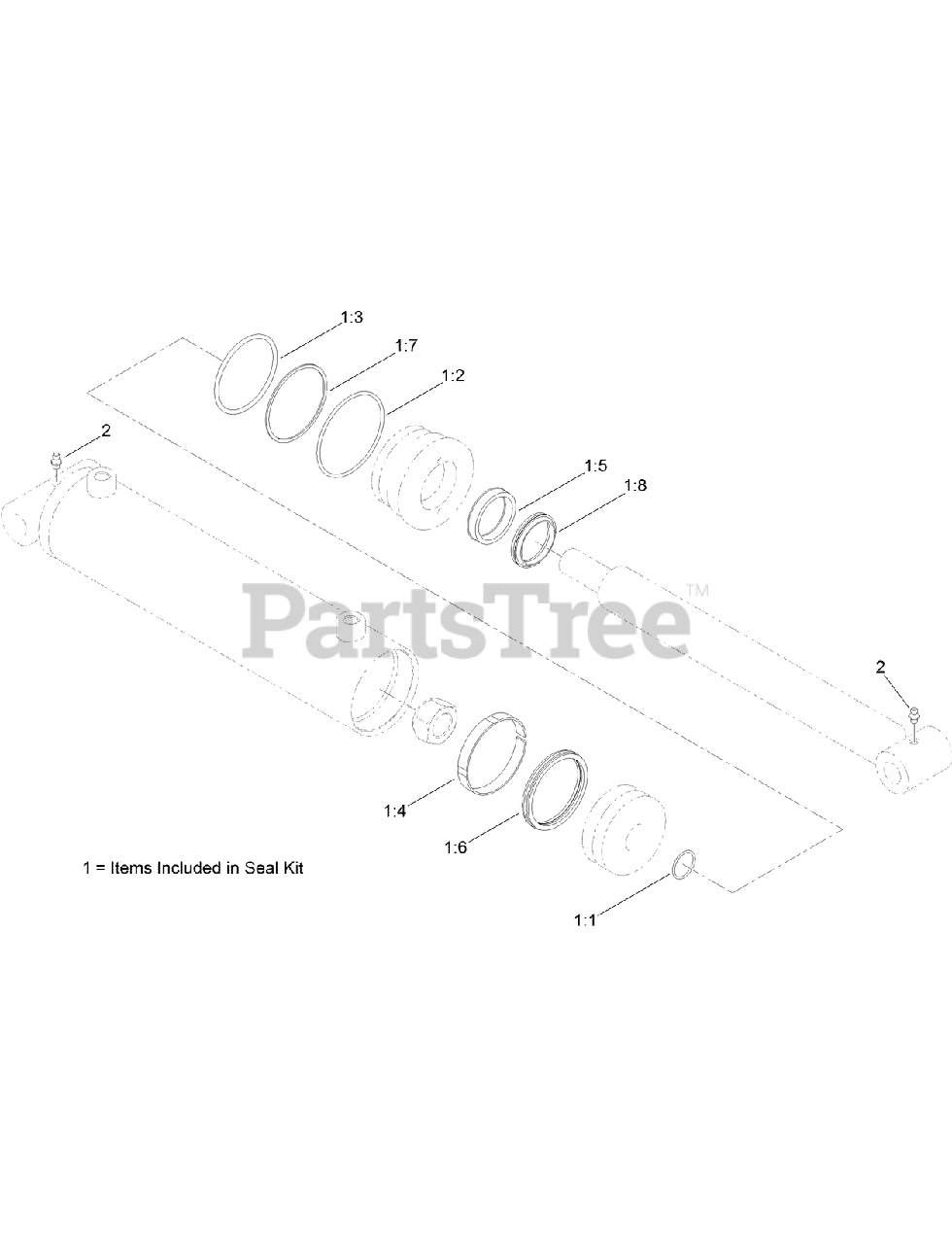

HYDRAULIC CYLINDER ASSEMBLY NO. AU109341 Parts Diagram

  • Title

1

Toro 130-8351

SEAL KIT

$

$

Currently unavailable

1:1

O-RING

Note: Not serviced separately

$

$

Not available

1:2

O-RING

Note: Not serviced separately

$

$

Not available

1:3

O-RING

Note: Not serviced separately

$

$

Not available

1:4

RING-PISTON BEARING

Note: Not serviced separately

$

$

Not available

1:5

Seal-U Cup

Note: Not serviced separately

$

$

Not available

1:6

SEAL-CROWN

Note: Not serviced separately

$

$

Not available

1:7

Washer-Back Up

Note: Not serviced separately

$

$

Not available

1:8

WIPER

Note: Not serviced separately

$

$

Not available

2

Toro 302-52

FITTING-GREASE

$6.49

$

In Stock, Qty 20+
