23800 C (2024) - Toro Directional Drill (SN: 314000001 - 314999999) (2014) HOOD ASSEMBLY Parts Diagram

Directional Drill

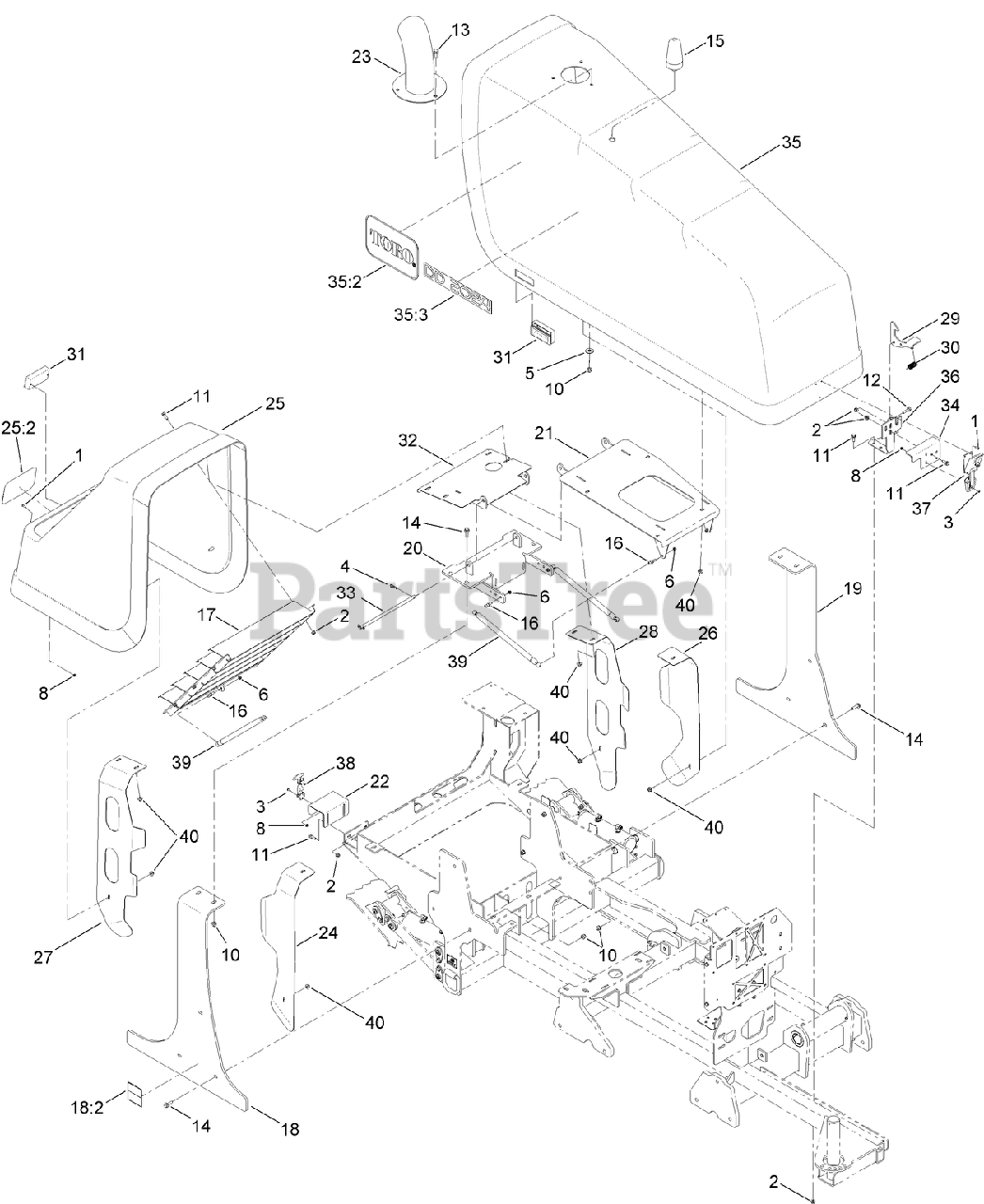

HOOD ASSEMBLY Parts Diagram

  • Title
1

Toro 104-2408

SCREW-HSBH

$2.49

$

Usually ships in 3-6 days

0

2

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

3

Toro 115-9830

SCREW-HSBH

$0.99

$

Usually ships in 3-6 days

0

4

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 6

0

5

Toro AU495-81163

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

6

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

8

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, only 3 left!

0

10

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

11

Toro 33104-025

SCREW-HHF

$7.49

$

In Stock, only 2 left!

0

12

Toro 33104-035

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

13

Toro 33105-030

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

14

Toro 33105-035

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

15

Toro 125-4528

LIGHT-STROBE

$

$

Not available

16

Toro AU8HH96100

STUD-BALL

$

$

Currently unavailable

17

$

$

Not available

18

Toro 127-0920

HOOD MOUNT ASM

$

$

Currently unavailable

18:2

Toro 125-6107

DECAL-WARNING, CRUSHING

$

$

Currently unavailable

19

Toro AU108377-03

PLATE-MOUNT, HOOD

$

$

Not available

20

Toro AU109125-03

SUPPORT-SHROUD

$

$

Not available

21

Toro AU109340-03

MOUNT-FRONT, HOOD

$

$

Not available

22

Toro AU109344-03

PLATE-REAR, HOOD STOP

$

$

Not available

23

Toro AU110186-03

EXHAUST-STACK

$

$

Not available

24

Toro AU110187-03

PLATE-GUIDE

$

$

Not available

25

Toro 130-4493

REAR HOOD ASM

$

$

Currently unavailable

25:2

Toro 62-7400

DECAL

$26.99

$

Usually ships in 3-6 days

0

26

Toro AU110280-03

PLATE-GUIDE

$

$

Not available

27

Toro AU110289-03

PLATE-GUIDE

$

$

Not available

28

Toro AU110290-03

PLATE-GUIDE

$

$

Not available

29

Toro AU111869-03

HOOK-HOOD, SAFETY LATCH

$

$

Not available

30

Toro AU112966

SPRING-TENSION

$

$

Currently unavailable

31

Toro AU121497

HANDLE-PULL, FLUSH

$

$

Currently unavailable

32

Toro AU121540-03

HINGE-REAR, HOOD

$

$

Not available

33

Toro AU12GB2324

ROD-HINGE, HOOD

$

$

Currently unavailable

34

Toro AU130505-03

STOP-FRONT, HOOD

$

$

Currently unavailable

35

Toro 127-0993

FRONT HOOD ASM

$

$

Not available

35:2

$51.99

$

Usually ships in 3-6 days

0

35:3

$

$

Currently unavailable

36

Toro AU130543-03

LATCH-SAFETY, HOOD

$

$

Currently unavailable

37

Toro AU130765

LATCH-DRAW, LOCKABLE

$

$

Not available

38

Toro ST35289

LATCH-FLEX, DRAW

$56.99

$

Usually ships in 3-6 days

0

39

Toro AU32GB5110

SPRING-GAS

$

$

Currently unavailable

40

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
