23800 A (2024) - Toro Directional Drill (SN: 315000001 - 315999999) (2015) TOOL JOINT LUBE APPLICATOR ASSEMBLY Parts Diagram

Directional Drill

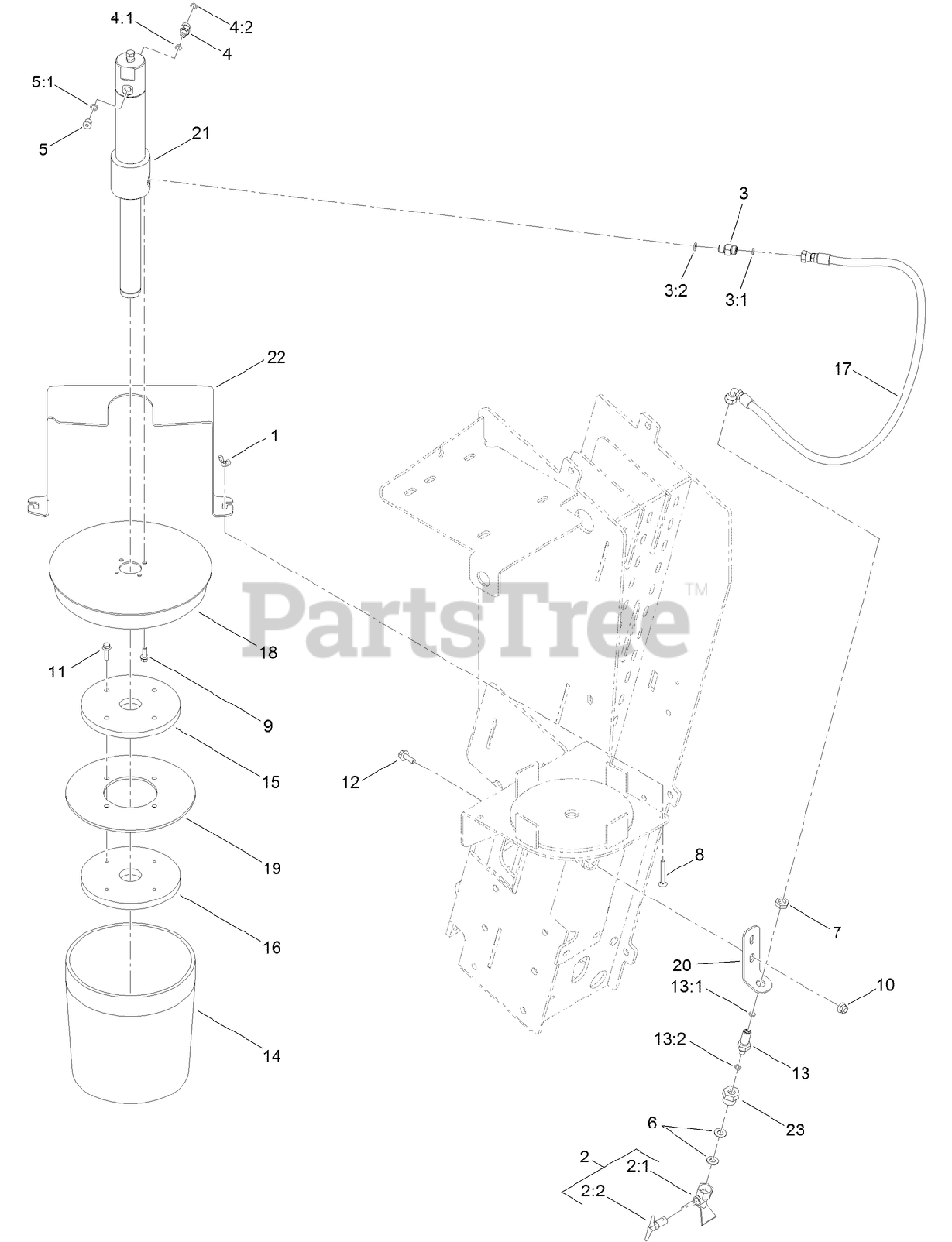

TOOL JOINT LUBE APPLICATOR ASSEMBLY Parts Diagram

  • Title
1

Toro 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

2

Toro 125-4539

SPRAY NOZZLE ASM

$

$

Currently unavailable

2:1

Toro 125-4540

NOZZLE-SPRAY, AIRLESS

$

$

Currently unavailable

2:2

Toro 125-4541

ORIFICE INSERT ASM

$

$

Currently unavailable

3

Toro 340-1

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

3:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

4

Toro 340-92

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

4:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

5

Toro 353-990

PLUG ASM

$12.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

6

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

7

Toro 340-78

NUT-LOCK

$2.99

$

Usually ships in 3-6 days

0

8

Toro 3229-8

SCREW-CARR

$4.99

$

Usually ships in 3-6 days

0

9

Toro 120-9678

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

10

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

11

Toro 33103-025

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

12

Toro 33104-025

SCREW-HHF

$7.49

$

In Stock, only 2 left!

0

13

Toro AU8OA90404

FITTING-STRAIGHT

$

$

Currently unavailable

13:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

13:2

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

14

Toro AU01DT9904

COMPOUND-THREAD

$

$

Not available

15

$

$

Not available

16

$

$

Currently unavailable

17

Toro AU108645

HOSE-HYD

$

$

Currently unavailable

18

Toro AU108790-03

COVER-APPLICATOR, LUBE

$

$

Not available

19

Toro AU108814

SEAL-RUBBER, FOLLOWER

$

$

Not available

20

Toro AU108816-03

BRACKET-NOZZLE GREASER

$

$

Not available

21

Toro AU108837

HYD GREASE PUMP ASM

$

$

Not available

22

Toro AU109840-03

TIEDOWN-COVER, GREASE

$

$

Not available

23

Toro AU8SA31004

REDUCER-STRAIGHT, THREADED

$

$

Currently unavailable
