23800 A (2024) - Toro Directional Drill (SN: 315000001 - 315999999) (2015) ROD BOX BEARING AND CYLINDER ASSEMBLY Parts Diagram

Directional Drill

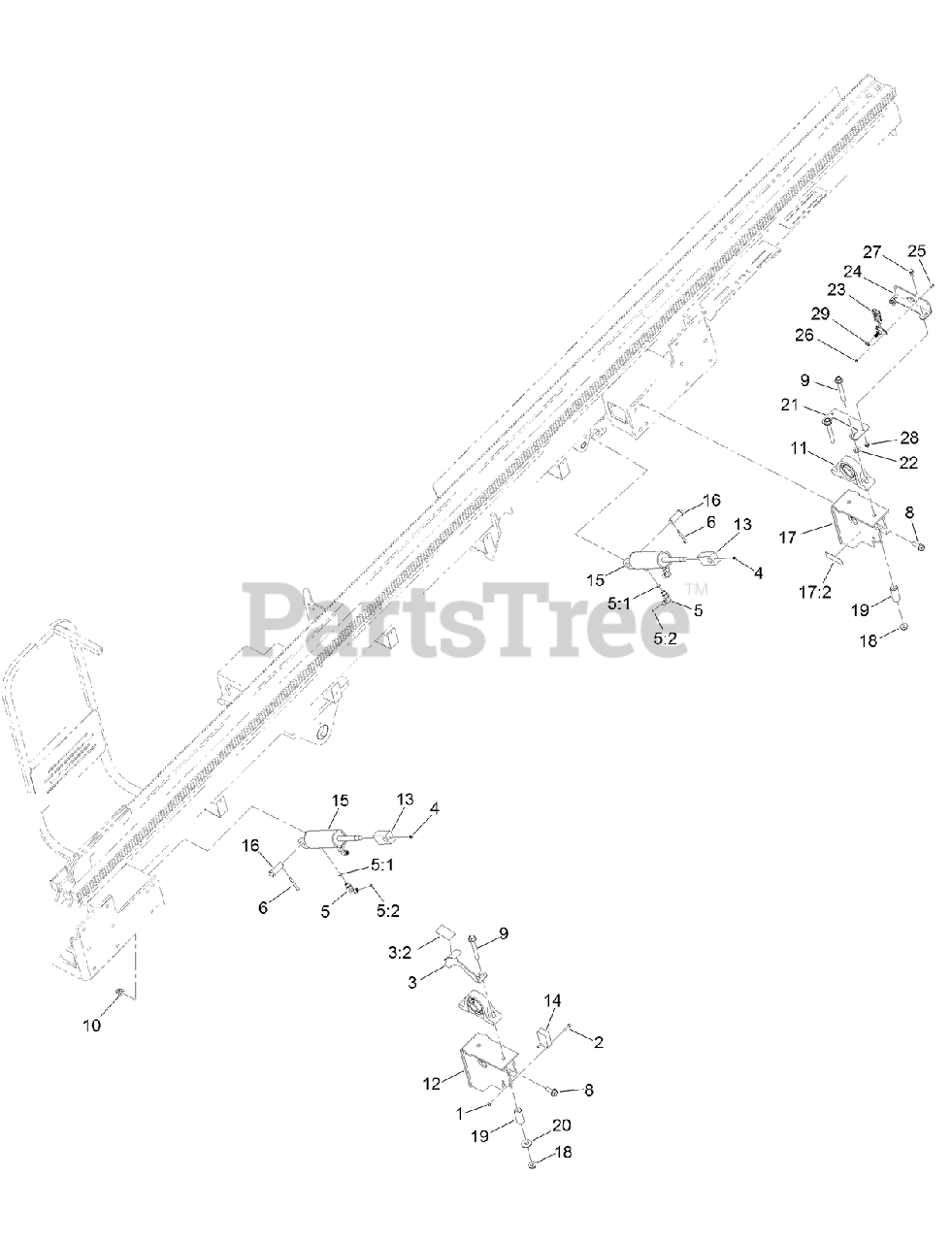

ROD BOX BEARING AND CYLINDER ASSEMBLY Parts Diagram

  • Title
1

Toro 120-4580

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

2

Toro 127-0952

SCREW-HSH

$

$

Currently unavailable

3

Toro 127-0917

ROW INDICATOR ASM

$

$

Currently unavailable

3:2

Toro 125-6122

DECAL-ROW SELECTOR

$

$

Currently unavailable

4

Toro 302-57

FITTING-GREASE

$1.99

$

Usually ships in 3-6 days

0

5

Toro 340-82

FITTING-ELBOW 90

$24.99

$

In Stock, only 1 left!

0

5:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

5:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

6

Toro 3272-30

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

8

Toro AU100416

SCREW-HFH

$3.99

$

Usually ships in 0 days

0

9

Toro 131-0134

SCREW-HHF

$

$

Currently unavailable

10

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

11

Toro AU109963

BEARING-PILLOW

$

$

Currently unavailable

12

Toro AU109966-03

MOUNT-BEARING

$

$

Not available

13

Toro AU12GB7338-03

EYE-ROD, CYLINDER

$

$

Currently unavailable

14

Toro AU8EP65159

SWITCH-PROXIMITY

$

$

Currently unavailable

15

Toro AU8HC20005

HYD CYLINDER ASM

$

$

Currently unavailable

16

Toro AUH30262

PIN-CLEVIS

$14.99

$

Usually ships in 3-6 days

0

17

Toro 131-0138

BEARING MOUNT ASM

$

$

Currently unavailable

17:2

Toro 125-6143

DECAL-ROYALTY

$

$

Currently unavailable

18

Toro 131-0135

NUT-HEX FLANGE

$

$

Currently unavailable

19

Toro 99-4072

SPACER

$34.99

$

Usually ships in 3-6 days

0

20

Toro AU495-81163

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

21

$

$

Currently unavailable

22

Toro 106-9888

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

23

Toro 131-0177

SENSOR-ROTARY

$

$

Not available

24

Toro 132-4179-03

BRACKET-SENSOR, ROTARY

$

$

Currently unavailable

25

Toro 60-6500

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

26

Toro 127-2018

NUT-HHF

$13.99

$

Usually ships in 3-6 days

0

27

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 3 left!

0

28

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

29

Toro 112-8617

NUT-HEX

$

$

Currently unavailable
