23800 A (2024) - Toro Directional Drill (SN: 315000001 - 315999999) (2015) 9 SECTION AND 4 SPOOL VALVE ASSEMBLY Parts Diagram

Directional Drill

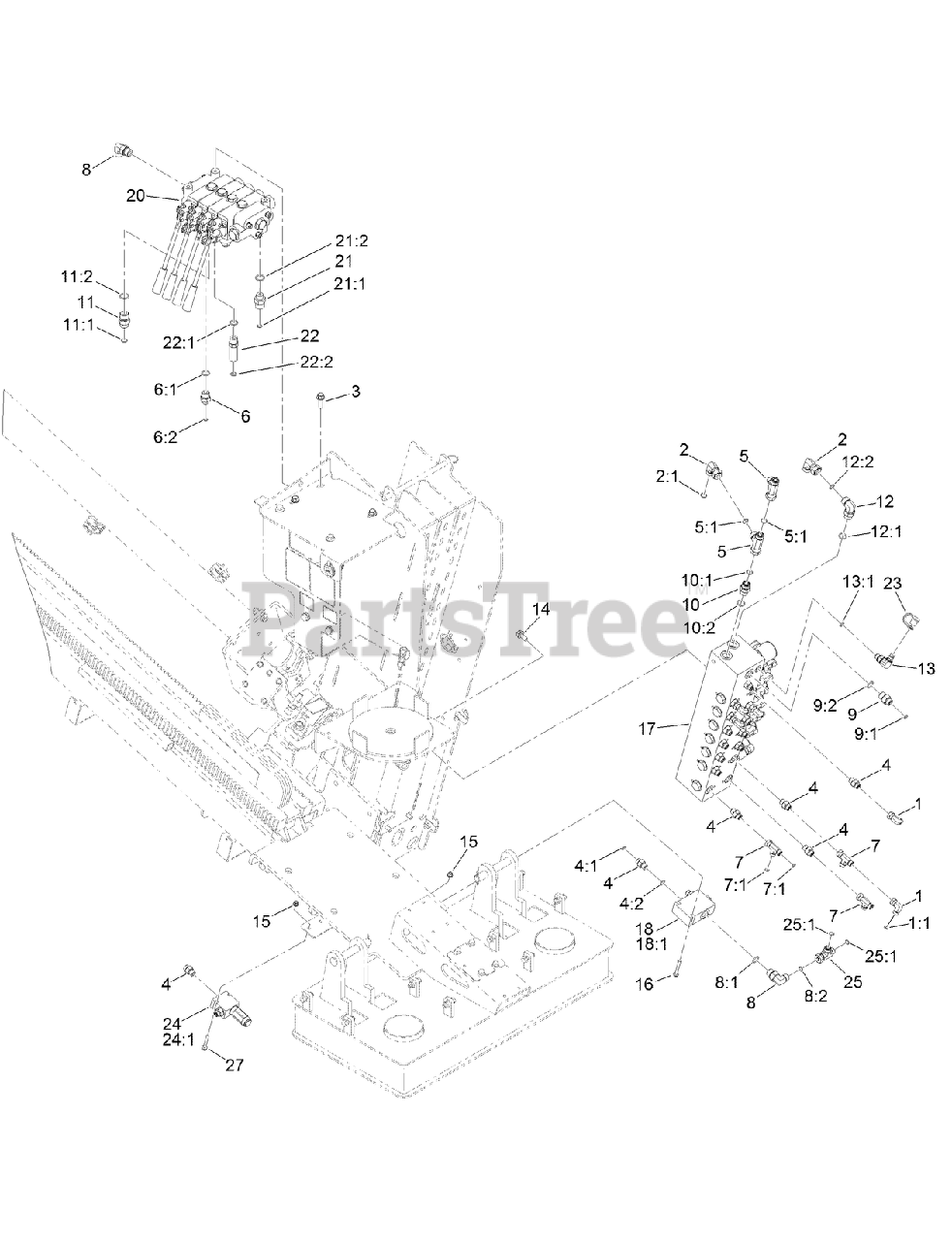

9 SECTION AND 4 SPOOL VALVE ASSEMBLY Parts Diagram

  • Title

1

Toro 92-2745

FITTING-ADAPTOR

$99.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

2

Toro 94-6031

FITTING-HYD

$81.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

3

Toro 119-4061

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

4

Toro 340-1

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

4:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

5

Toro 340-104

FITTING-HYD, TEE

$120.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

6

Toro 340-133

FITTING-STR

$47.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

6:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

7

Toro 340-151

FITTING-HYD

$106.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-75

O-Ring
(Superseded to 237-21)

$0.99

$

In Stock, Qty 10

0

8

Toro 340-18

FITTING-HYD, 90 DEG

$41.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

8:2

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

9

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

9:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

10

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

10:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

10:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

11

Toro 340-6

FITTING-STRAIGHT

$20.99

$

In Stock, only 2 left!

0

11:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

11:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

12

Toro 340-98

FITTING-ELBOW-90 DEG

$33.99

$

In Stock, only 2 left!

0

12:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

12:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

13

Toro 115-9147

FITTING-ELBOW, 90 DEG

$95.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

14

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

15

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

16

Toro 33103-050

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

17

Toro AU111494

9 SECTION HYD VALVE ASM

$

$

Not available

18

Toro AU112323

HYD FLOW DIVIDER VALVE ASM

$

$

Currently unavailable

18:1

Toro 131-8637

SEAL KIT

Note: Not illustrated

$

$

Currently unavailable

20

Toro AU8HV80159

4 SPOOL HYD VALVE ASM

$

$

Currently unavailable

21

Toro 340-141

FITTING-HYD, STRAIGHT

$34.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

21:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

22

Toro 94-2628

FITTING-STR
(Superseded to 119-4854)

$73.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

22:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 16

0

23

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0

24

Toro 131-0119

VALVE-RELIEF

$

$

Currently unavailable

24:1

Toro 105-9156

SEAL KIT

$20.99

$

Usually ships in 3-6 days

0

25

Toro 340-115

FITTING-TEE, SWIVEL NUT

$67.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

27

Toro 33103-045

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0
