23800 (2024) - Toro Directional Drill (SN: 313000001 - 313000500) (2013) ROD BOX AND GUARD ASSEMBLY Parts Diagram

Directional Drill

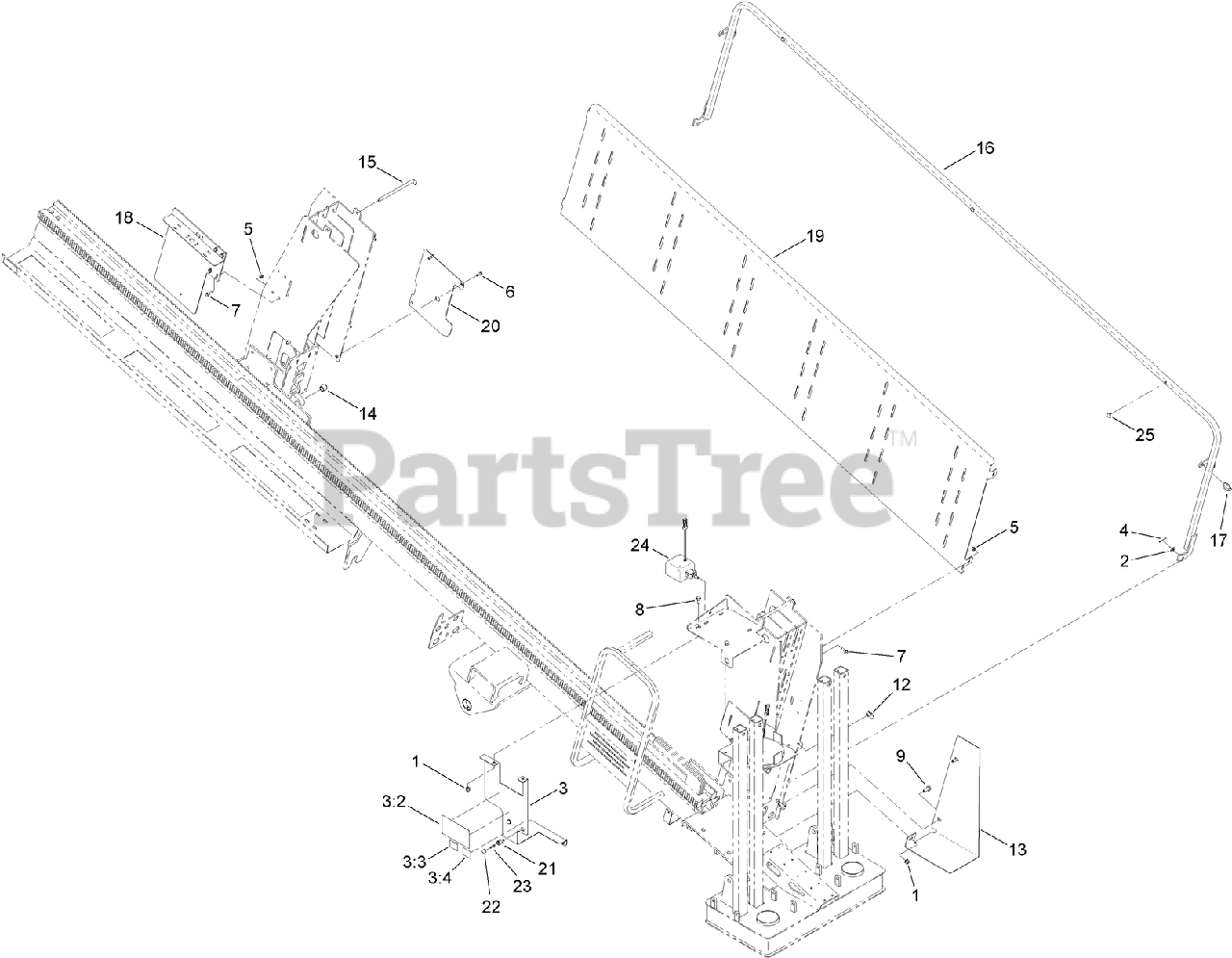

ROD BOX AND GUARD ASSEMBLY Parts Diagram

  • Title

1

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

2

Toro 106-9888

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

3

Toro 127-0916

GUARD PLATE ASM

$

$

Currently unavailable

3:2

Toro 125-6111

DECAL-STAKEDOWN SET UP

$

$

Currently unavailable

3:3

Toro 125-6123

DECAL-PIPE RETURN, CLEAR

$

$

Currently unavailable

3:4

Toro 125-6124

DECAL-PIPE BREAKOUT, CLEAR

$

$

Currently unavailable

4

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

5

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

6

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 3 left!

0

7

Toro 33104-025

SCREW-HHF

$7.49

$

In Stock, only 2 left!

0

8

Toro 33105-025

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

9

Toro 33105-030

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

12

Toro AU100863

NUT-U

$

$

Currently unavailable

13

Toro AU109021-03

COVER-SIDE

$

$

Not available

14

Toro AU109676

BUSHING-SPRING

$

$

Currently unavailable

15

Toro AU109894

PIN

$

$

Currently unavailable

16

Toro AU109905-01

GUARD

$

$

Not available

17

Toro AU109970

PIN-SNAP RING

$

$

Currently unavailable

18

Toro AU124738-03

PLATE-MOUNT, SWITCH

$

$

Not available

19

Toro AU129871-03

PANEL-ROD BOX

$

$

Currently unavailable

20

Toro AU12GB7390-03

GUARD-ELEVATOR

$

$

Currently unavailable

21

Toro AU8EO21401

TYPE T-2 SOCKET ASM

$

$

Currently unavailable

22

Toro AU8EO21403

LENS-DOME, FLUTED GREEN (TYPE T2)

$

$

Currently unavailable

23

Toro 122-0224

LAMP-LED

$

$

Currently unavailable

24

Toro 122-0144

LIGHT-WORK

$

$

Currently unavailable

25

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0
