23800 (2024) - Toro Directional Drill (SN: 313000001 - 313000500) (2013) ELECTRICAL ASSEMBLY Parts Diagram

Directional Drill

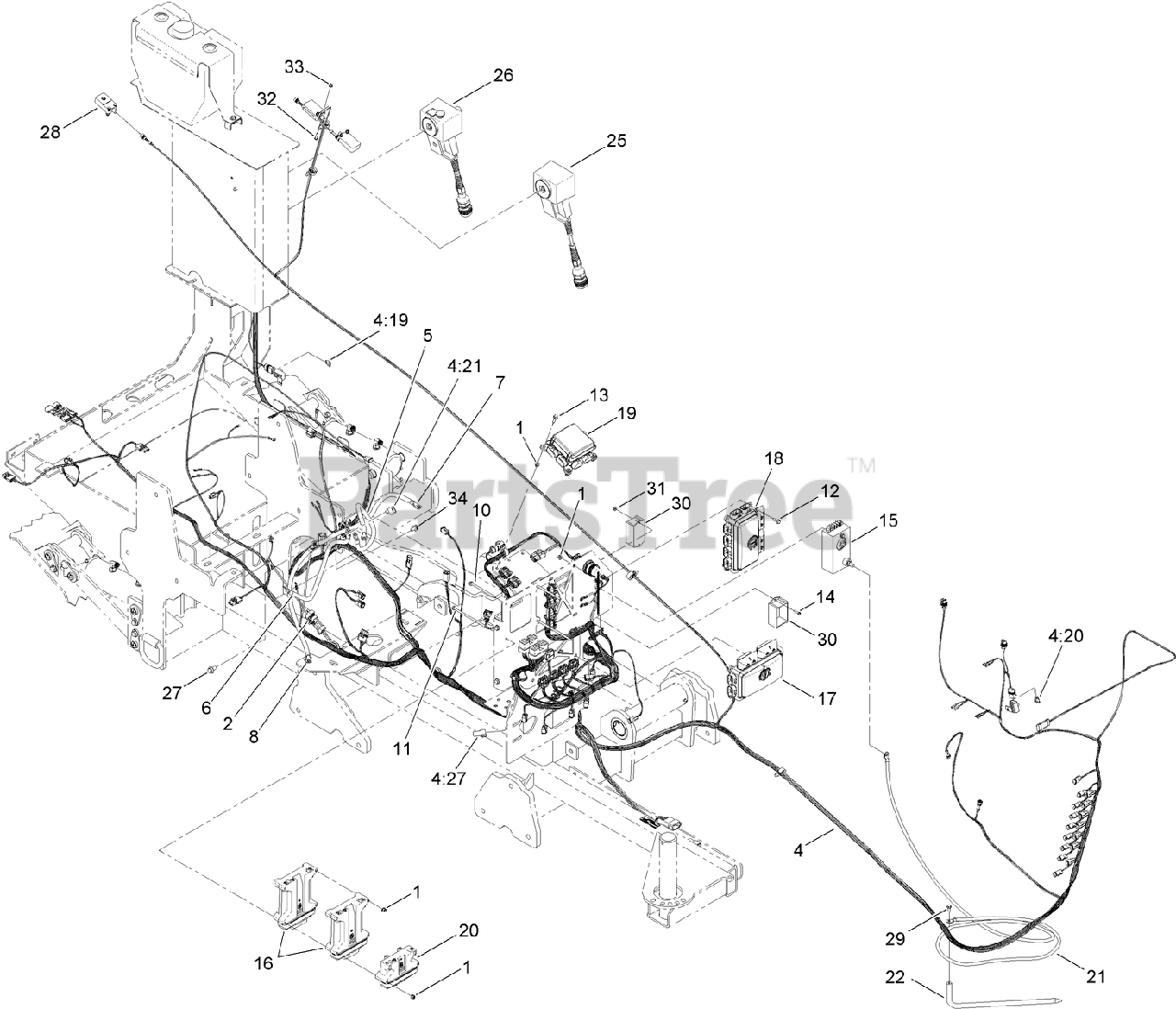

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

2

Toro 99-3441

HARNESS-WIRE, FUSIBLE LINK

$157.99

$

Usually ships in 3-6 days

0

4

Toro 121-6586

HARNESS-WIRE, MAIN

$

$

Currently unavailable

4:19

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

4:20

Toro 110928

FUSE-BLADE, 5 AMP

$8.49

$

Usually ships in 3-6 days

0

4:21

Toro 100-4918

DIODE

$21.99

$

In Stock, only 1 left!

0

4:27

Toro 32180-043

RESISTOR-120 OHM

$28.99

$

Usually ships in 3-6 days

0

5

Toro 122-0080

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

6

Toro 122-0081

CABLE-BATTERY, POSITIVE

$75.99

$

Usually ships in 3-6 days

0

7

Toro 122-0082

CABLE-BATTERY, NEGATIVE

$75.99

$

Usually ships in 3-6 days

0

8

Toro 122-0083

CABLE-BATTERY, NEGATIVE

$

$

Currently unavailable

10

Toro 125-4526

SCREW-HHF

$

$

Currently unavailable

11

Toro 125-4527

SCREW-HHF

$

$

Currently unavailable

12

Toro 33103-020

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

13

Toro 33103-025

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

14

Toro 106-9169

SCREW-HWH

$7.99

$

In Stock, only 3 left!

0

15

Toro AU8EE27103

RELAY

$

$

Currently unavailable

16

Toro AU103217

CONTROLLER-MICRO, 50-PIN

$4159.99

$

Usually ships in 3-6 days

0

17

Toro AU113667

BOX-VEC, MAIN (A)

$

$

Currently unavailable

18

Toro AU113668

BOX-VEC, MAIN (B)

$

$

Currently unavailable

19

Toro AU113669

BOX-VEC, MAIN (C)

$

$

Currently unavailable

20

Toro AU117892

COMPUTER-EXPANDER, OUTPUT

$

$

Not available

21

Toro AU124406

CABLE-ALERT, STRIKE

$

$

Currently unavailable

22

Toro AU109224

BAR-STAKE, GROUND

$

$

Currently unavailable

25

Toro 125-1627

LIFE JACKET ASM

$

$

Currently unavailable

26

Toro 125-1629

TRAVEL PENDANT ASM

$

$

Not available

27

Toro 33105-020

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

28

Toro AU8EP65159

SWITCH-PROXIMITY

$

$

Currently unavailable

29

Toro 114-8414

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

30

Toro AU115133

CONNECTOR-PACK, RESISTOR

$

$

Currently unavailable

31

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

32

Toro 127-0952

SCREW-HSH

$

$

Currently unavailable

33

Toro 120-4580

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

34

Toro 32180-031

CLIP-TREE (W/TIE)

$8.99

$

Usually ships in 3-6 days

0

99

Toro AU8EE27104

TESTER-ZAPALERT

Note: Not illustrated

$

$

Currently unavailable
