238 - Husqvarna Chainsaw (1987-11) Oil Pump/Clutch Parts Diagram

Chainsaw

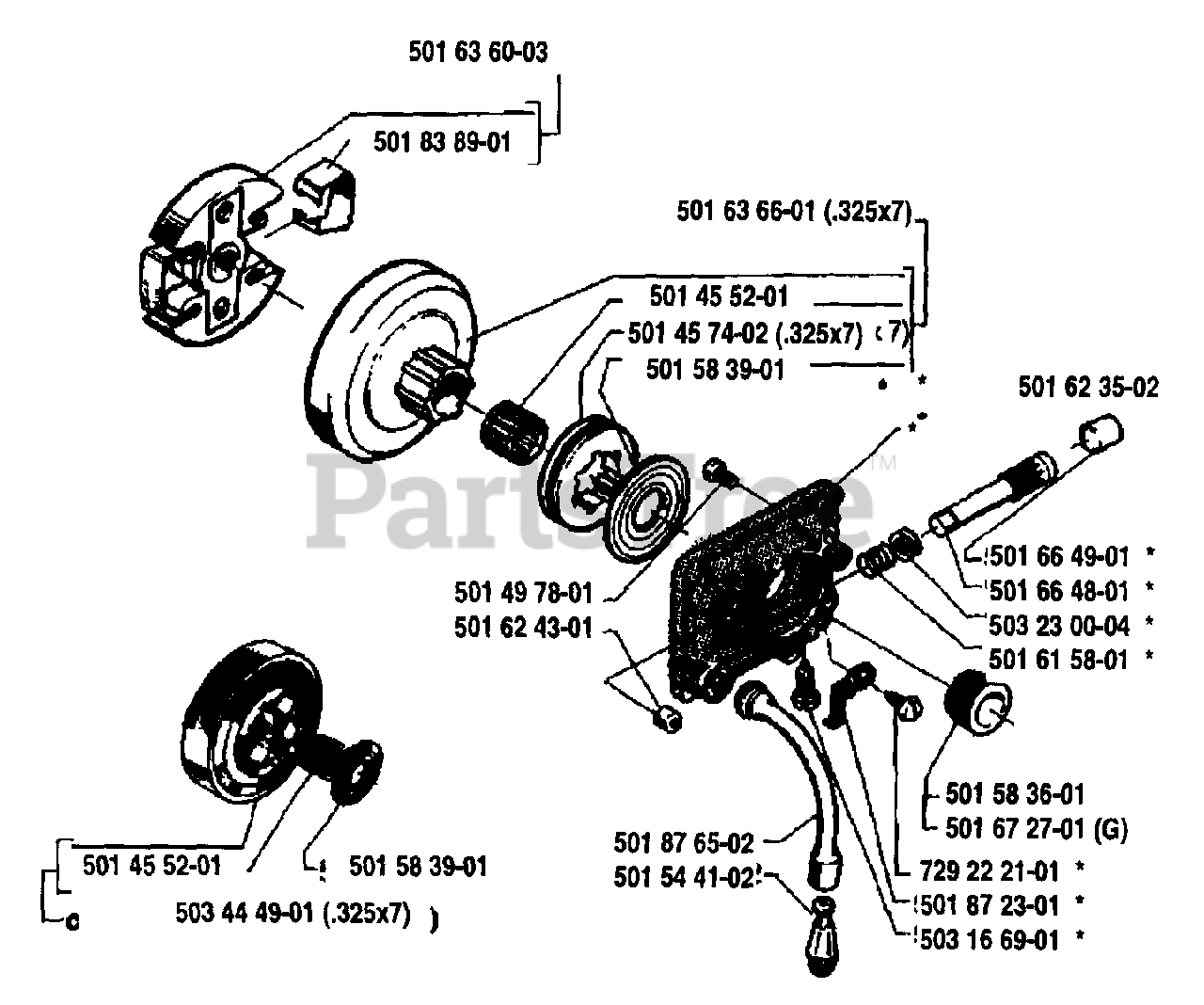

Oil Pump/Clutch Parts Diagram

  • Title
501636003

Husqvarna 501636003

CLUTCH ASS'Y
(Superseded to 503657101)

$

$

Not available

501838901

$

$

Not available

501636601

Husqvarna 501636601

REPL BY 501 63 66-02
(Superseded to 501636604)

$

$

Not available

501455201

Husqvarna 501455201

19535 BEARING
(Superseded to 640200038)

$

$

Not available

501457401

Husqvarna 501457401

REPL BY 501 45 74-02
(Superseded to 640200010)

$8.49

$

In Stock, Qty 10

0

501583901

$

$

Not available

501497801

Husqvarna 501497801

SCREW
(Superseded to 725529406)

$5.99

$

In Stock, only 2 left!

0

501624301

$

$

Not available

501623502

$

$

Not available

501664901

$

$

Not available

501664801

Husqvarna 501664801

PUMP PLUNGER

$

$

Not available

503230004

Husqvarna 503230004

WASHER 6.1X9

$4.99

$

Usually ships in 3-10 days

0

501615801

$6.99

$

Usually ships in 3-10 days

0

$

$

Currently unavailable

501544102

Husqvarna 501544102

OIL SCREEN

$17.99

$

In Stock, only 1 left!

0

501583601

Husqvarna 501583601

GEAR WHEEL

$

$

Not available

$

$

Currently unavailable

729222101

Husqvarna 729222101

SCREW CSK B4X6

$

$

Not available

501872301

Husqvarna 501872301

CATCH ADJ.SCREW

$

$

Not available

501455201

Husqvarna 501455201

19535 BEARING
(Superseded to 640200038)

$

$

Not available

501583901

$

$

Not available

503444901

Husqvarna 503444901

29105 DRUM
(Superseded to 640200097)

$

$

Not available

503166901

$

$

Not available
