2375 LE - Poulan Wildthing Chainsaw, Type 1 (2008-03) Handle, Chassis & Bar Assembly Type 1 Parts Diagram

Wildthing Chainsaw, Type 1

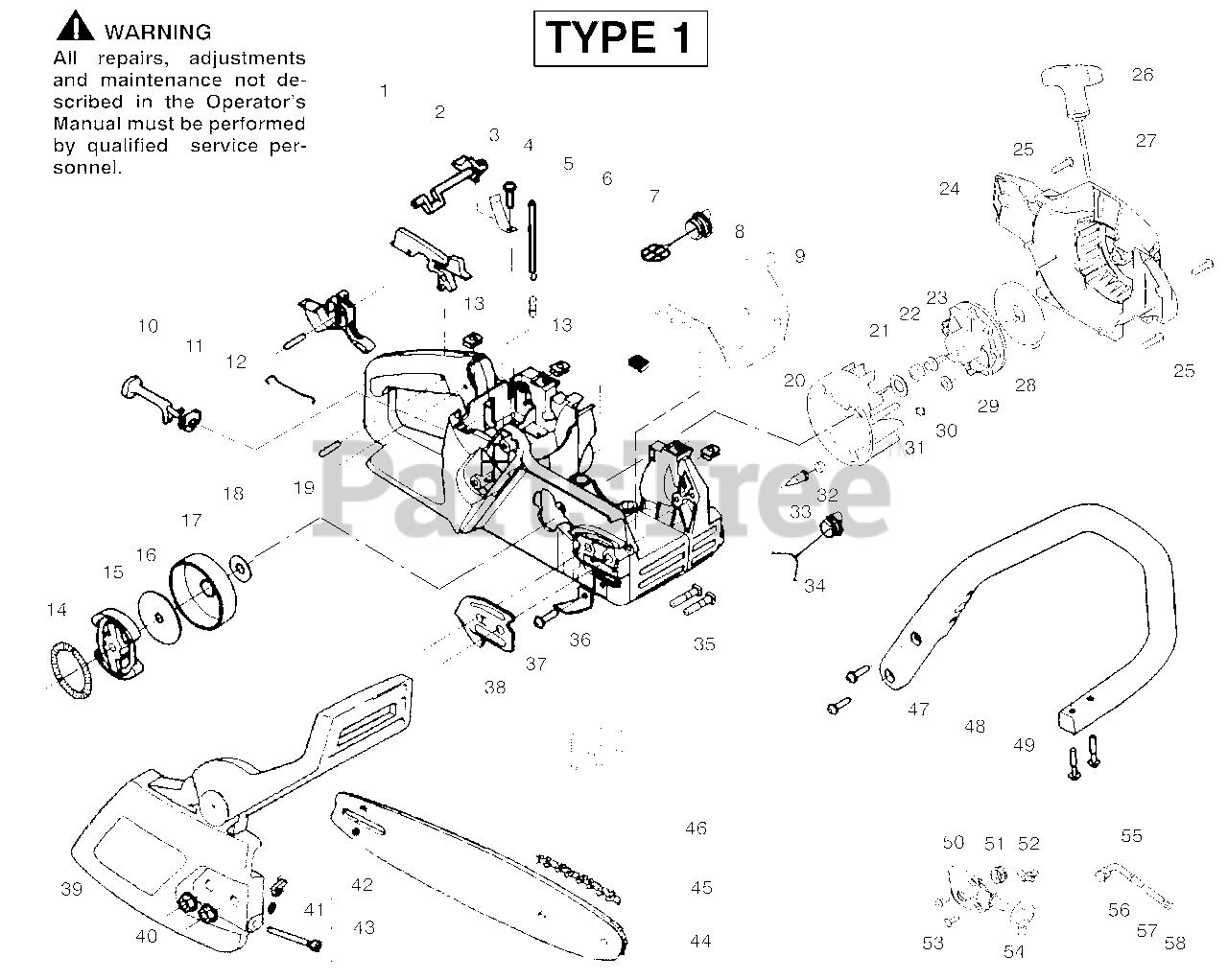

Handle, Chassis & Bar Assembly Type 1 Parts Diagram

  • Title
1

Poulan 530071305

Kit-Trigger & Lockout

Note: (Includes Pin)

$

$

Not available

2

Poulan 530038227

Lever-Switch

$

$

Not available

3

Poulan 530016149

Spring-Switch

$

$

Not available

$6.49

$

In Stock, only 2 left!

0

5

Poulan 530069216

Kit-Fuel Line

Note: (Large)

$11.99

$

In Stock, Qty 20+

0

6

Poulan 530023877

Fitting - Fuel Line

$5.99

$

In Stock, only 4 left!

0

7

Poulan 530047192

Assy-Fuel Cap
(Superseded to 580940901)

$7.99

$

In Stock, only 4 left!

0

8

Poulan 530055322

Clip - "U"

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 530055183

Shield - Heat

$7.49

$

Usually ships in 3-10 days

0

10

Poulan 530047989

Lever-Choke

$

$

Not available

11

Poulan 530038406

Grommet-Choke Lever

$

$

Not available

12

Poulan 530037809

Wire-Throttle

$

$

Not available

13

Poulan 530015922

Nut-Speed

$6.49

$

In Stock, Qty 5

0

14

Poulan 530094188

Spring - Clutch
(Superseded to 530014949)

$22.99

$

In Stock, only 1 left!

0

15

Poulan 530014949

Assy.-Clutch

Note: (Incl. 14)

$22.99

$

In Stock, only 1 left!

0

16

Poulan 530015611

Washer-Clutch

$6.49

$

In Stock, Qty 11

0

17

Poulan 530047061

Assy-Drum W/Brg.

$17.99

$

In Stock, Qty 8

0

18

Poulan 530015907

Washer - Thrust

$

$

Not available

19

Poulan 530069822

Kit - Chassis Assy.

$

$

Not available

20

Poulan 530039209

Assy-Flywheel
(Superseded to 530063575)

$

$

Not available

21

Poulan 530015127

Washer-Flywheel

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 530016134

Nut-Flywheel

$6.49

$

In Stock, only 2 left!

0

23

$6.49

$

In Stock, Qty 7

0

24

Poulan 530049337

Fan Housing

$11.99

$

Usually ships in 3-10 days

0

25

$6.49

$

In Stock, Qty 20+

0

26

Poulan 530037485

Handle-Starter
(Superseded to 530056402)

$6.49

$

In Stock, only 1 left!

0

27

Poulan 530069232

Kit-Rope

$7.49

$

In Stock, Qty 20+

0

28

Poulan 530027531

Spring-Starter
(Superseded to 545008015)

$7.99

$

In Stock, Qty 16

0

29

Poulan 530037817

Starter Pulley
(Superseded to 545034301)

$

$

Not available

30

$6.49

$

In Stock, only 2 left!

0

31

Poulan 530023817

Spring - Starter Dog

$6.49

$

In Stock, Qty 5

0

32

Poulan 530038264

Plug - Bronze Vent

$

$

Not available

33

Poulan 530026119

Check Valve

$5.99

$

In Stock, Qty 10

0

34

Poulan 530010846

Assy-Oil Cap
(Superseded to 530057236)

$

$

Not available

35

Poulan 530016133

Bolt - Bar

$6.49

$

In Stock, only 2 left!

0

36

Poulan 530029850

Chain Catcher

$6.49

$

In Stock, only 4 left!

0

37

$6.49

$

In Stock, Qty 17

0

38

Poulan 530038238

Plate-Bar Mounting

$

$

Not available

39

Poulan 530054740

Assy.-Chain Brake
(Superseded to 545139903)

$93.99

$

In Stock, Qty 12

0

40

Poulan 530015917

Nut-Bar Mounting

$3.99

$

In Stock, Qty 16

0

41

Poulan 530038593

Retainer-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

42

Poulan 530015826

Pin-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

43

Poulan 530069611

Kit-Bar Adjust

Note: (Incl 41,42)

$9.49

$

In Stock, Qty 13

0

44

$

$

Not available

45

Poulan 952051338

Chain-18"
(Superseded to 581562301)

$22.99

$

In Stock, only 1 left!

0

46

$6.49

$

In Stock, Qty 10

0

47

$6.49

$

In Stock, Qty 17

0

48

Poulan 530056798

Front Handle
(Superseded to 530059173)

$

$

Not available

49

$6.49

$

In Stock, Qty 8

0

50

Poulan 530071259

Kit-Oil Pump

Note: (Incl 50,51,52,54)

$

$

Not available

51

Poulan 530037820

Gear-Worm Spring

$6.49

$

In Stock, only 3 left!

0

52

Poulan 530049477

Elbow-Oil Pickup

$4.99

$

In Stock, only 4 left!

0

53

$4.99

$

In Stock, only 2 left!

0

54

Poulan 530019206

Seal Block

$6.49

$

Usually ships in 3-10 days

0

55

Poulan 530047663

Assy-Oil-Pickup

Note: (Incl. 56, 57 & 58)

$6.99

$

In Stock, Qty 6

0

56

Poulan 530038373

Oiler Pickup

$4.99

$

Usually ships in 3-10 days

0

57

Poulan 530037821

Oil Filter
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0

58

Poulan 530030189

Plug-Oil Filter
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0
