23702 - Toro Power Box Rake for Compact Utility Loader (SN: 322000001 - 322999999) (2022) Power Box Rake Assembly Parts Diagram

Power Box Rake for Compact Utility Loader

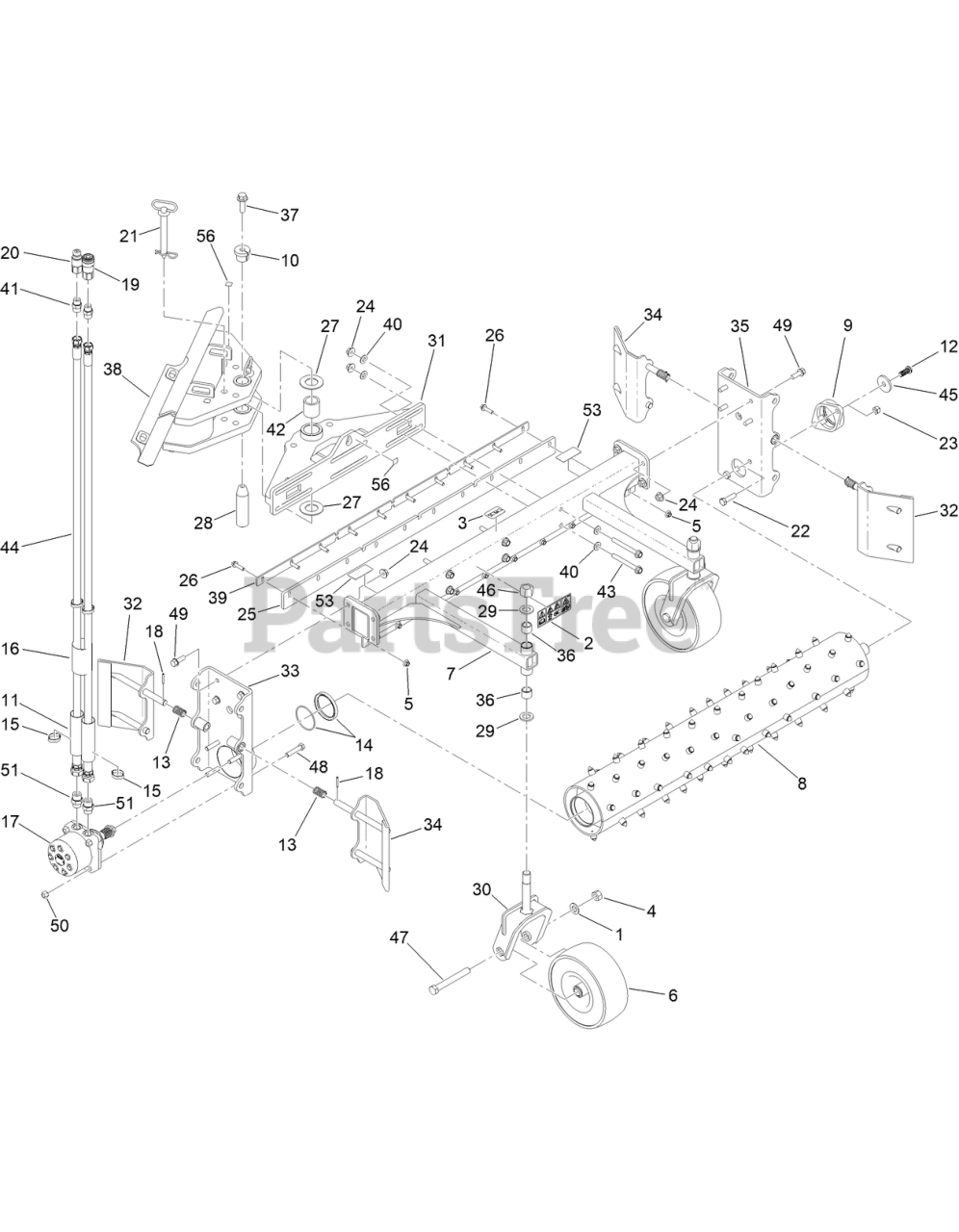

Power Box Rake Assembly Parts Diagram

  • Title

1

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

2

Toro 138-0539

DECAL-DANGER

$2.99

$

Usually ships in 3-6 days

0

3

Toro 110-1265

DISCONTINUED

$

$

Not available

4

Toro 120-7252

NUT-LOCK

$3.99

$

Usually ships in 3-6 days

0

5

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 145-3797

TIRE

$159.99

$

Usually ships in 0 days

0

7

Toro 145-3798

TOP RAKE

$2623.99

$

Usually ships in 0 days

0

8

Toro 145-3799

RAKE DRUM

$3976.99

$

Usually ships in 0 days

0

9

Toro 147-3500

FLANGE BEARING

$108.99

$

Usually ships in 0 days

0

10

Toro 147-3501

TAPERED INSERT

$19.99

$

Usually ships in 0 days

0

11

Toro 147-3502

ABRASION SLEEVE

$31.99

$

Usually ships in 0 days

0

12

Toro 147-3503

SCREW-HSBH

$

$

Currently unavailable

13

Toro 147-3504

SPRING

$

$

Currently unavailable

14

Toro 147-3505

SEAL

$9.49

$

Usually ships in 0 days

0

15

Toro 147-3506

CLAMP

$9.49

$

Usually ships in 0 days

0

16

Toro 147-3507

ABRASION SLEEVE

$42.99

$

Usually ships in 0 days

0

17

Toro 147-3508

MOTOR

$

$

Currently unavailable

18

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 14

0

19

Toro 96-1275

COUPLER-FACE, FLUSH

$205.99

$

Usually ships in 3-6 days

0

20

Toro 96-1276

NIPPLE-FACE, FLUSH

$134.99

$

Usually ships in 3-6 days

0

21

Toro 147-3509

PIN

$14.99

$

Usually ships in 0 days

0

22

Toro 147-3510

BOLT HEX

$6.49

$

Usually ships in 0 days

0

23

Toro 147-3511

NUT, M14 X 2.00-6H, TOPLK, CL 10, CZN

$2.49

$

Usually ships in 0 days

0

24

Toro 32128-52

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

25

Toro 147-3512

MUD FLAP

$176.99

$

Usually ships in 0 days

0

26

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

27

Toro HDW05624

WASHER-FLAT

$

$

Currently unavailable

28

Toro 147-3513

TAPERED PIN

$140.99

$

Usually ships in 0 days

0

29

Toro 86-1480

WASHER

$5.99

$

In Stock, only 1 left!

0

30

Toro 147-3514

CASTER

$380.99

$

Usually ships in 0 days

0

31

Toro 147-3515

RAKE SLIDE

$1015.99

$

Usually ships in 0 days

0

32

Toro 147-3516

RAKE WING

$308.99

$

Usually ships in 0 days

0

33

Toro 147-3517

MOTOR MOUNT

$563.99

$

Usually ships in 0 days

0

34

Toro 147-3518

RAKE WING

$308.99

$

Usually ships in 0 days

0

35

Toro 147-3519

BEARING MOUNT

$985.99

$

Usually ships in 0 days

0

36

Toro 112-6635

BUSHING-SLEEVE

$6.99

$

Usually ships in 3-6 days

0

37

Toro 104-5870

SCREW

$17.99

$

Usually ships in 3-6 days

0

38

Toro 147-3520

RAKE PIVOT

$2698.99

$

Usually ships in 0 days

0

39

Toro 147-3521

FLAP MOUNT

$51.99

$

Usually ships in 0 days

0

40

Toro 87-7270

WASHER-THRUST

$0.99

$

In Stock, Qty 20+

0

41

Toro 147-3522

FITTING-STRAIGHT

$

$

Currently unavailable

42

Toro 147-3523

BEARING

$66.99

$

Usually ships in 0 days

0

43

Toro 117-3176

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

44

Toro 117-0682

HOSE ASM

$

$

Currently unavailable

45

Toro 104-5901

WASHER

$19.99

$

In Stock, only 1 left!

0

46

Toro HDW07704

NUT

$8.99

$

Usually ships in 3-6 days

0

47

Toro 104-1941

BOLT-ADJUSTMENT

$84.99

$

In Stock, only 1 left!

0

48

Toro 325-10

SCREW-HH

$5.49

$

In Stock, Qty 6

0

49

Toro HDW04918

HFCS,1/2-13X1-1/2,WHIZLOCK,GR5 CZ

$

$

Currently unavailable

50

Toro HDW05597

NUT,1/2-13,TOP L/N,GRB,CADWAX,YZN

$1.49

$

In Stock, Qty 10

0

51

Toro 147-3524

FITTING-STRAIGHT

$

$

Currently unavailable

53

Toro 125-6181

DECAL-DANGER, ENTANGLEMENT

$

$

Currently unavailable

56

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0

99

Toro 147-3526

OUTER SHAFT BEARING

Note: Not illustrated

$48.99

$

Usually ships in 0 days

0

99

Toro 147-3527

WHEEL BEARING

Note: Not illustrated

$

$

Currently unavailable

99

Toro 147-3528

WELD-ON CARBIDE TIPS

Note: Not illustrated

$21.99

$

Usually ships in 0 days

0
