237 (39A-237-100) - Cub Cadet Cat CVT Drive Enclosure General Assembly Parts Diagram

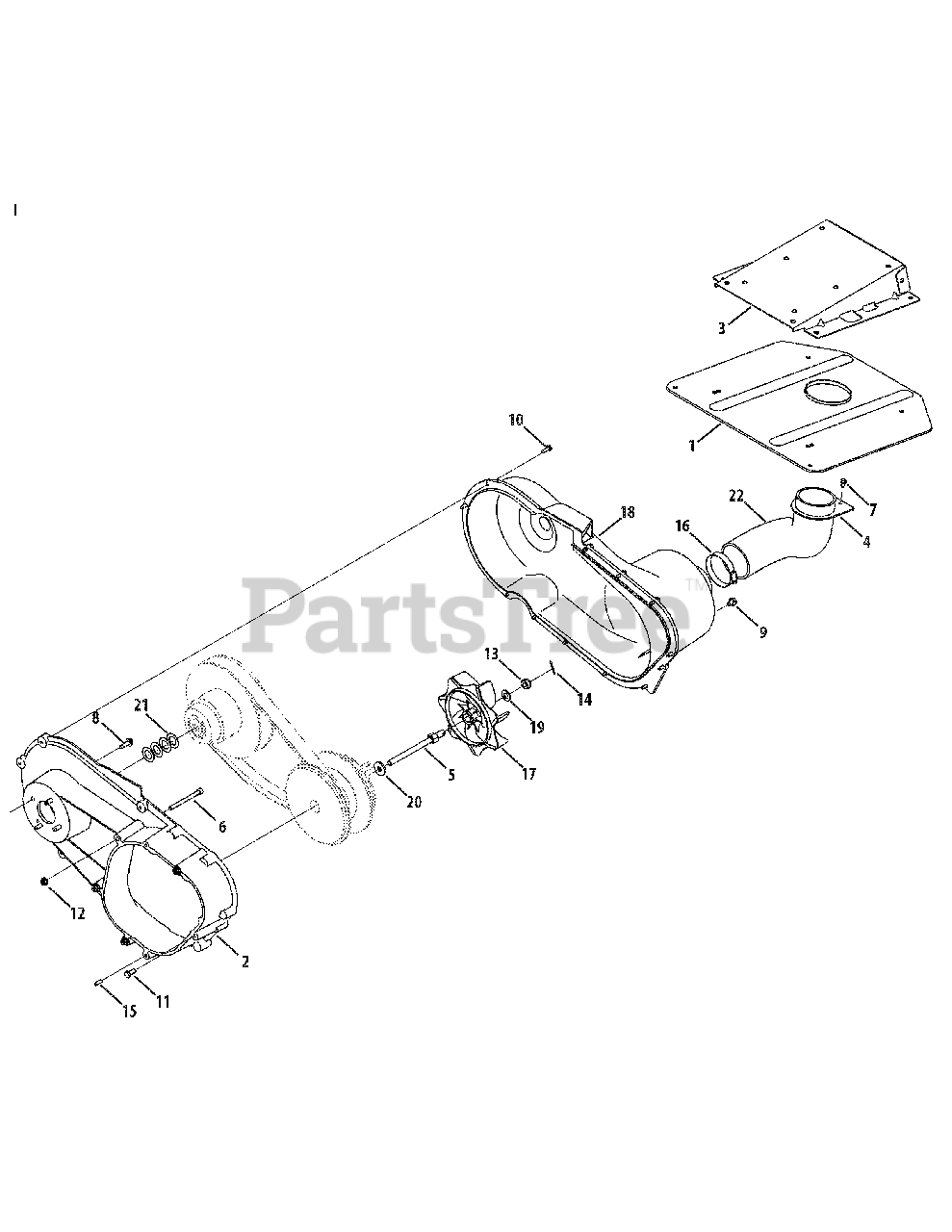

Cat CVT Drive Enclosure

General Assembly Parts Diagram

  • Title
1

Cub Cadet 607-04228A

Plate Assembly, Seat
(Superseded to 607-04228B-0637)

Variations

Cub Cadet 607-04228A-0637

Seat Uv Plate Assembly - POWDER BLACK (0637)

$86.99

$

Usually ships in 3-6 days

0

$86.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 619-04170A

Housing Assembly, CVT, CAT, 4x4
(Superseded to 919-04170B)

$

$

Not available

3

Cub Cadet 707-04654B

Bracket, Mount, Seat
(Superseded to 707-04654B-0637)

Variations

Cub Cadet 707-04654B-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$78.99

$

Usually ships in 3-6 days

0

$78.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 707-04991

Bracket, Tube, CVT
(Superseded to 707-04991-0637)

Variations

Cub Cadet 707-04991-0637

Tube Bracket, CVT - POWDER BLACK (0637)

$18.99

$

In Stock, only 1 left!

0

$18.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-04657

Hhcs, 7/16-20 x 5.00

$30.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-04685

Screw, 5/16-18 x 3.50

$

$

Not available

7

Cub Cadet 710-0599

Screw, TT, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0602

Screw, TT, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0603

Screw, 5/16-12 x .500

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0642

Screw, TT, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3008

Hhcs, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04063

Nut, Flglk., 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3012

Nut, Hex, 1/2-20
(Superseded to 912-3012)

$13.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 714-0111

Pin, Cotter, 3/32 x 1.00

$4.99

$

In Stock, Qty 13

0

15

Cub Cadet 715-0156

Pin, Roll, .25 x .75

$4.49

$

In Stock, only 1 left!

0

16

Cub Cadet 726-04080

Clamp, Hose, Adj.

$11.99

$

In Stock, Qty 11

0

17

Cub Cadet 731-04275

Impeller, Blower

$35.99

$

In Stock, only 4 left!

0

18

Cub Cadet 731-05756

Cover, CVT, 4x4
(Superseded to 759-04250)

$219.99

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0272

Washer, Flat, .510 x 1.00 x .060

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0322

Washer, Flat, .450 x 1.250 x .164

$9.49

$

In Stock, Qty 7

0

21

Cub Cadet 736-0566

Washer, Flat, .793 x 1.368 x .025

$6.99

$

In Stock, Qty 13

0

22

Cub Cadet 751-10510

Tube, Intake, CVT

$106.99

$

Usually ships in 3-6 days

0
