236 R - Husqvarna Brush Cutter (Original) GEARS Parts Diagram

Brush Cutter

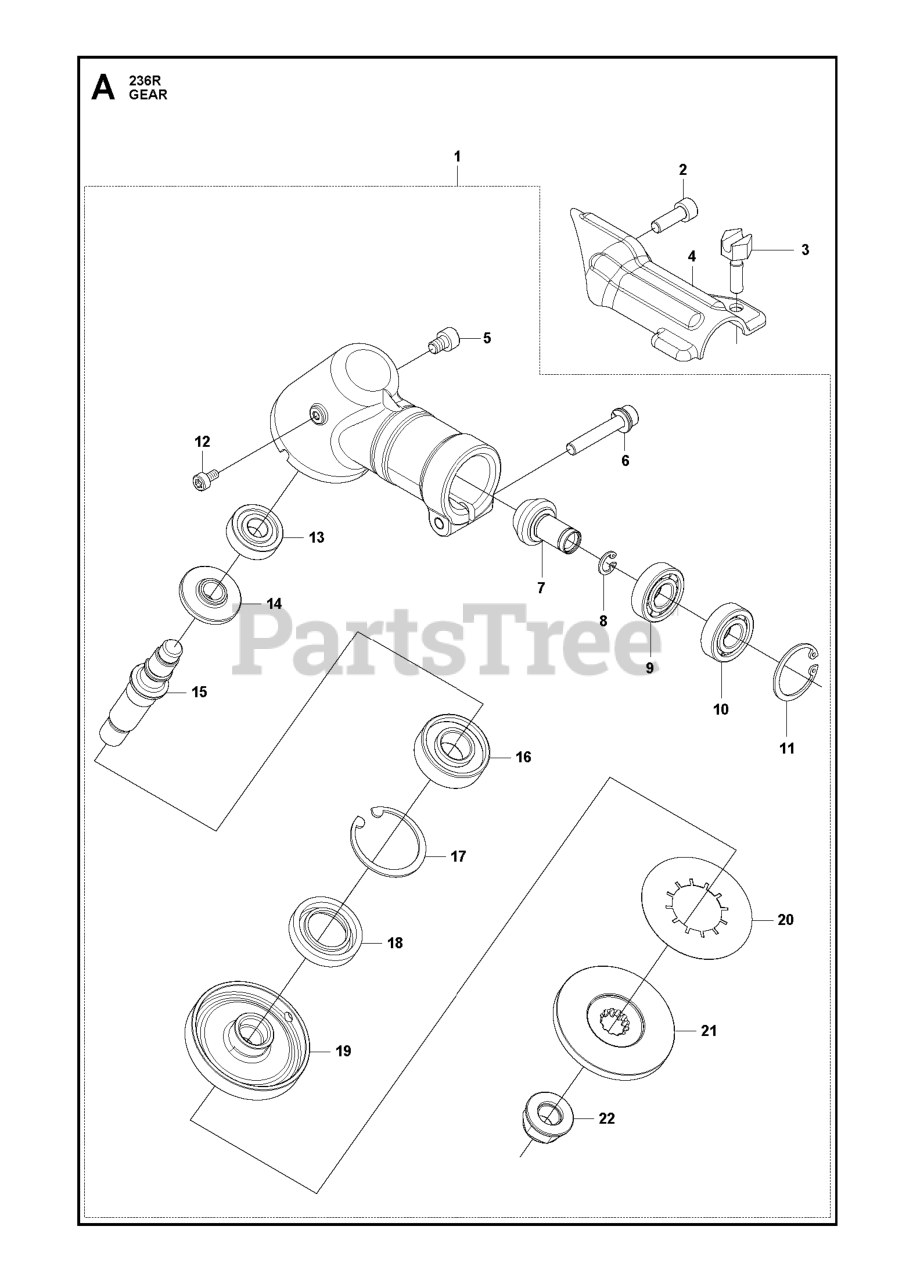

GEARS Parts Diagram

  • Title

4

Husqvarna 528818501

NEEDS DESCRIPTION

$

$

Currently unavailable

15

Husqvarna 579076601

NEEDS DESCRIPTION

Note: 20113100001-Current

$

$

Currently unavailable

1

Husqvarna 579076202

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 516124101

RING

$4.99

$

In Stock, only 3 left!

0

17

Husqvarna 502849301

SNAP RING

$3.49

$

In Stock, only 3 left!

0

16

Husqvarna 516131701

BEARING 0600406202

$9.49

$

In Stock, only 1 left!

0

6

Husqvarna 521862401

BOLT,TORX

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 574710801

BOLT

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 528826201

GEAR

Note: 20090100001-20113100000

$24.99

$

Usually ships in 3-10 days

0

21

Husqvarna 579077101

NEEDS DESCRIPTION

$

$

Currently unavailable

12

Husqvarna 544362701

BOLT

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 521522201

SEAL

$

$

Not available

10

Husqvarna 516130001

BEARING,12MM ID,28MM OD, 8MM W

$15.99

$

Usually ships in 3-10 days

0

13

Husqvarna 505170201

BEARING

$9.99

$

In Stock, only 3 left!

0

11

Husqvarna 506609901

RING

$4.99

$

In Stock, only 3 left!

0

9

Husqvarna 516127901

BEARING

$6.99

$

In Stock, only 1 left!

0

14

Husqvarna 579076701

NEEDS DESCRIPTION

Note: 20113100001-Current

$

$

Currently unavailable

20

Husqvarna 579077001

NEEDS DESCRIPTION

$

$

Currently unavailable

19

Husqvarna 579076901

NEEDS DESCRIPTION

$

$

Currently unavailable

7

Husqvarna 579076801

NEEDS DESCRIPTION

Note: 20113100001-Current

$

$

Currently unavailable

15

Husqvarna 528815901

SHAFT,GEAR

Note: 20090100001-20113100000

$27.99

$

Usually ships in 3-10 days

0

22

Husqvarna 579076401

NEEDS DESCRIPTION

$

$

Currently unavailable

5

Husqvarna 521862001

BOLT,TORX M6X8

$3.49

$

In Stock, only 1 left!

0

7

Husqvarna 528818001

PINION

Note: 20090100001-20113100000

$

$

Not available

3

Husqvarna 537189501

SCREW

$7.49

$

Usually ships in 3-10 days

0
