236 - Husqvarna Chainsaw CHASSIS Parts Diagram

Chainsaw

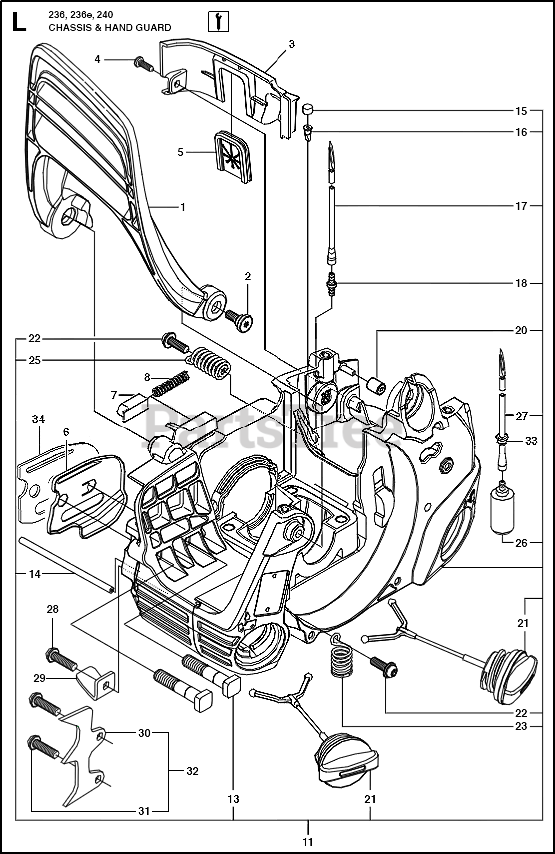

CHASSIS Parts Diagram

  • Title

23

Husqvarna 545033801

ISOLATOR

$10.99

$

In Stock, Qty 6

0

21

Husqvarna 544111203

ASSY TANK CAP GREY

$6.99

$

In Stock, Qty 16

0

11

Husqvarna 587026801

CHASSIS ASSEMBLY, P021, MACH.
(Superseded to 587026804)

Note: From 20144000001

$91.99

$

Usually ships in 3-10 days

0

18

Husqvarna 530023877

FUEL LINE FITTING

$5.99

$

In Stock, Qty 18

0

7

Husqvarna 545071301

CAP, SPRING HANDGUARD

$6.49

$

In Stock, Qty 5

0

34

Husqvarna 592969801

Spacers

Note: From 20101400001 up to 20144000000

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 579665203

Chassis
(Superseded to 579665204)

Note: From 20101400001 up to 20144000000

$91.99

$

Usually ships in 3-10 days

0

17

Husqvarna 580727101

KIT FUEL LINE

$17.99

$

Usually ships in 3-10 days

0

2

Husqvarna 545127301

BOSS SCREW

$4.99

$

In Stock, only 1 left!

0

31

Husqvarna 530016439

SCREW

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 503735801

FUEL TANK BUSHING
(Superseded to 580457501)

Note: From 20101400001 up to 20144000000

$7.99

$

In Stock, Qty 20+

0

20

Husqvarna 545061901

ISOLATOR FILTER HOUSING

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 580457501

GROMMET FUEL LINE

Note: From 20144000001

$7.99

$

In Stock, Qty 20+

0

6

Husqvarna 545071401

PLATE BAR

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 545061201

REAR WALL

$12.99

$

Usually ships in 3-10 days

0

25

Husqvarna 545063101

SPRING

Note: From 20144000001

$10.99

$

In Stock, Qty 10

0

26

Husqvarna 577167201

ASSY FUEL PICKUP PRE FLUSHED

$7.99

$

Usually ships in 3-10 days

0

25

Husqvarna 577540601

SPRING REAR HANDLE ISOLATOR 96

Note: From 20101400001 up to 20144000000

$7.49

$

Usually ships in 3-10 days

0

1

Husqvarna 577611901

HANDGUARD HHS
(Superseded to 577611902)

$17.99

$

Usually ships in 3-10 days

0

14

Husqvarna 580727101

KIT FUEL LINE

Note: From 20144000001

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 545071201

SPRING

$4.99

$

In Stock, Qty 5

0

30

Husqvarna 530038990

SPIKE
(Superseded to 530014381)

$9.99

$

In Stock, Qty 7

0

15

Husqvarna 530029868

VENT,FUEL TANK 36/41

$6.49

$

In Stock, Qty 7

0

22

Husqvarna 530015906

SCREW,FRONT HBAR 36/41

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 530014381

SPIKE 36/41

$9.99

$

In Stock, Qty 7

0

14

Husqvarna 545033501

OIL TUBE

Note: From 20101400001 up to 20144000000

$6.99

$

In Stock, only 1 left!

0

16

Husqvarna 530026119

VALVE-CHECK (DUCKBILL)

$5.99

$

In Stock, Qty 8

0

5

Husqvarna 545075401

GROMMET

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 529310301

BOLT
(Superseded to 529310302)

$2.49

$

Usually ships in 3-10 days

0

27

Husqvarna 580727101

KIT FUEL LINE

$17.99

$

Usually ships in 3-10 days

0

4

Husqvarna 545227101

SCREW 6-19X.437

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

29

Husqvarna 530029850

CHAIN CATCHER 36/41

$6.49

$

In Stock, only 3 left!

0
