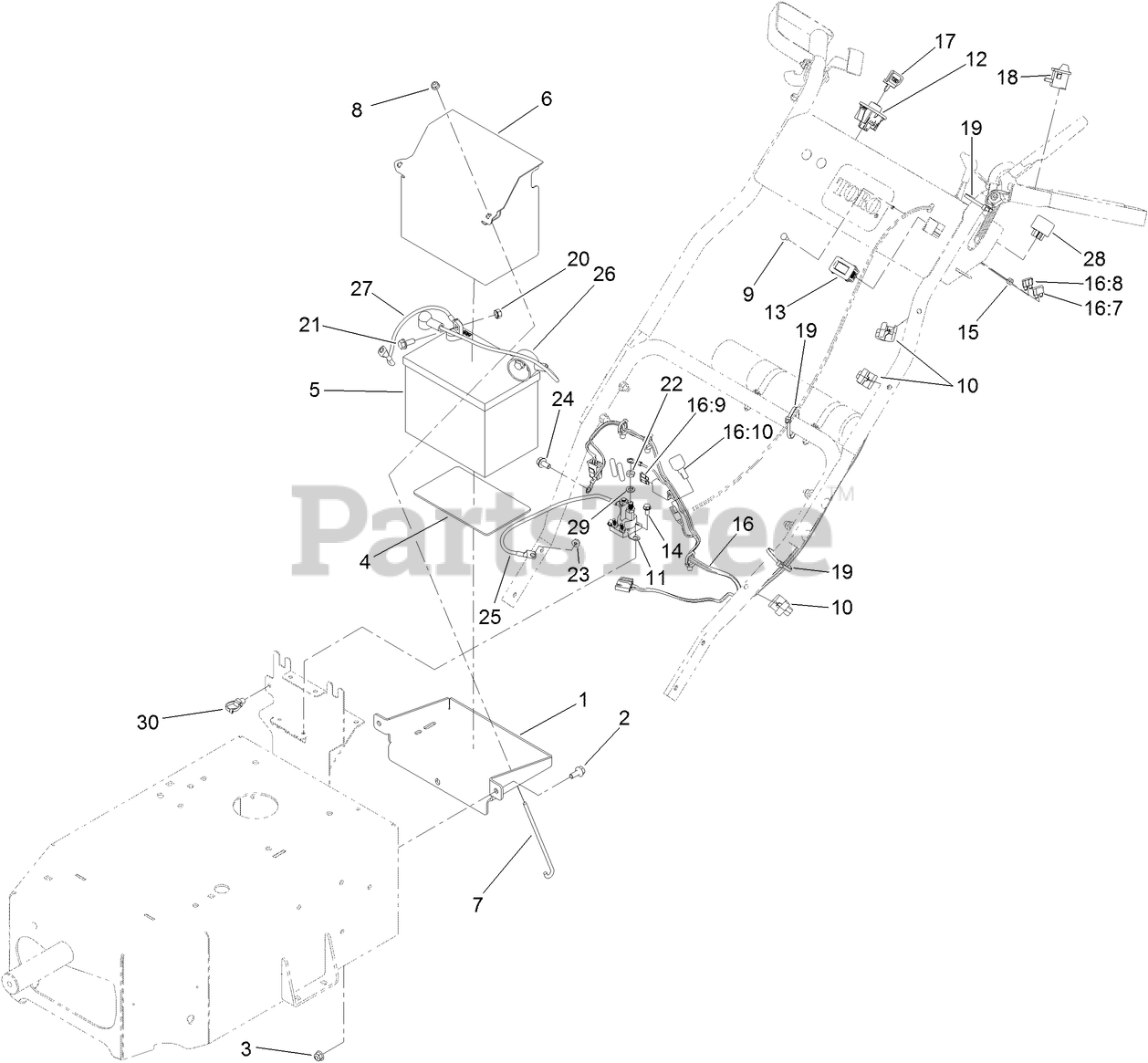

23522 - Toro Brush Cutter (SN: 413000000 - 999999999) Electrical Assembly Parts Diagram

Brush Cutter

Electrical Assembly Parts Diagram

  • Title

1

Toro 136-1401-01

TRAY-BATTERY

$34.99

$

Usually ships in 3-6 days

0

2

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Toro 62-4300

PAD-SKID, ANTI

$19.99

$

Usually ships in 3-6 days

0

5

Toro 105-1692

BATTERY

$

$

Not available

6

Toro 136-1408-01

TRAY-BATTERY

$41.99

$

Usually ships in 3-6 days

0

7

Toro 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 11

0

8

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

10

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

11

Toro 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

12

Toro 137-4100

SWITCH-IGNITION

$35.99

$

In Stock, Qty 20+

0

13

Toro 120-2244

HOURMETER

$69.99

$

In Stock, only 1 left!

0

14

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 122-0925

HARNESS-WIRE

$228.99

$

Usually ships in 3-6 days

0

16:7

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

16:8

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

16:9

Toro 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 6

0

16:10

Toro 100-4918

DIODE

$21.99

$

In Stock, only 1 left!

0

17

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 13

0

18

Toro 133-4654

SWITCH-PLUNGER

$13.99

$

Usually ships in 3-6 days

0

19

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

20

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

21

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

22

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

23

Toro 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

24

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

25

Toro 122-1000

CABLE-BATTERY, POSITIVE

$6.99

$

Usually ships in 3-6 days

0

26

Toro 122-0999

CABLE-BATTERY, POSITIVE

$25.99

$

Usually ships in 3-6 days

0

27

Toro 122-0959

CABLE-BATTERY, NEGATIVE

$10.99

$

Usually ships in 3-6 days

0

28

Toro 98-7249

RELAY

$22.99

$

In Stock, only 3 left!

0

29

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

30

Toro 32180-030

CLIP-TIE

$4.99

$

In Stock, Qty 7

0
