23522 - Toro Brush Cutter (SN: 413000000 - 999999999) Drive Assembly Parts Diagram

Brush Cutter

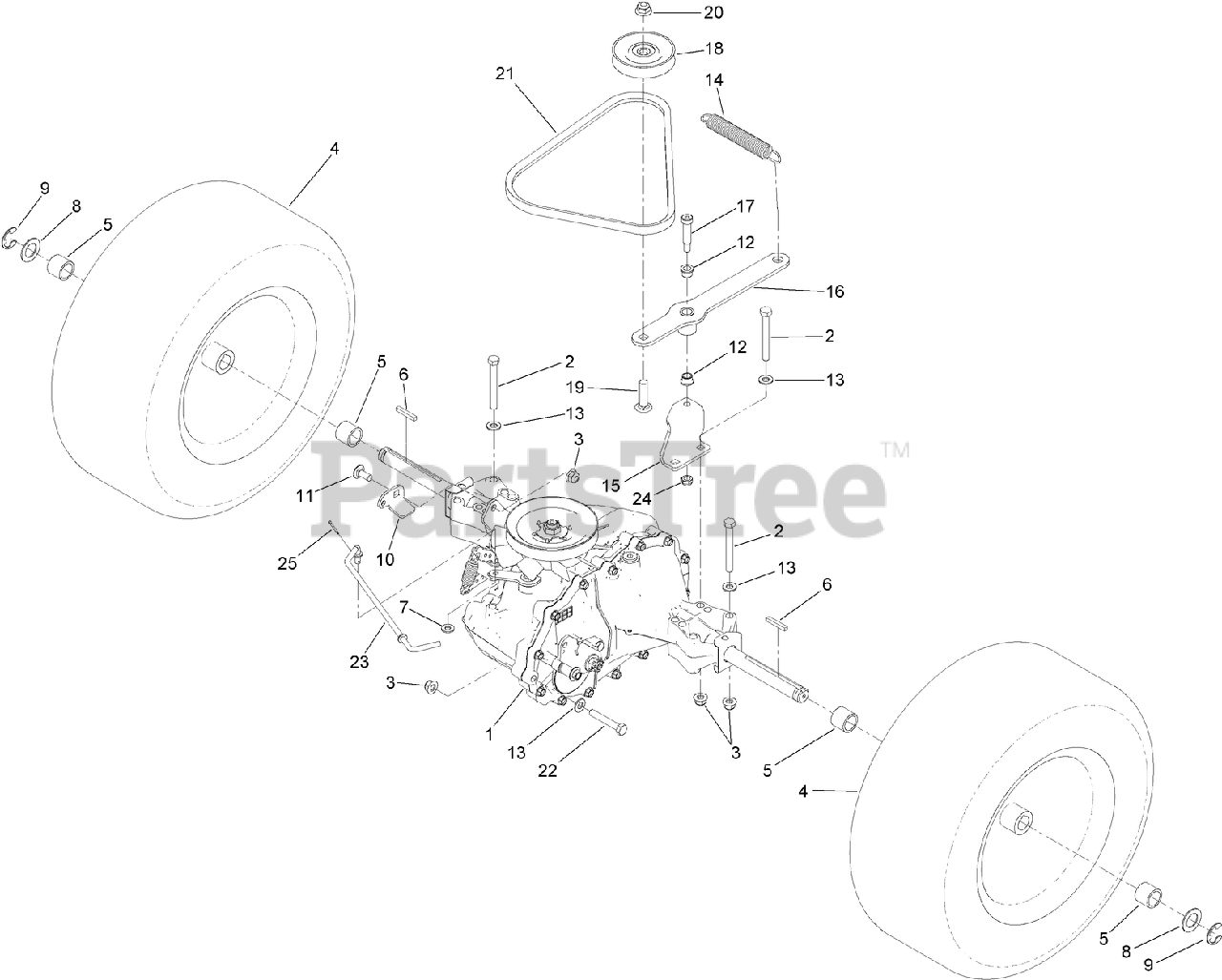

Drive Assembly Parts Diagram

  • Title

1

Toro 121-1908

TRANSAXLE ASM

Note: Apply anti-seize compound to axle ends before installing tires.

$981.99

$

Usually ships in 3-6 days

0

2

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Toro 132-7001

TIRE ASM

$200.99

$

Usually ships in 3-6 days

0

5

Toro 132-4062

SPACER

$5.49

$

Usually ships in 3-6 days

0

6

Toro 92-0049

KEY-SQUARE

$3.49

$

In Stock, Qty 17

0

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 67-9410

WASHER

$3.99

$

Usually ships in 3-6 days

0

9

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

10

Toro 132-7048-03

BRACKET-CABLE

$10.99

$

Usually ships in 3-6 days

0

11

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

12

Toro 132-4097

BUSHING

$5.49

$

Usually ships in 3-6 days

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 21-1830

SPRING-EXTENSION

$36.99

$

In Stock, only 1 left!

0

15

Toro 132-4079-03

MOUNT-ARM, TENSION

$16.99

$

Usually ships in 3-6 days

0

16

Toro 132-4061-03

ARM-TENSION, BELT

$68.99

$

Usually ships in 3-6 days

0

17

Toro 114-0239

SCREW-HSH

$12.99

$

In Stock, only 2 left!

0

18

Toro 62-4530

PULLEY

$39.99

$

In Stock, only 2 left!

0

19

Toro 3231-26

SCREW-CARR

$5.49

$

In Stock, only 3 left!

0

20

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 707081

V-BELT

$62.99

$

In Stock, only 1 left!

0

22

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

23

Toro 133-9715

LEVER-VALVE, TOW

$57.99

$

Usually ships in 3-6 days

0

24

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

25

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0
