23521 - Toro Walk-Behind Brush Cutter (SN: 400000000 - 999999999) Engine and Frame Assembly Parts Diagram

Walk-Behind Brush Cutter

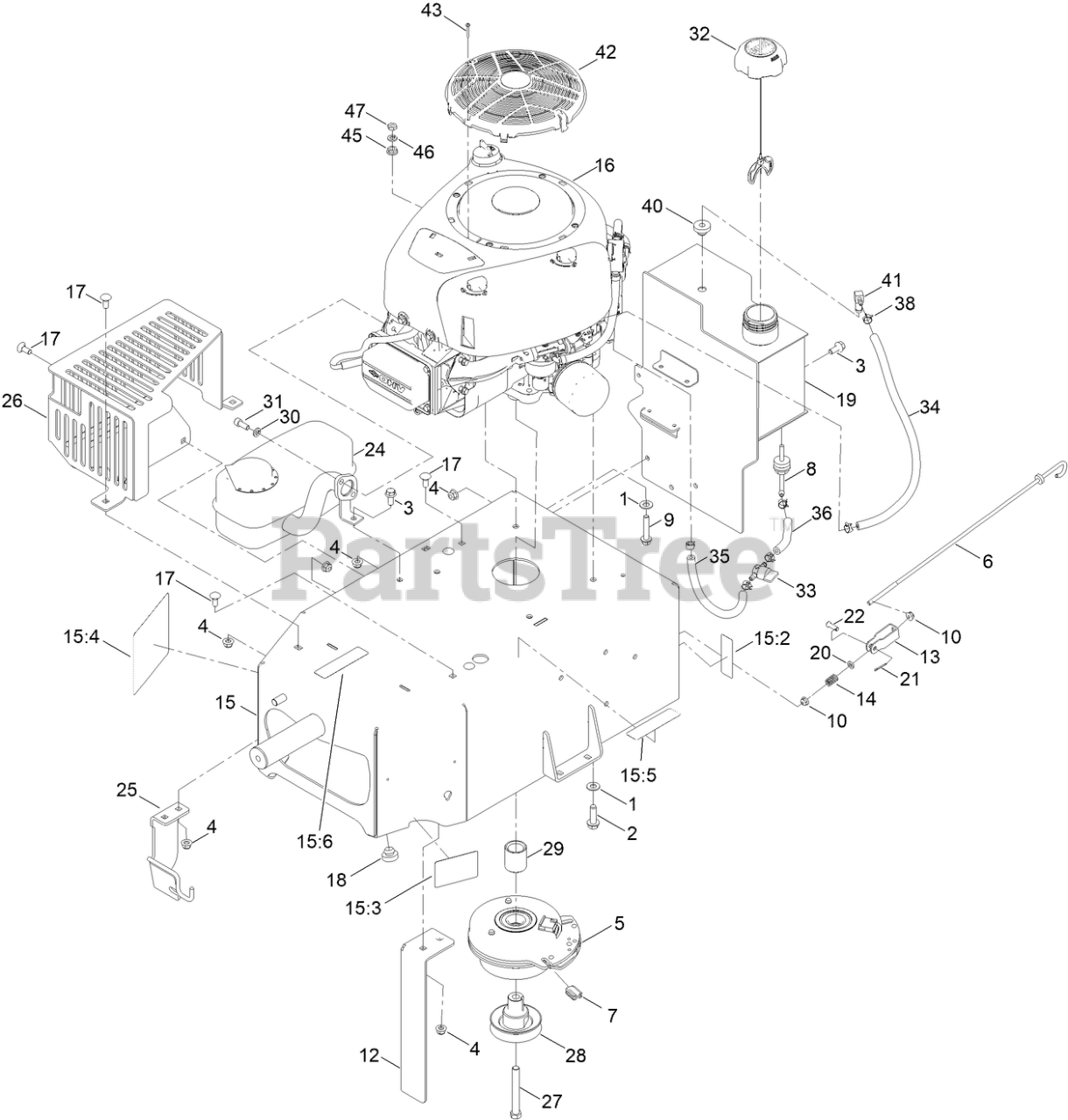

Engine and Frame Assembly Parts Diagram

  • Title

1

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 32144-109

SCREW-THD

$4.99

$

In Stock, only 2 left!

0

3

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Toro 136-1425

CLUTCH-ELECTRIC

$382.99

$

Usually ships in 3-6 days

0

6

Toro 161-2364

ROD-BRAKE

$

$

Currently unavailable

7

Toro 120-2217

ISOLATOR-CLUTCH

$2.99

$

In Stock, Qty 16

0

8

Toro 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 4 left!

0

9

Toro 94-5780

SCREW-HWH

$8.49

$

In Stock, Qty 8

0

10

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Toro 132-4060-01

BRACKET-TORQUE

$

$

Currently unavailable

13

Toro 39-3080

CLEVIS

$14.99

$

Usually ships in 3-6 days

0

14

Toro 63-4220

SPRING-COMPRESSION

$19.99

$

Usually ships in 3-6 days

0

15

Toro 161-2369

FRAME ASM

$

$

Currently unavailable

15:2

Toro 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0

15:3

Toro 136-4646

DECAL-BYPASS

$

$

Not available

15:4

Toro 161-6879

DECAL-SERVICE

$10.99

$

Usually ships in 0 days

0

15:5

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

15:6

Toro 127-0392

DECAL-HOT SURFACE

$

$

Currently unavailable

16

ENGINE-BRIGGS STRATTON PROFESSIONAL

Note: Not serviced separately

$

$

Not available

16

ENGINE-BRIGGS STRATTON PROFESSIONAL

Note: This is a Briggs & Stratton part. Please use the Briggs & Stratton catalog.

$

$

Not available

17

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

18

Toro 104-1412

BUMPER-RUBBER

$18.99

$

In Stock, only 3 left!

0

19

Toro 147-3271

TANK-FUEL

$167.99

$

Usually ships in 0 days

0

20

Toro 55-9620

SPACER-PLATE, PIVOT

$1.49

$

Usually ships in 3-6 days

0

21

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

22

Toro 1-808265

PIN-CLEVIS

$3.49

$

In Stock, only 2 left!

0

24

Toro 147-7033

MUFFLER, BRUSH CUTTER

$

$

Currently unavailable

25

Toro 133-9711-01

GUIDE-BELT/CABLE

$50.99

$

Usually ships in 3-6 days

0

26

Toro 161-6861-03

GUARD-MUFFLER [BLACK]

$192.99

$

Usually ships in 0 days

0

27

Toro 3212-14

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

28

Toro 136-1424

PULLEY-HYDRO

$72.99

$

Usually ships in 3-6 days

0

29

Toro 161-2361

SPACER, CLUTCH

$

$

Currently unavailable

30

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

31

Toro 3274-10

SCREW-HSH

$10.99

$

In Stock, Qty 20+

0

32

Toro 137-4127

CAP-FUEL

$23.99

$

In Stock, Qty 19

0

33

Toro 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

34

Toro 109-0296

HOSE-FUEL

$10.99

$

In Stock, only 4 left!

0

35

Toro 109-0306

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

36

Toro 144-5368

HOSE-FUEL

$

$

Currently unavailable

38

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

40

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

41

Toro 104-5228

FITTING-ELBOW, 90 DEG

$18.99

$

Usually ships in 3-6 days

0

42

Toro 145-4669

COVER-FAN

$31.99

$

Usually ships in 3-6 days

0

43

Toro 145-4670

SCREW-FAN

$

$

Currently unavailable

45

Toro 137-3039

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

46

Toro 136-8682

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

47

Toro 120-9638

NUT-JAM

$

$

Currently unavailable
