23518 - Toro 30" Stand-On Aerator (SN: 316000001 - 316999999) (2016) GROUND DRIVE ASSEMBLY Parts Diagram

30" Stand-On Aerator

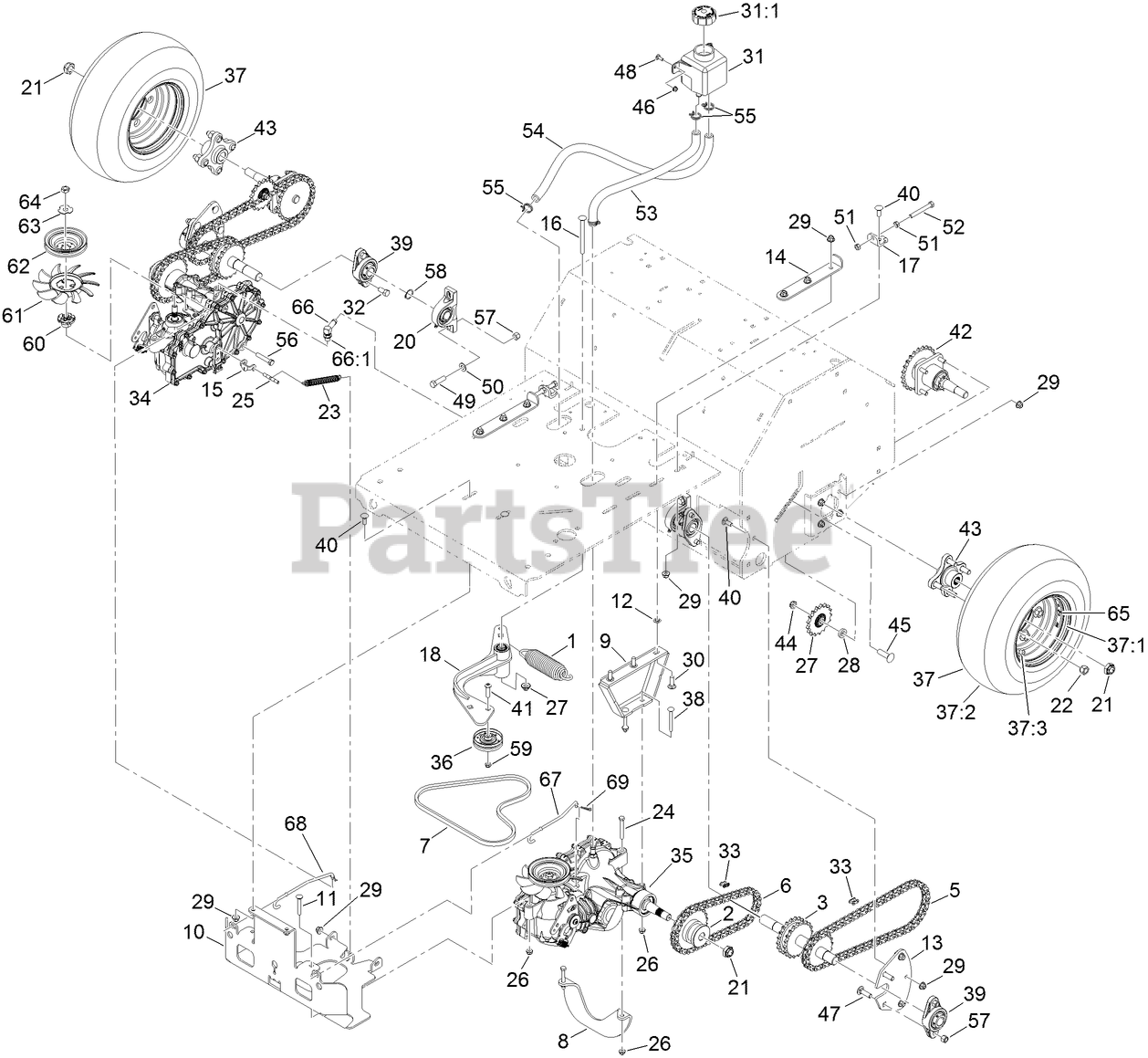

GROUND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 7

0

2

Toro 116-9305

HUB-DRIVE, CHAIN

$156.99

$

Usually ships in 3-6 days

0

3

Toro 116-9684

JACKSHAFT
(Superseded to 126-5625)

$208.99

$

In Stock, only 1 left!

0

5

Toro 116-6895

CHAIN-ROLLER, #50, 65 LINKS
(Superseded to 126-8808)

$206.99

$

In Stock, only 2 left!

0

6

Toro 116-6896

CHAIN-ROLLER #50, 47 PITCHES
(Superseded to 126-8807)

$165.99

$

In Stock, only 2 left!

0

7

Toro 116-8874

BELT-4L SECTION

$31.99

$

Usually ships in 3-6 days

0

8

Toro 116-9127-03

BRACE-ANGLE
(Superseded to 135-5051-03)

$31.99

$

Usually ships in 3-6 days

0

9

Toro 116-9710-03

MOUNT-TRANSMISSION

$43.99

$

Usually ships in 3-6 days

0

10

Toro 126-5495-03

GUARD-TRANSMISSION

$206.99

$

Usually ships in 3-6 days

0

11

Toro 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

12

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

13

Toro 116-6596-01

PLATE-JACKSHAFT

$35.99

$

Usually ships in 3-6 days

0

14

Toro 116-6619

PLATE-ADJUSTMENT, TRANSMISSION

$23.99

$

In Stock, only 4 left!

0

15

Toro 116-7597

YOKE-BRAKE, PARK

$60.99

$

Usually ships in 3-6 days

0

16

Toro 9000779

BOLT-CARR

$2.99

$

Usually ships in 3-6 days

0

17

Toro 116-6723

BRACKET-HYDRO, ADJUST

$21.99

$

In Stock, only 3 left!

0

18

Toro 116-9307

IDLER ARM ASM

$151.99

$

Usually ships in 3-6 days

0

20

Toro 116-6756

BEARING-PILLOW BLOCK

$53.99

$

In Stock, only 3 left!

0

21

Toro 116-2839

NUT-LOCK

$11.99

$

In Stock, only 3 left!

0

22

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

23

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

24

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

25

Toro 116-7596

PIN-BRAKE, PARK

$20.99

$

Usually ships in 3-6 days

0

26

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

27

Toro 116-6719

SPROCKET-IDLER, 17T
(Superseded to 126-9108)

$103.99

$

In Stock, only 2 left!

0

28

Toro 104-8417

WASHER

$9.49

$

In Stock, only 2 left!

0

29

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

30

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

31

Toro 109-2250

TANK-HYD

$66.99

$

In Stock, Qty 8

0

31:1

Toro 109-3320

CAP-RESERVOIR, HYD

$28.99

$

In Stock, only 1 left!

0

32

Toro 116-7109

SCREW-HH

$2.99

$

In Stock, only 2 left!

0

33

Toro 116-6897

LINK-CONNECTING

$7.99

$

In Stock, only 4 left!

0

34

Toro 116-9712

RH TRANSAXLE ASM (NO FAN)

$1580.99

$

In Stock, only 1 left!

0

35

Toro 116-9713

LH TRANSAXLE ASM (NO FAN)

$1536.99

$

Usually ships in 3-6 days

0

36

Toro 116-9715

PULLEY-IDLER

$60.99

$

In Stock, only 1 left!

0

37

Toro 126-4267

WHEEL AND TIRE ASM

$155.99

$

Usually ships in 3-6 days

0

37:1

Toro 126-4266

RIM-GRAY

$69.99

$

Usually ships in 3-6 days

0

37:2

Toro 116-6978

TIRE

$120.99

$

Usually ships in 3-6 days

0

37:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

38

Toro 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 5

0

39

Toro 116-6777

BEARING-FLANGE, 2 BOLT

$45.99

$

In Stock, only 3 left!

0

40

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

41

Toro 116-9927

SCREW-HSBH

$2.99

$

Usually ships in 3-6 days

0

42

Toro 116-9545

AXLE AND BEARING ASM

$722.99

$

Usually ships in 3-6 days

0

43

Toro 116-3872

HUB-OFFSET

$69.99

$

In Stock, only 1 left!

0

44

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

45

Toro 3233-14

SCREW-CARR

$16.99

$

In Stock, Qty 8

0

46

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

47

Toro 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

48

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

49

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

50

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

51

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

52

Toro 99-8664

SCREW-HH

$2.99

$

In Stock, Qty 5

0

53

Toro 116-6775

HOSE-HYDRAULIC

$19.99

$

Usually ships in 3-6 days

0

54

Toro 116-6776

HOSE-HYDRAULIC

$26.99

$

Usually ships in 3-6 days

0

55

Toro 109-3322

CLAMP-HOSE

$1.49

$

In Stock, Qty 9

0

56

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

57

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

58

Toro 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 16

0

59

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

60

Toro 116-9705

HUB-PULLEY

$8.49

$

In Stock, only 1 left!

0

61

Toro 116-9706

FAN

$27.99

$

In Stock, only 1 left!

0

62

Toro 116-9707

PULLEY

$28.99

$

In Stock, only 1 left!

0

63

Toro 116-9708

WASHER-SLOTTED

$5.49

$

In Stock, only 1 left!

0

64

Toro 116-9714

NUT-HJ

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, only 4 left!

0

65

Toro 126-2054

DECAL-HUB, WHEEL

$5.49

$

Usually ships in 3-6 days

0

66

Toro 109-6449

FITTING-ELBOW, 90

$33.99

$

Usually ships in 3-6 days

0

66:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

67

Toro 126-5442

LINKAGE-BYPASS, LH

$62.99

$

Usually ships in 3-6 days

0

68

Toro 126-5443

LINKAGE-BYPASS, RH

$62.99

$

Usually ships in 3-6 days

0

69

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0
