23518 - Toro 30" Stand-On Aerator (SN: 314000001 - 314999999) (2014) TINE ASSEMBLY Parts Diagram

30" Stand-On Aerator

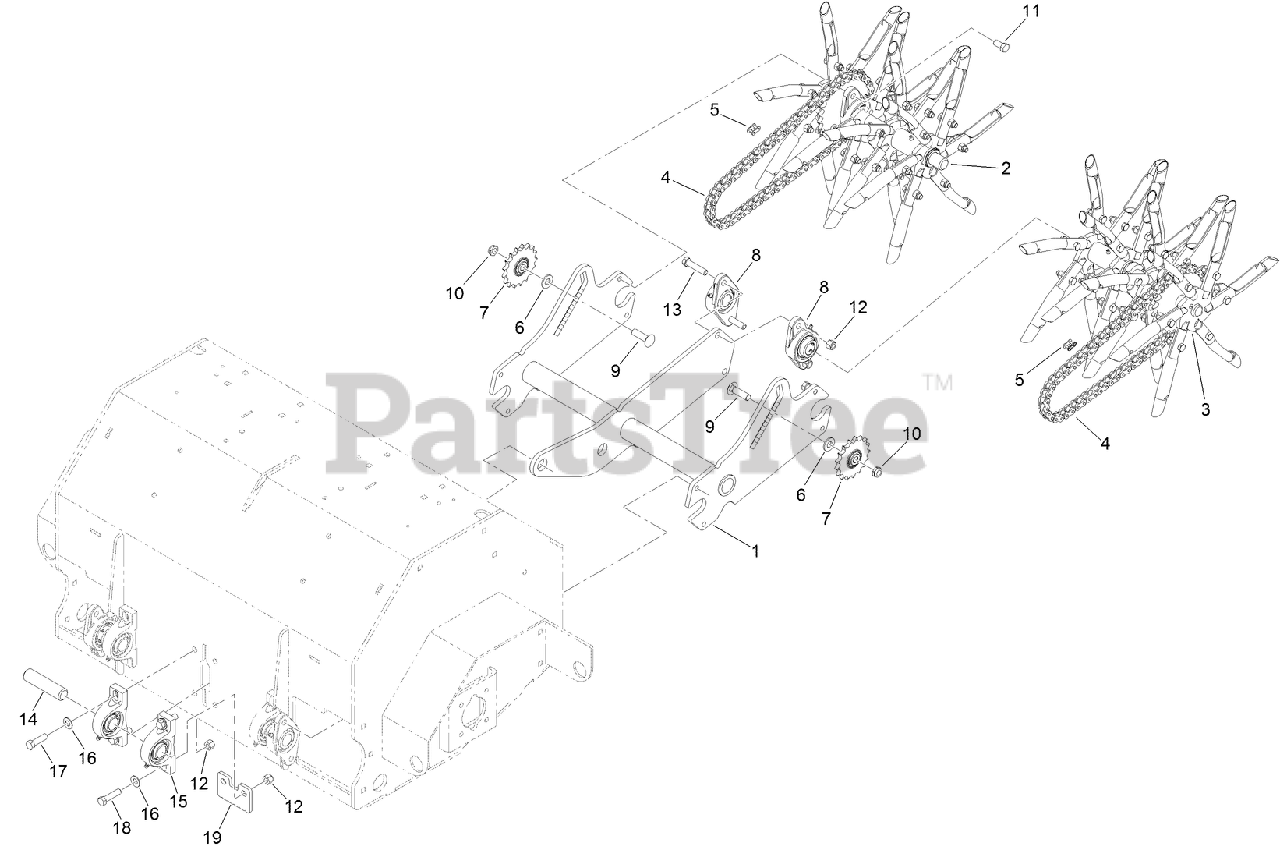

TINE ASSEMBLY Parts Diagram

  • Title

1

Toro 116-6553-03

ARM-TRAIL
(Superseded to 135-5952-03)

$489.99

$

Usually ships in 3-6 days

0

2

Toro 116-6738

RH TINE WHEEL ASM
(Superseded to 135-2507)

$1008.99

$

Usually ships in 3-6 days

0

3

Toro 116-6739

LH TINE WHEEL ASM
(Superseded to 135-2510)

$1008.99

$

Usually ships in 3-6 days

0

4

Toro 116-6895

CHAIN-ROLLER, #50, 65 LINKS
(Superseded to 126-8808)

$206.99

$

In Stock, only 2 left!

0

5

Toro 116-6897

LINK-CONNECTING

$7.99

$

In Stock, only 4 left!

0

6

Toro 87-7270

WASHER-THRUST

$0.99

$

In Stock, Qty 20+

0

7

Toro 116-6719

SPROCKET-IDLER, 17T
(Superseded to 126-9108)

$103.99

$

In Stock, only 2 left!

0

8

Toro 116-6777

BEARING-FLANGE, 2 BOLT

$45.99

$

In Stock, only 3 left!

0

9

Toro 3233-14

SCREW-CARR

$16.99

$

In Stock, Qty 8

0

10

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

11

Toro 116-7109

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$2.99

$

In Stock, only 2 left!

0

12

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

13

Toro 324-8

SCREW-HH

$5.99

$

In Stock, Qty 18

0

14

Toro 116-6629

SHAFT

$20.99

$

Usually ships in 3-6 days

0

15

Toro 116-6756

BEARING-PILLOW BLOCK

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$53.99

$

In Stock, only 3 left!

0

16

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

17

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

18

Toro 324-7

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

19

Toro 116-7327-01

PLATE-DOWNSTOP

$10.99

$

Usually ships in 3-6 days

0
