23518 - Toro 30" Stand-On Aerator (SN: 312000001 - 312999999) (2012) MAIN FRAME ASSEMBLY Parts Diagram

30" Stand-On Aerator

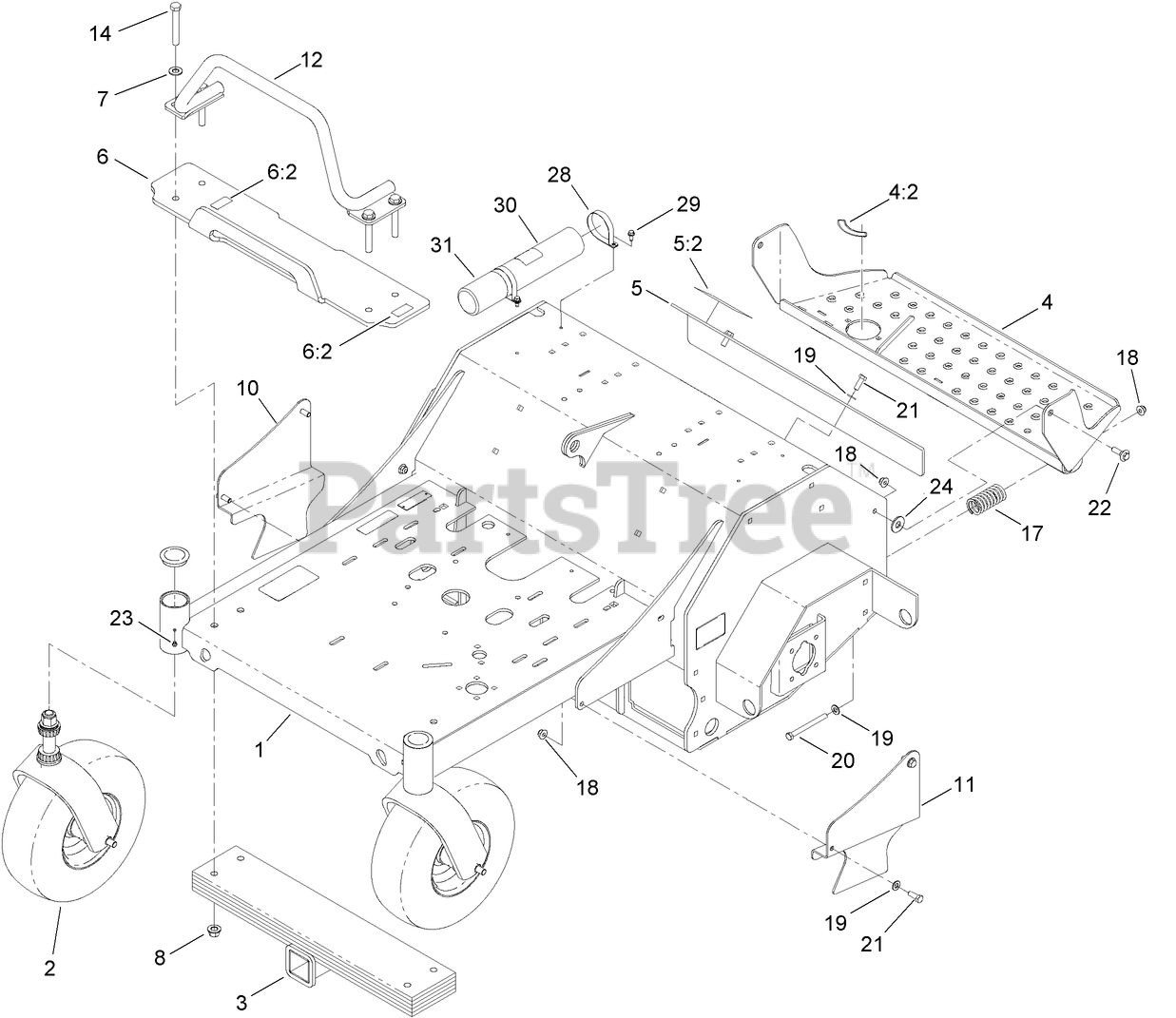

MAIN FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 116-7298

MAIN FRAME AND DECAL ASM

$2768.99

$

Usually ships in 3-6 days

0

2

FRONT CASTER AND FORK ASM

Note: Not serviced separately

$

$

Not available

3

Toro 116-6536-01

WEIGHT

$564.99

$

Usually ships in 3-6 days

0

4

Toro 116-6986

PLATFORM ASM

$

$

Not available

4:2

Toro 116-6460

DECAL-TINE GROUND ENGAGEMENT

$

$

Not available

5

Toro 116-7300

ACCESS COVER ASM

$130.99

$

Usually ships in 3-6 days

0

5:2

Toro 121-6163

DECAL-OPERATION, TINE GROUND (CE)

$8.49

$

Usually ships in 3-6 days

0

6

Toro 116-7299

WEIGHT MOUNT PLATE ASM

$

$

Not available

6:2

Toro 115-2047

DECAL-SURFACE, HOT

$17.99

$

In Stock, only 1 left!

0

7

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

10

Toro 116-6612-01

GUARD-CHAIN, RH

$61.99

$

In Stock, only 2 left!

0

11

Toro 116-6611-01

GUARD-CHAIN, LH

$61.99

$

In Stock, only 2 left!

0

12

Toro 116-6763-03

GUARD-MUFFLER

$

$

Not available

14

Toro 325-14

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

17

Toro 116-6767

SPRING-COMPRESSION

$14.99

$

Usually ships in 3-6 days

0

18

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 6

0

21

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

22

Toro 614672

SCREW-SHOULDER, HWH

$2.99

$

In Stock, only 4 left!

0

23

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 11

0

24

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 107-1865

R-Clamp

$11.99

$

Usually ships in 3-6 days

0

29

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

30

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

31

Toro 104-7048

CAP-HOUSING

$5.99

$

Usually ships in 3-6 days

0
