23518 - Toro 30" Stand-On Aerator (SN: 312000001 - 312999999) (2012) GROUND DRIVE ASSEMBLY Parts Diagram

30" Stand-On Aerator

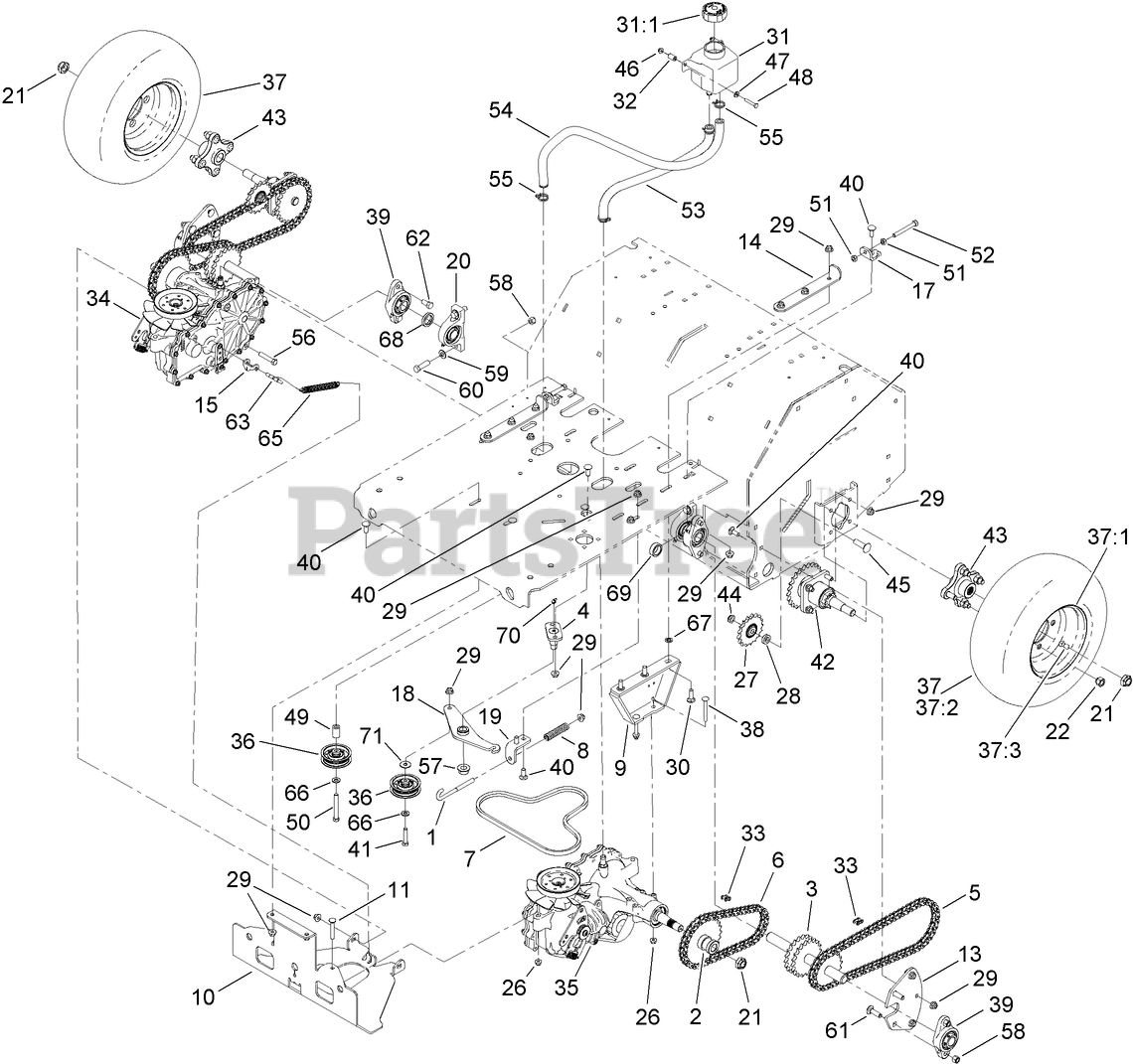

GROUND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 116-6740

HOOK-J

$15.99

$

Usually ships in 3-6 days

0

2

Toro 116-6624

HUB-CHAIN DRIVE

$198.99

$

In Stock, only 2 left!

0

3

Toro 116-6627

JACKSHAFT

$258.99

$

Usually ships in 3-6 days

0

4

Toro 116-6735-03

PIVOT-IDLER

$82.99

$

Usually ships in 3-6 days

0

5

Toro 116-6895

CHAIN-ROLLER, #50, 65 LINKS
(Superseded to 126-8808)

$206.99

$

In Stock, only 2 left!

0

6

Toro 116-6896

CHAIN-ROLLER #50, 47 PITCHES
(Superseded to 126-8807)

$165.99

$

In Stock, only 2 left!

0

7

Toro 1-653333

BELT-BLOWER

$33.99

$

In Stock, only 1 left!

0

8

Toro 116-6771

SPRING-COMPRESSION

$11.99

$

Usually ships in 3-6 days

0

9

Toro 116-6572-03

MOUNT-TRANSMISSION

$

$

Not available

10

Toro 116-7588-03

GUARD-TRANSMISSION

$232.99

$

Usually ships in 3-6 days

0

11

Toro 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

13

Toro 116-6596-01

PLATE-JACKSHAFT

$35.99

$

Usually ships in 3-6 days

0

14

Toro 116-6619

PLATE-ADJUSTMENT, TRANSMISSION

$23.99

$

In Stock, only 4 left!

0

15

Toro 116-7597

YOKE-BRAKE, PARK

$60.99

$

Usually ships in 3-6 days

0

17

Toro 116-6723

BRACKET-HYDRO, ADJUST

$21.99

$

In Stock, only 3 left!

0

18

Toro 116-6568

IDLER ARM ASM

$128.99

$

Usually ships in 3-6 days

0

19

Toro 116-6724

BRACKET-IDLER SPRING

$18.99

$

In Stock, only 1 left!

0

20

Toro 116-6756

BEARING-PILLOW BLOCK

$53.99

$

In Stock, only 3 left!

0

21

Toro 116-2839

NUT-LOCK

$11.99

$

In Stock, only 3 left!

0

22

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

26

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

27

Toro 116-6719

SPROCKET-IDLER, 17T
(Superseded to 126-9108)

$103.99

$

In Stock, only 2 left!

0

28

Toro 104-8417

WASHER

$9.49

$

In Stock, only 2 left!

0

29

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

30

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

31

Toro 109-2250

TANK-HYD

$66.99

$

In Stock, Qty 8

0

31:1

Toro 109-3320

CAP-RESERVOIR, HYD

$28.99

$

In Stock, only 1 left!

0

32

Toro 49-0390

SPACER

$7.99

$

Usually ships in 3-6 days

0

33

Toro 116-6897

LINK-CONNECTING

$7.99

$

In Stock, only 4 left!

0

34

Toro 116-6614

RH TRANSMISSION ASM

$2196.99

$

Usually ships in 3-6 days

0

35

Toro 116-6615

LH TRANSMISSION ASM

$2196.99

$

Usually ships in 3-6 days

0

36

Toro 116-6760

PULLEY-IDLER, FLAT

$41.99

$

Usually ships in 3-6 days

0

37

Toro 116-6932

TIRE ASM (16 X 6.50-8)

$195.99

$

In Stock, Qty 16

0

37:1

Toro 116-6977

RIM (8 x 5.375)

$90.99

$

Usually ships in 3-6 days

0

37:2

Toro 116-6978

TIRE

$120.99

$

Usually ships in 3-6 days

0

37:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

38

Toro 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 5

0

39

Toro 116-6777

BEARING-FLANGE, 2 BOLT

$45.99

$

In Stock, only 3 left!

0

40

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

41

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

42

Toro 116-7645

AXLE AND BEARING ASM
(Superseded to 116-9545)

$722.99

$

Usually ships in 3-6 days

0

43

Toro 116-3872

HUB-OFFSET

$69.99

$

In Stock, only 1 left!

0

44

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

45

Toro 3233-14

SCREW-CARR

$16.99

$

In Stock, Qty 8

0

46

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

47

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

48

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

49

Toro 116-7598

SPACER-IDLER

$13.99

$

Usually ships in 3-6 days

0

50

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

51

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

52

Toro 99-8664

SCREW-HH

$2.99

$

In Stock, Qty 5

0

53

Toro 116-6775

HOSE-HYDRAULIC

$19.99

$

Usually ships in 3-6 days

0

54

Toro 116-6776

HOSE-HYDRAULIC

$26.99

$

Usually ships in 3-6 days

0

55

Toro 109-3322

CLAMP-HOSE

$1.49

$

In Stock, Qty 9

0

56

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

57

Toro 109-7033

NUT-FLANGE, CENTERLOCK

$2.99

$

In Stock, Qty 20+

0

58

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

59

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

60

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

61

Toro 3232-3

BOLT-CARR

$3.49

$

In Stock, Qty 5

0

62

Toro 116-7109

SCREW-HH

$2.99

$

In Stock, only 2 left!

0

63

Toro 116-7596

PIN-BRAKE, PARK

$20.99

$

Usually ships in 3-6 days

0

65

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

66

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

67

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

68

Toro 116-7253

SPACER

$20.99

$

Usually ships in 3-6 days

0

69

Toro 116-7254

SPACER

$13.99

$

Usually ships in 3-6 days

0

70

Toro 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

71

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 13

0
